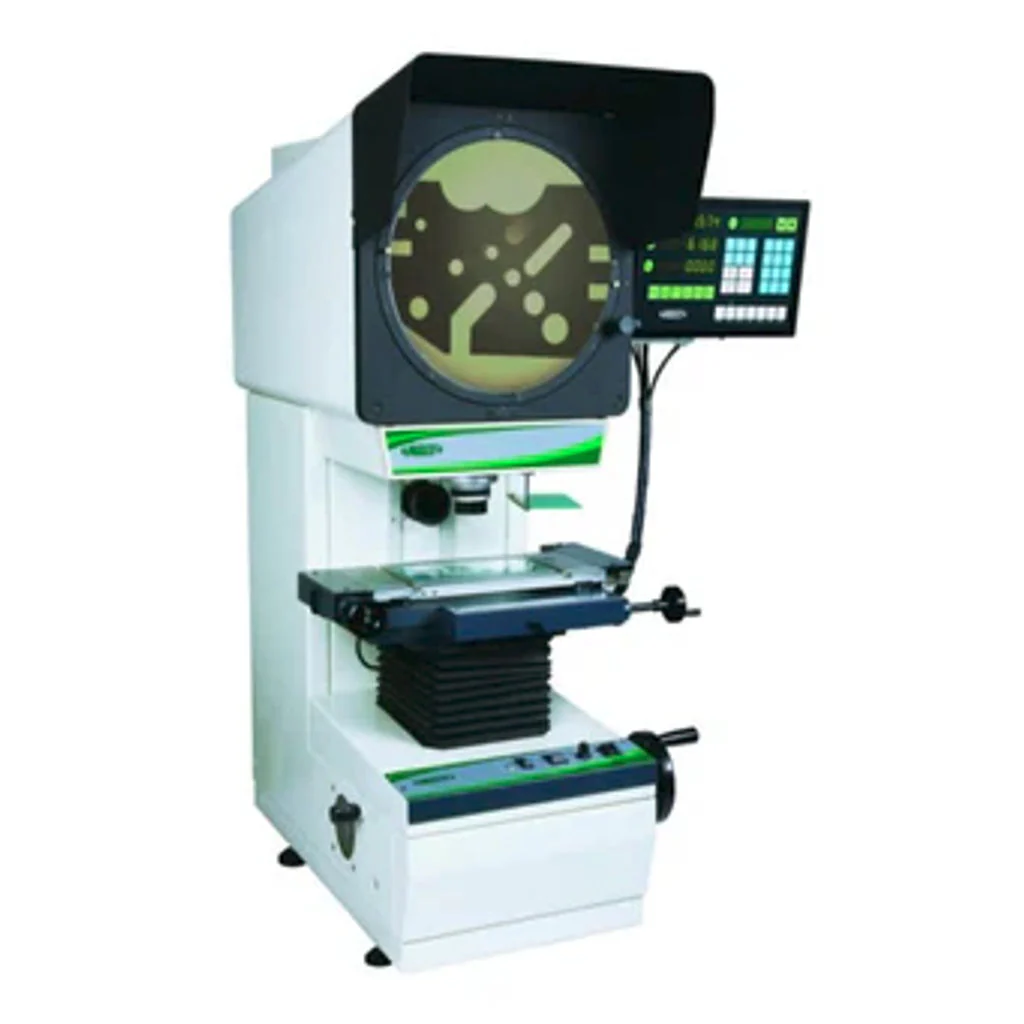

Insize Profile Projector ISP-Z3015
Product Specification
|
Brand |
Insize |
||||
|
Product Code |
ISP-Z3015 |
||||
|
Product Type |
Profile Projector |
||||
|
Lens |
Magnification |
10X(included) |
20X(optional) |
50X(optional) |
100X(optional) |
|
View Field |
Ø30 mm |
Ø15 mm |
Ø6 mm |
Ø3 mm |
|
|
Working Distance |
77.7 mm |
44.3 mm |
38.4 mm |
25.3 mm |
|
|
Max. Workpiece Accuracy |
90 mm |
||||
|
Magnification Accuracy |
±0.08% |
||||
|
Image |
Erect image |
||||
|
Projector Screen |
Diameter: Ø300 mm |
||||
|
Rotation Range: 0°~360°,resolution: 1 inch or 0.01° |
|||||
|
Reference Lines: cross-hairs |
|||||
|
Stage |
Metal Stage Size |
340 x 152mm |
|||
|
Glass Stage Size |
196 x 96mm |
||||
|
X-Y Stage Size |
Range: 150 x 50 mm |
||||
|
Resolution: 0.5μm |
|||||
|
Z(focus)travel range |
90mm |
||||
|
Max.load Capacity |
4kg |
||||
|
Illumination |
Contour illumination: 24V/150 W halogen lamp, brightness is adjustable |
||||
|
Surface illumination: 24V/150 W halogen lamp |
|||||
|
Data Processing Unit |
Display |
X-Y stage travel,screen rotation |
|||
|
output |
RS232C |
||||
|
Function |
Measure coordinate of point |
||||
|
Measure coordinate of line |
|||||
|
Measure center coordinate,radius of circle with three points |
|||||
|
Measure distance between two objects |
|||||
|
Measure angle with four points or two lines |
|||||
|
Set origin of coordinate |
|||||
|
Coordinate transform |
|||||
|
Set midpoint of coordinate |
|||||
|
Power Supply |
110/220V,50/60 Hz |
||||
|
Dimension(L x W x H) |
550 x 770 x 1100 mm |
||||
|
Weight |
135 kg |
||||
|
Warranty |
As Per Manufacturer Terms And Conditions |
||||
