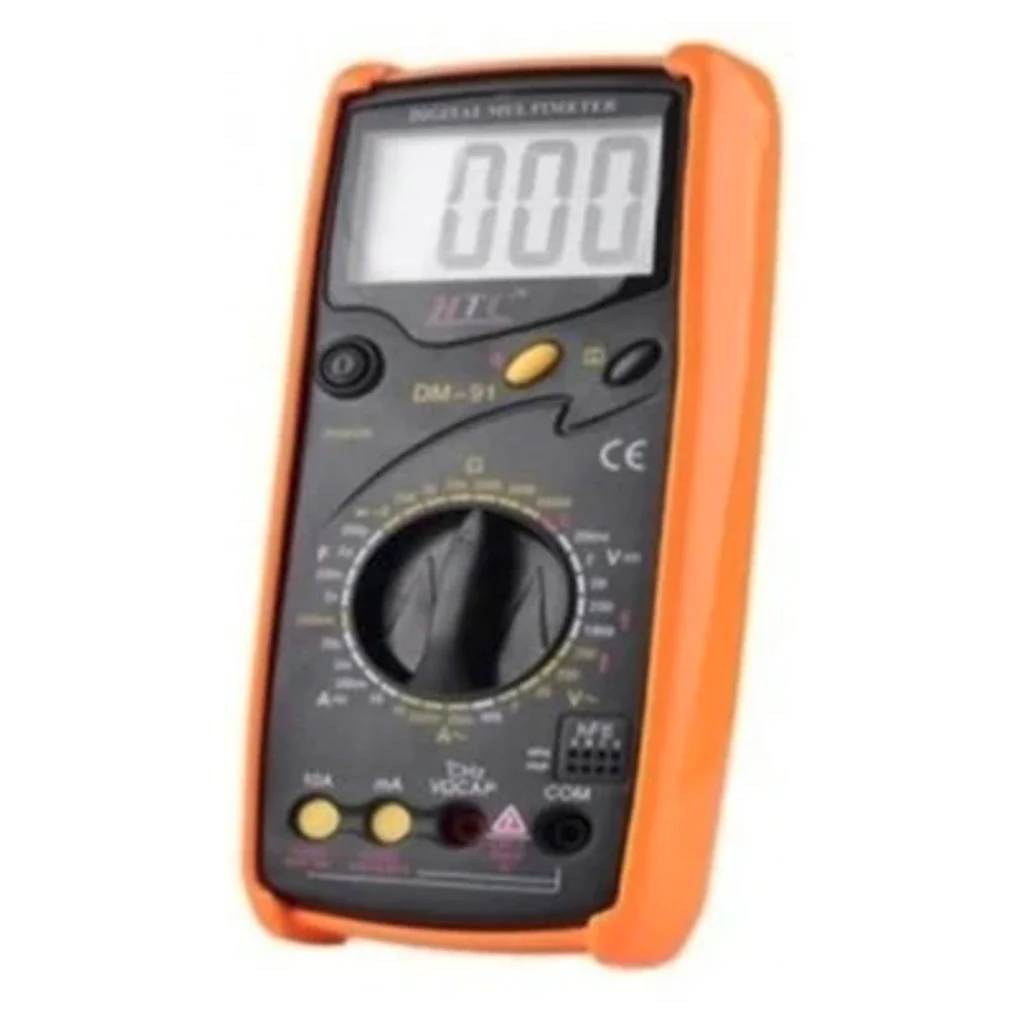

HTC Terminal Inter Lock Digital Multimeter DM – 91

Brand

HTC

Product Code

DM-91

Product Type

Terminal Inter Lock Digital Multimeter

Model No

HTC-A8

DC Voltage Range

200mV - 1000 V

DC Voltage Accuracy

±(0.8% +3d)

AC Voltage Range

0 to 700 V

AC Voltage Accuracy

±(1.2%+5d)

DC Current Range

20µA - 10 A

DC Current Accuracy

±(1.5% + 5d)

AC Current Range

20mA - 10 A

AC Current Accuracy

±(2.0% + 5d)

Resistance Range

0-200 MΩ

Resistance Accuracy

±(1% + 5d)

Capacitance Range

2nF - 200 µF

Capacitance Accuracy

±(5% + 3d)

Frequency Range

0-200 KHz

Frequency Accuracy

±(1.5% + 10d)

Temperature Range

-20° - 1000°C

Temperature Accuracy

±(1.0% + 3)

Continuity Buzzer

Approx. < 70 Ω

Power Input

9V (6F22) battery

Dimension

185x93x35 mm

Warranty

As Per Manufacturer Terms And Condition
