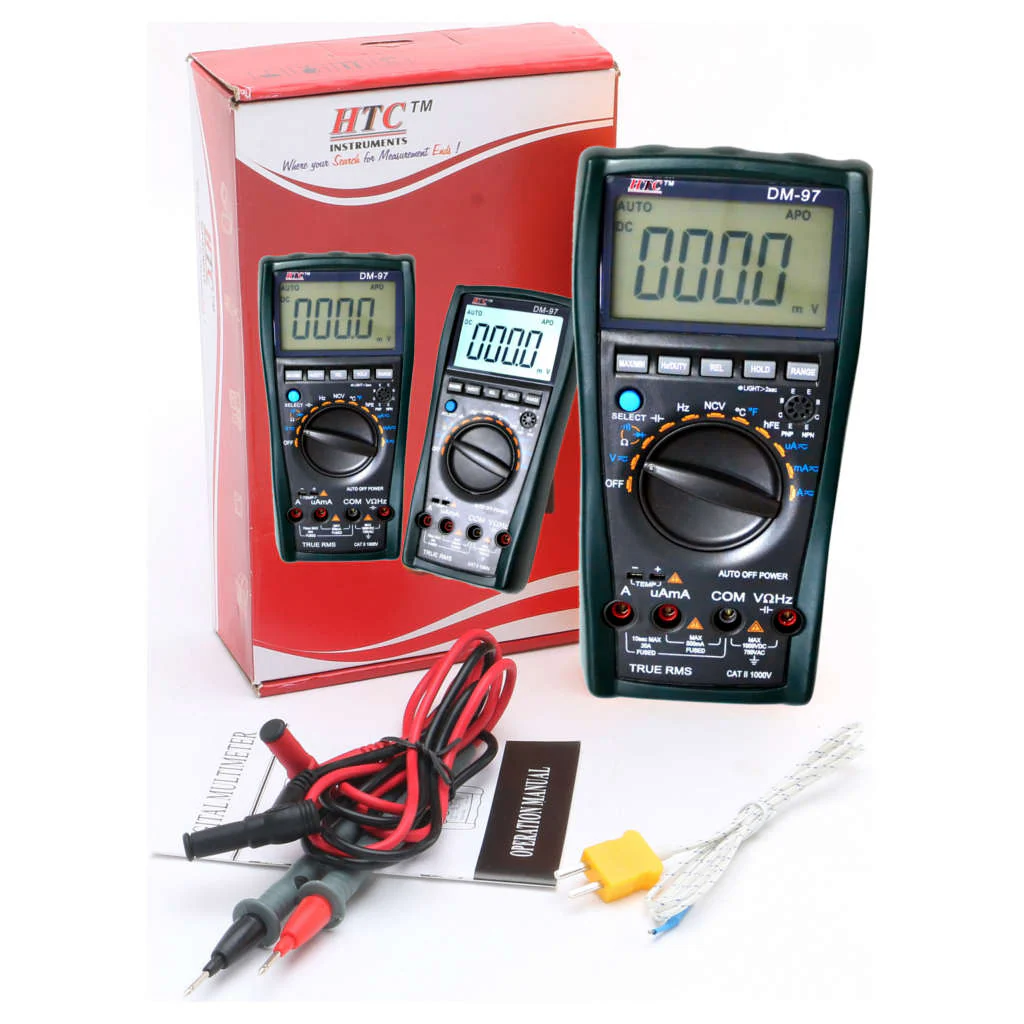

HTC Digital Multimeter With Temp/TRms DM – 97
Product Description
-
3¾ Digital Multimeter
-
4000 CountsLarge LCD Display with Auto/Manual Range
-
No Power-OFF under natural operation
-
Data Hold, Max. / Min. Value Hold
-
Capacitance, Frequency / Duty Cycle,
-
Temperature and Transistor Test
-
Standard Accessories: Test Leads, Holster, Manual, TP 01 Temperature Probe Bead type
Product Specification
|
Brand |
HTC |
|
Product Code |
DM-97 |
|
Product Type |
Digital Multimeter With Temp/TRms |
|
Model No |
HTC-A10 |
|
DC Voltage Range |
0.1mV ~ 1000V |
|
DC Voltage Accuracy |
±(0.5% + 4digit) |
|
AC Voltage Range |
0.1mV ~ 750V |
|
AC Voltage Accuracy |
±(0.8%+ 6digit) |
|
DC Current Range |
0.1uA ~ 20A |
|
DC Current Accuracy |
±(1.0% + 5digit) |
|
AC Current Range |
0.1uA ~ 20A |
|
AC Current Accuracy |
±(1.5% + 5digit) |
|
Resistance Range |
0.1Ω ~ 40MΩ |
|
Resistance Accuracy |
±(0.8% + 2digit) |
|
Capacitance Range |
10pF ~ 200uF |
|
Capacitance Accuracy |
±(3.5% + 8digit) |
|
Frequency Range |
0.1Hz ~ 30MHz |
|
Frequency Accuracy |
±(0.5% + 4digit) |
|
Celsius Range |
-40oC～1000oC |
|
Celsius Accuracy |
±(0.8% + 4digit) |
|
hhFE (NPN or PNP) |
0 ~ 1000 |
|
Input impedance |
10MΩ |
|
Continuity Buzzer |
Lower 30Ω +10Ω |
|
Low Battery Display |
Lower 2.4V |
|
Auto Power OFF |
Approx. 30 min. |
|
Sampling Rate |
3 times per second |
|
AC Frequency Response |
40-400Hz |
|
Power |
F3V AAA |
|
Dimension |
185(H) x 93(W) x 35(D)mm |
|
Warranty |
As Per Manufacturer Terms And Condition |
