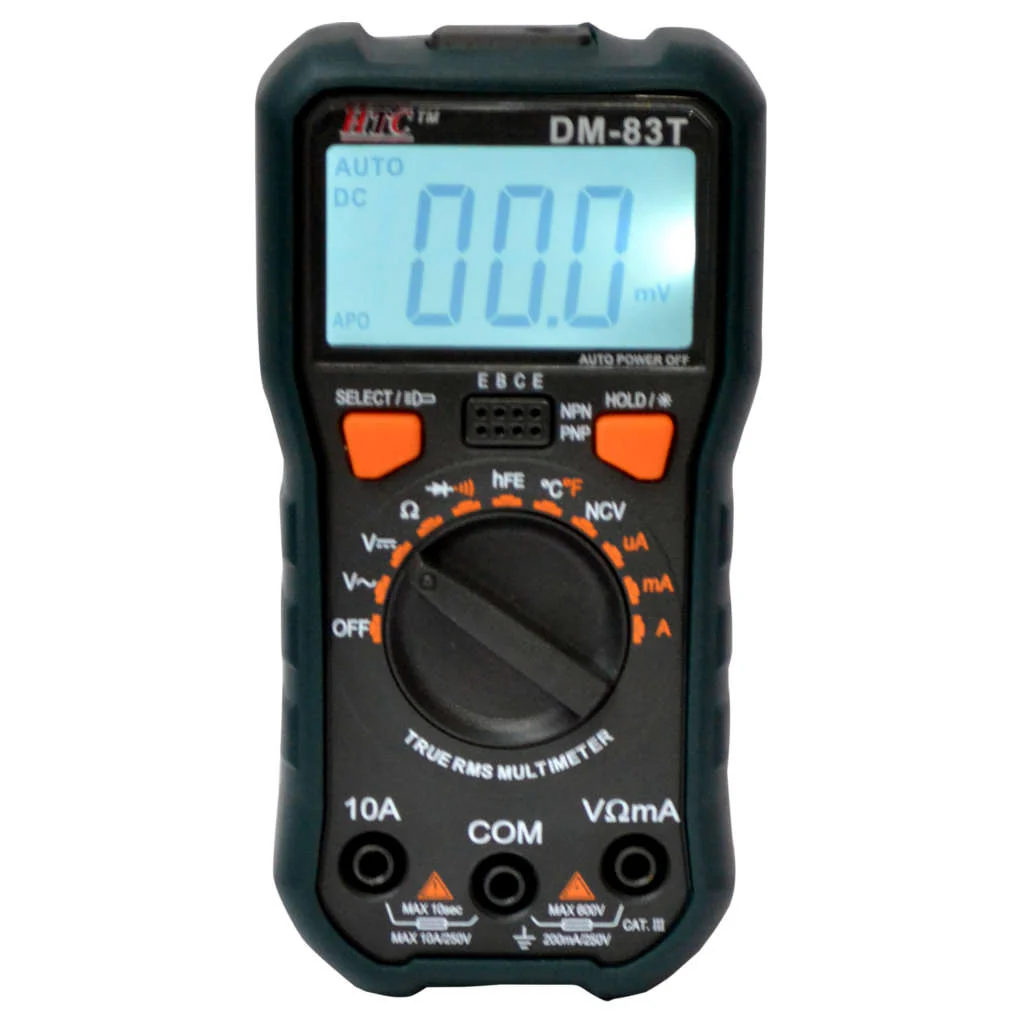

HTC Digital Multimeter DM-83T
Product Description
-
3½ Digit Multimeter with Backlight
-
1999 Count
-
Torch Function
-
NCV
-
True RMS
-
hFE test
-
Power: AAA 1.5V X 2
Product Specification
|
Brand |
HTC |
||
|
Product Model |
DM-83T |
||
|
Product Type |
Digital Multimeter |
||
|
Display |
3½ |
||
|
DC Voltage |
Range |
Resolution |
Accuracy |
|
200mV 2V 20V 200V |
0.1mV 1mV 10mV 100mV |
±1.0% of rdg + 4 digits |
|
|
600V |
1V |
±1.0% of rdg + 4 digits |
|
|
AC Voltage |
2V 20V |
1mV |
±0.8% of rdg + 6 digits |
|
200V 600V |
10mV |
±1.0% of rdg + 6 digits |
|
|
DC Current |
200uA 2000uA 20mA 200mA 2A |
0.1µA 1µA 10µA 100µA 1mA |
±1.0% of rdg + 5 digits |
|
10A |
10mA |
±2.0% of rdg + 5 digits |
|
|
AC Current |
200uA 2000uA 20mA 200mA 2A |
0.1µA 1µA 10µA 100µA 1mA |
±1.5% of rdg + 5 digits |
|
10A |
10mA |
±2.0% of rdg + 10 digits |
|
|
Resistance |
200Ω 2kΩ 20kΩ 200kΩ 2MΩ |
0.1Ω 1Ω 10Ω 100Ω 1KΩ |
±0.8% of rdg + 1 digits |
|
20MΩ |
10KΩ |
±1.2% of rdg + 5 digits |
|
|
Power |
AAA 1.5V x 2 |
||
|
Temperature |
Range |
Resolution |
Accuracy |
|
40~1000°C |
1°C |
<400°C±1.0% of rdg + 5 digits ≥400°C±1.5% of rdg + 15 digits |
|
|
0~1832°F |
1°F |
<750°F±1.0% of rdg + 5 digits ≥750°F±1.5% of rdg + 15 digits |
|
|
Dimension |
140(H) x 72(W) x 37(D)mm |
||
|
Warranty |
As Per Manufacturer Terms And Condition |
||
