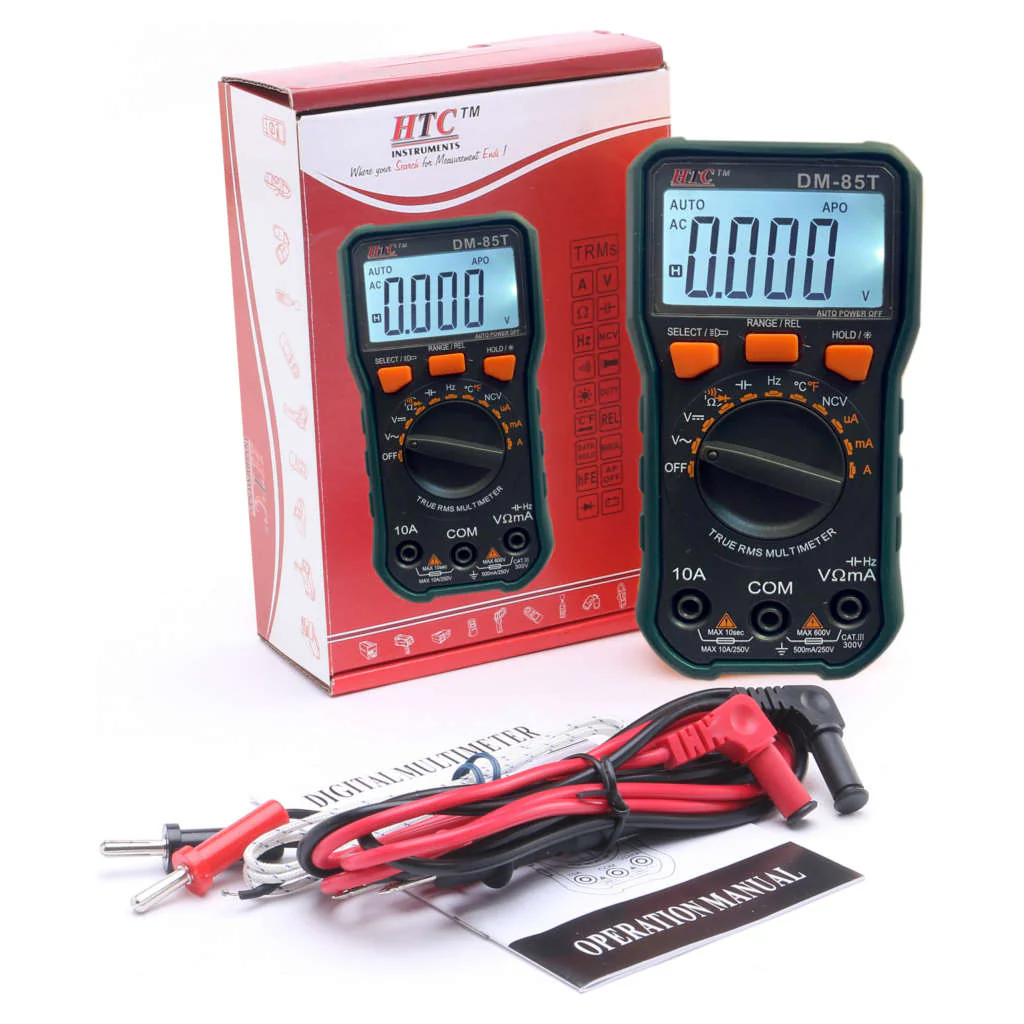

HTC Digital Multimeter 6000 Count DM-85T
Product Description
-
3⅚ Digit Multimeter with Backlight
-
True RMS
-
6000 Count
-
hFE test
-
Torch Function
-
Duty cycle test
-
NCV
-
AAA 1.5V X 2
Product Specification
|
Brand |
HTC |
||
|
Product Model |
DM-85T |
||
|
Product Type |
Digital Multimeter |
||
|
Display |
3⅚ |
||
|
DC Voltage |
Range |
Resolution |
Accuracy |
|
600mV 6V 60V 600V |
0.1mV 1mV 10mV 100mV |
±1.0% of rdg + 4 digits |
|
|
AC Voltage |
6V 60V |
1mV 10mV |
±0.8% of rdg + 6 digits |
|
600V |
100mV |
±1.0% of rdg + 6 digits |
|
|
DC Current |
600uA 6000uA 60mA 600mA 6A |
0.1µA 1µA 10µA 100µA 1mA |
±1.0% of rdg + 5 digits |
|
10A |
10mA |
±2.0% of rdg + 10 digits |
|
|
AC Current |
600uA 6000uA 60mA 600mA |
0.1µA 1µA 10µA 100µA |
±1.5% of rdg + 5 digits |
|
10A |
10mA |
±2.0% of rdg + 10 digits |
|
|
Resistance |
600Ω |
0.1Ω |
±0.8% of rdg + 5 digits |
|
600Ω 6kΩ 60kΩ 600kΩ 6MΩ |
0.1Ω 1Ω 10Ω 100Ω 1KΩ |
±0.8% of rdg + 1 digits |
|
|
60MΩ |
10KΩ |
±1.2% of rdg + 5 digits |
|
|
Capacitance |
60nF |
10pF |
±2.5% of rdg + 6 digits |
|
600nF 6µF 60µF |
100pF 1pF 10nF |
±2.5% of rdg + 5 digits |
|
|
600µF |
100nF |
||
|
6mF 60mF |
1µF 10µF |
±5.0% of rdg + 8 digits |
|
|
Frequency |
10Hz |
0.01Hz |
±0.5% of rdg + 4 digits |
|
100Hz |
0.001kHz |
||
|
1kHz |
1Hz |
||
|
10kHz |
10Hz |
||
|
100kHz |
100Hz |
||
|
1mHz |
1kHz |
||
|
10mHz |
10kHz |
||
|
Power |
AAA 1.5V x 2 |
||
|
Temperature |
Range |
Resolution |
Accuracy |
|
40~1000°C |
1°C |
<400°C±1.0% of rdg + 5 digits ≥400°C±1.5% of rdg + 15 digits |
|
|
0~1832°F |
1°F |
<750°F±1.0% of rdg + 5 digits ≥750°F±1.5% of rdg + 15 digits |
|
|
Dimension |
140(H) x 72(W) x 37(D)mm |
||
|
Warranty |
As Per Manufacturer Terms And Condition |
||
