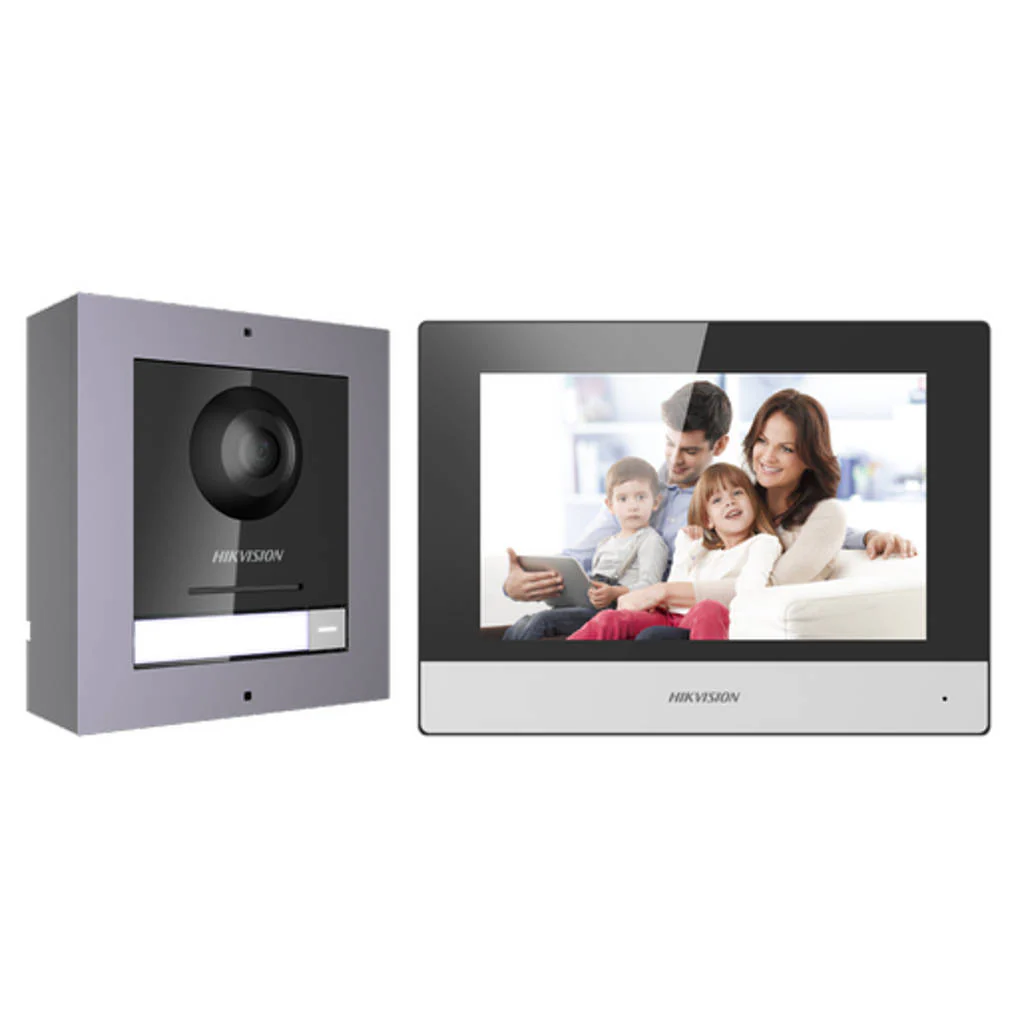

Hikvision Video Intercom Kit DS-KIS602
Product Description
-
Indoor Station
-
UI V2.0: User friendly design
-
7-inch colorful touch screen with resolution 1024 × 600
-
Standard PoE
-
Stores messages and captured pictures in the TF card
-
Remote unlocking via the client software or the mobile client
-
Views live videos of door stations and linked cameras
-
Supports wireless network
-

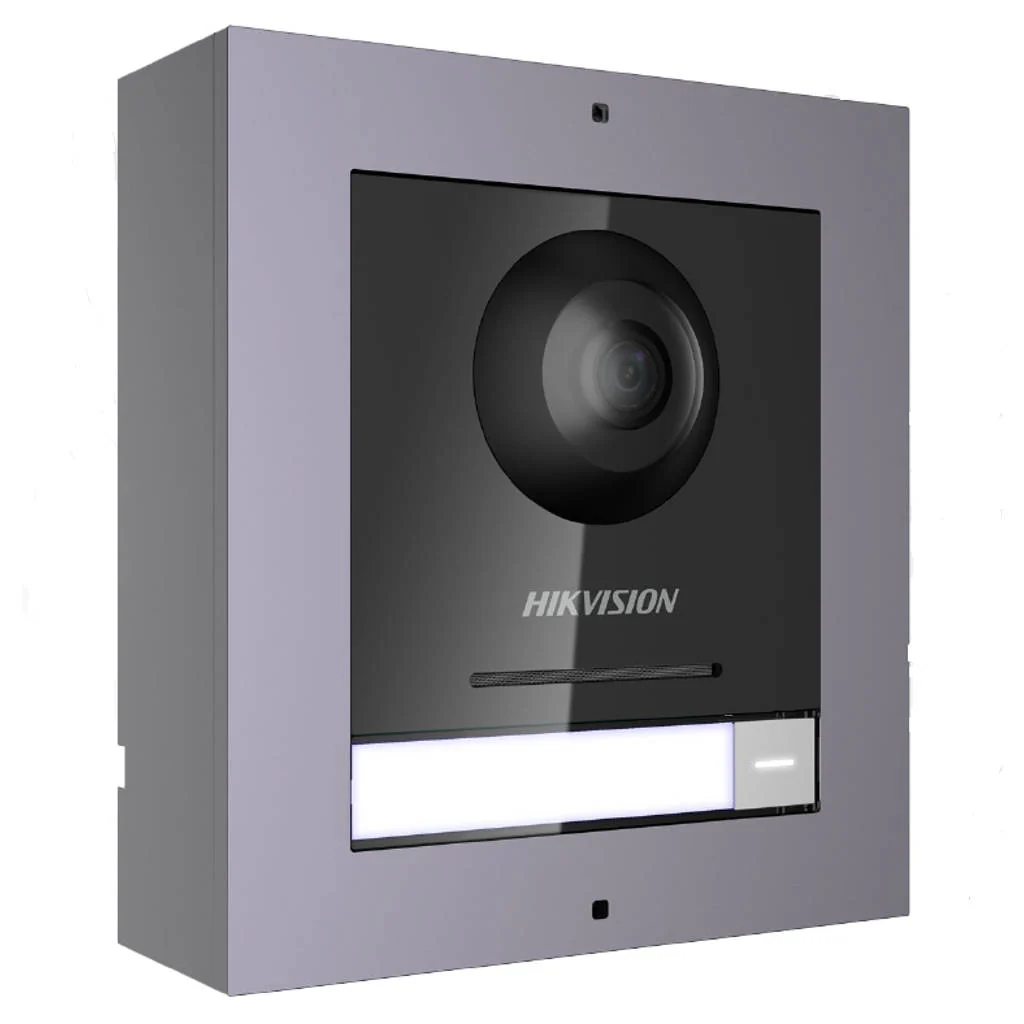

Door Station
-
2 MP HD video intercom function
-
Access control function
-
Noise suppression and echo cancellation
-
H.264 video compression
-
Low illumination
-
Tampering alarm
-
Fisheye camera with IR supplement light
-
Supports sub-modules'access (max. 8)
-
Nametag customization
-
Easy to and extend
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Video Intercom |
|
Product Code |
DS-KIS602 |
|
Indoor Station |
|
|
Model |
DS-KH6320-WTE1 |
|
Memory |
128 MB |
|
Flash |
32 MB |
|
Operation System |
Embedded Linux operation system |
|
Display Screen |
7-inch colorful TFT LCD |
|
Display Resloution |
1024 × 600 |
|
Operation Method |
Capacitive touch screen |
|
Audio Input |
Built-in omnidirectional microphone |
|
Audio Output |
Built-in loudspeaker |
|
Audio Compression Standard |
G.711 U |
|
Audio Compression Rate |
64 Kbps |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Wired Network |
10/100 Mbps self-adaptive network |
|
Wireless Network |
Wi-Fi 802.11b/g/n |
|
Network Protocol |
TCP/IP、SIP、RTSP |
|
Network Interface |
1 RJ-45 10/100 Mbps self-adaptive |
|
Alarm Input |
8-ch alarm inputs |
|
Relay Output |
2 |
|
Tf Card |
Max to 32 G, SD 2.0 or lower version |
|
Rs-485 |
1 |
|
Power Supply |
IEEE802.3af, standard PoE 12 VDC/1 A |
|
Power Consumption |
≤ 6 W |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimensions (w × H × D) |
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
|
Indoor Station |
|
|
Model |
DS-KH6320-WTE1 |
|
Processor |
Embedded MCU Processor |
|
Operation System |
Embedded Linux operation system |
|
Operation Method |
Physical button |
|
Video Compression Standard |
H.264 |
|
Resolution |
Main Stream: 1920 × 1080 Sub Stream: 720 × 480 |
|
Blc |
Supported |
|
Dnr |
Supported |
|
Wdr |
Supported |
|
Anti-Flicker |
50 Hz, 60 Hz |
|
Field Of View |
Horizontal : 180° Vertical : 96° |
|
Audio Input |
Built-in omnidirectional microphone |
|
Audio Output |
Built-in omnidirectional (more than 85 dB within 20 cm) |
|
Audio Compression Standard |
G.711 U |
|
Audio Compression Rate |
64 Kbps |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Light Supplement Mode |
IR supplement |
|
Ethernet |
10/100 Mbps self-adaptive Ethernet |
|
Network Protocol |
TCP/IP, RTSP |
|
Tampering Alarm |
1 |
|
Module-Connecting |
1 |
|
I/O Input |
4 |
|
Debug |
1 |
|
Relay |
2 (30 V, 1 A) |
|
Physical Button |
1 |
|
Power Supply |
12 VDC/PoE ( IEEE 802.3af) |
|
Power Consumption |
≤10 W |
|
Working Temperature |
- 40 °C to 60 °C (- 40 °F to 140 °F) |
|
Working Humidity |
10% to 95% |
|
Ip Protection Level |
IP65 |
|
Installation |
Flush mounting, surface mounting |
|
Dimensions (w × H × D) |
98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73") |
|
Warranty |
As Per Manufacturer Terms And Condition |
Original: $290.35
-70%$290.35
$87.11
