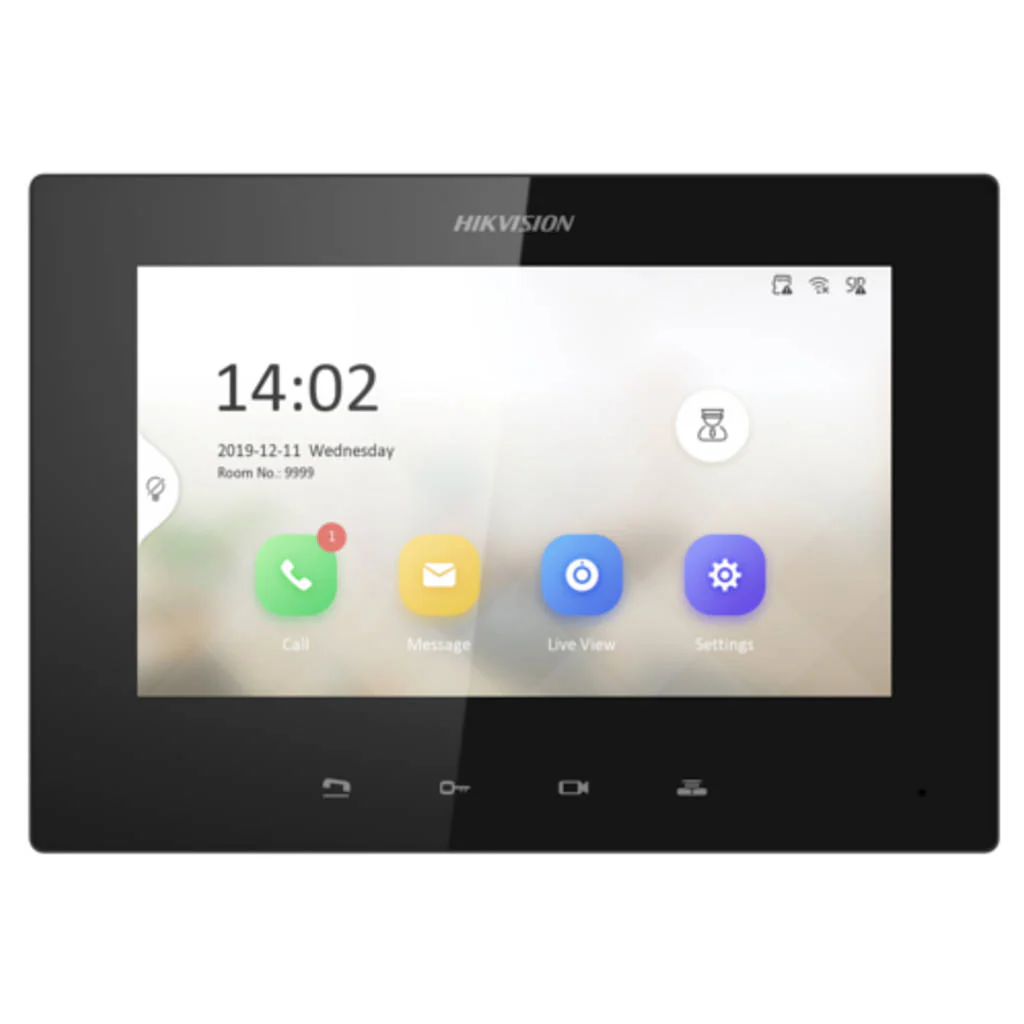

Hikvision Value Series Video Intercom Network Indoor Station DS-KH6220-LE1
Product Description
-
Standard PoE
-
7-inch colorful non-touch screen with resolution 1024 × 600
-
Views live video of door stations and linked cameras
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Video Intercom |
|
Product Code |
DS-KH6220-LE1 |
|
Series |
Value |
|
System Parameters |
|
|
Operation System |
Embedded RTOS operation system |
|
Flash |
16 MB |
|
Ram |
64 MB |
|
Cpu |
Embedded processor |
|
Display Parameters |
|
|
Size |
7-inch |
|
Operation Method |
Physical botton |
|
Type |
TFT LCD |
|
Resolution |
1024 × 600 |
|
Video Parameters |
|
|
Video Compression Standard |
/ |
|
Lens |
/ |
|
Fov |
/ |
|
Wdr |
/ |
|
Pixel |
/ |
|
Focal Length |
/ |
|
Audio Parameters |
|
|
Audio Input |
Built-in omnidirectional microphone |
|
Audio Compression Standard |
G.711 U |
|
Audio Output |
Built-in loudspeaker |
|
Audio Compression Bitrate |
64 Kbps |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Volume Adjustment |
Adjustable |
|
Capacity |
|
|
Linked Ipc |
16 |
|
Linked Indoor Extensions |
5 |
|
Notices |
200 |
|
Linked Doorphone |
8 |
|
Network Parameters |
|
|
Communication Protocol |
TCP/IP, RTSP |
|
Wired Network |
Support |
|
Wi-Fi |
/ |
|
Bluetooth |
/ |
|
3g/4g |
/ |
|
Zigbee |
/ |
|
Device Interfaces |
|
|
Alarm Input |
8 |
|
Tamper |
/ |
|
Network Interface |
1 RJ-45 10/100 Mbps self-adaptive |
|
Rs-485 |
/ |
|
Usb |
/ |
|
Tf Card |
/ |
|
Alarm Output |
/ |
|
Power Interface |
1 |
|
General |
|
|
Button |
4 |
|
Installation |
Flush mounting, surface mounting |
|
Indicator |
/ |
|
Protective Level |
/ |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimensions |
200 mm × 140 mm × 23.1 mm (7.87" ×5.51" × 0.69") |
|
Battery |
/ |
|
Power Supply |
IEEE802.3af, standard PoE 12 VDC, 1 A |
|
Application Environment |
Indoor |
|
Power Consumption |
≤ 6 W |
|
Weight |
With package: 683 g Without package:355 g |
|
Warranty |
As Per Manufacturer Terms And Condition |
Original: $72.18
-70%$72.18
$21.65
