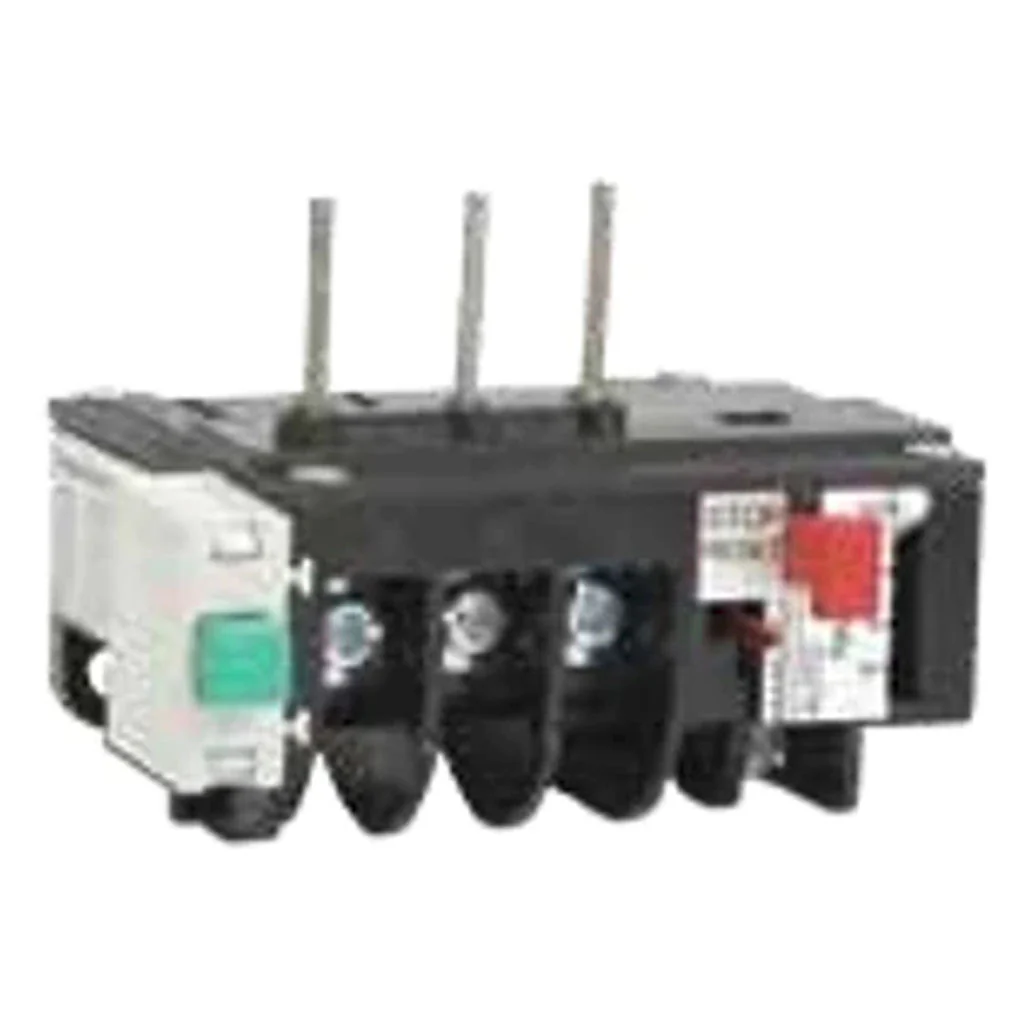

Havells Thermal Overload Relay A/M 3 Pole Frame1
Product Description
-
Inbuilit single phasing preventor
-
Fast Response Time
-
Protection against overload & single phasing
-
Auto / Manual Reset Facility
-
Ambient temperature compensated
-
Potential free trip contacts
-
Test mode facility
-
*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Havells |
|
Product Type |
Overload Relay |
|
Product Code | Type | Relay Range(A) |
IHAR13CE | UR1 E | 1.07-1.7 A IHAR13CF | UR1 F | 1.58-2.5 A IHAR13CG | UR1 G | 2.4-3.8 A IHAR13CH | UR1 H | 3.8-6.0 A IHAR13CJ | UR1 J | 6-9.3 A IHAR13CK | UR1 K | 8.9-13.5 A IHAR13CL | UR1 L | 13.2-20 A IHAR13CM | UR1 M | 17.4-24 A IHAR13CN | UR1 N | 22-30 A |
|
Suitable For Contactor Frame Size |
1 |
|
Power Poles |
3 |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $20.13
-70%$20.13
$6.04
