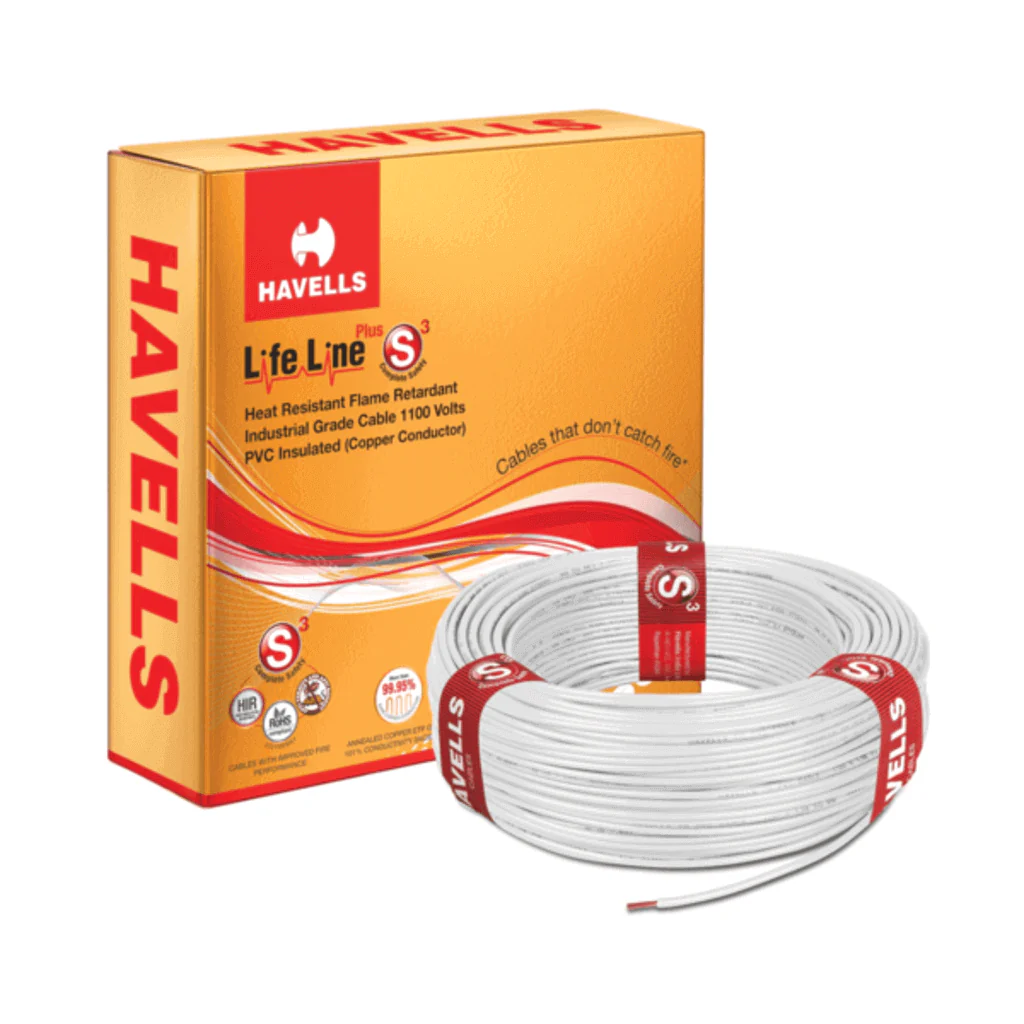

Havells Life Line Plus S3 Single Core Heat Resistant Flame Retardant PVC Insulated Industrial Cables – 90 meters

Product Description

• High Insulation Resistance

• In all cables, there is generally leakage of current from the live conductor through the insulation

• In case of inferior quality of insulation, the current leakage increases

• This is unsafe and can cause damage to installations as well as become a threat to life

• Low Leakage Current

• Havells wires have an allowable current-leakage limit that is 50 times lower than the prescribed international safety norms

• International safety standards specifies that current leakage limit in hand held equipment is considered to be safe if the value is not more than 0.75 mA

• Havells cables, with S3 technology, incorporate insulation of high quality which ensures that current leakage level is as low as 0.01 mA, which is much below the prescribed limit

• Safety from electrical shocks Electric shock occurs when a body-part comes in contact with a bare conductor of poor insulated wire

• Higher insulation resistance protects against electric shock

• ROHS Compliant

• Release of certain harmful substances such as lead, mercury, cadmium and chromium etc. in the plastics/equipment are dangerous to the environment and health

• European Union has adopted a directive on the restriction of the use of certain hazardous substances in electrical and electronics equipment commonly referred to as Restriction of Hazardous Substances directive or RoH

• Havells cables with S3 technology are certified by Bureau Veritas for RoHS compliance as per directive 2006/95/EC

• This ensures that release of hazardous substances are eliminated to provide safety for human health and to give us green environment

• An initiative for eco friendly environment by Havells.

• Anti Termite & Anti Rodent

• Termites and rodents cause extensive damage to paper, wood, plastic etc

• In case of electrical installation, damaged caused by above pests may lead to short circuit which can become a cause for a major disaster, loss of property and human life

• Havells cables with S3 technology provide insulation with termite and rodent repulsion properties

• Certification regarding the above has been obtained from the Central Power and Research Institute (CPRI)

• Features

• 100% copper conductivity

• EXtra protection against: (Fire/Overload/Low Voltage/Atmospheric Changes)

• Specially formulated PVC compound for better insulation

• Tested for strict parameters

• Best packaging in the industry

• Application

• Energy Cables for Internal electrification and power Supply to all electrical operated equipments (eg. Fans/Lights/ Appliances etc).

Product Specification

Brand	Havells
Product Type	Industrial Cables
Model | Nominal Area (Sq.mm) | Colour	WHFFDNRA1X50 | 0.5 | Red WHFFDNRA1X75 | 0.75 | Red WHFFDNRA11X0 | 1 | Red WHFFDNRA11X5 | 1.5 | Red WHFFDNRA12X5 | 2.5 | Red WHFFDNRA14X0 | 4 | Red WHFFDNRA16X0 | 6 | Red WHFFDNYA1X50 | 0.5 | Yellow WHFFDNYA1X75 | 0.75 | Yellow WHFFDNYA11X0 | 1 | Yellow WHFFDNYA11X5 | 1.5 | Yellow WHFFDNYA12X5 | 2.5 | Yellow WHFFDNYA14X0 | 4 | Yellow WHFFDNYA16X0 | 6 | Yellow WHFFDNBA1X50 | 0.5 | Blue WHFFDNBA1X75 | 0.75 | Blue WHFFDNBA11X0 | 1 | Blue WHFFDNBA11X5 | 1.5 | Blue WHFFDNBA12X5 | 2.5 | Blue WHFFDNBA14X0 | 4 | Blue WHFFDNBA16X0 | 6 | Blue WHFFDNKA1X50 | 0.5 | Black WHFFDNKA1X75 | 0.75 | Black WHFFDNKA11X0 | 1 | Black WHFFDNKA11X5 | 1.5 | Black WHFFDNKA12X5 | 2.5 | Black WHFFDNKA14X0 | 4 | Black WHFFDNKA16X0 | 6 | Black WHFFDNGA1X50 | 0.5 | Green WHFFDNGA1X75 | 0.75 | Green WHFFDNGA11X0 | 1 | Green WHFFDNGA11X5 | 1.5 | Green WHFFDNGA12X5 | 2.5 | Green WHFFDNGA14X0 | 4 | Green WHFFDNGA16X0 | 6 | Green WHFFDNWA1X50 | 0.5 | White WHFFDNWA1X75 | 0.75 | White WHFFDNWA11X0 | 1 | White WHFFDNWA11X5 | 1.5 | White WHFFDNWA12X5 | 2.5 | White WHFFDNWA14X0 | 4 | White WHFFDNWA16X0 | 6 | White
Series	Life Line Plus S3
Cable Length	90 Meter
Core Type	Single
Warranty	As Per Manufacturer Terms and Condition
