Havells HGSM Series Motor Protection Circuit Breaker
Product Description
-
Insulation Volatge Ui: 690 V
-
Impulse withstand voltage: 6 kV
-
Rated frequency: 50 Hz / 60 Hz
-
Magnetic tripping: 13 In max
-
Tripping class: 10 A
-
Mechanical Life: 100000 cyles
-
Electrical Life: 100000 cycles
-

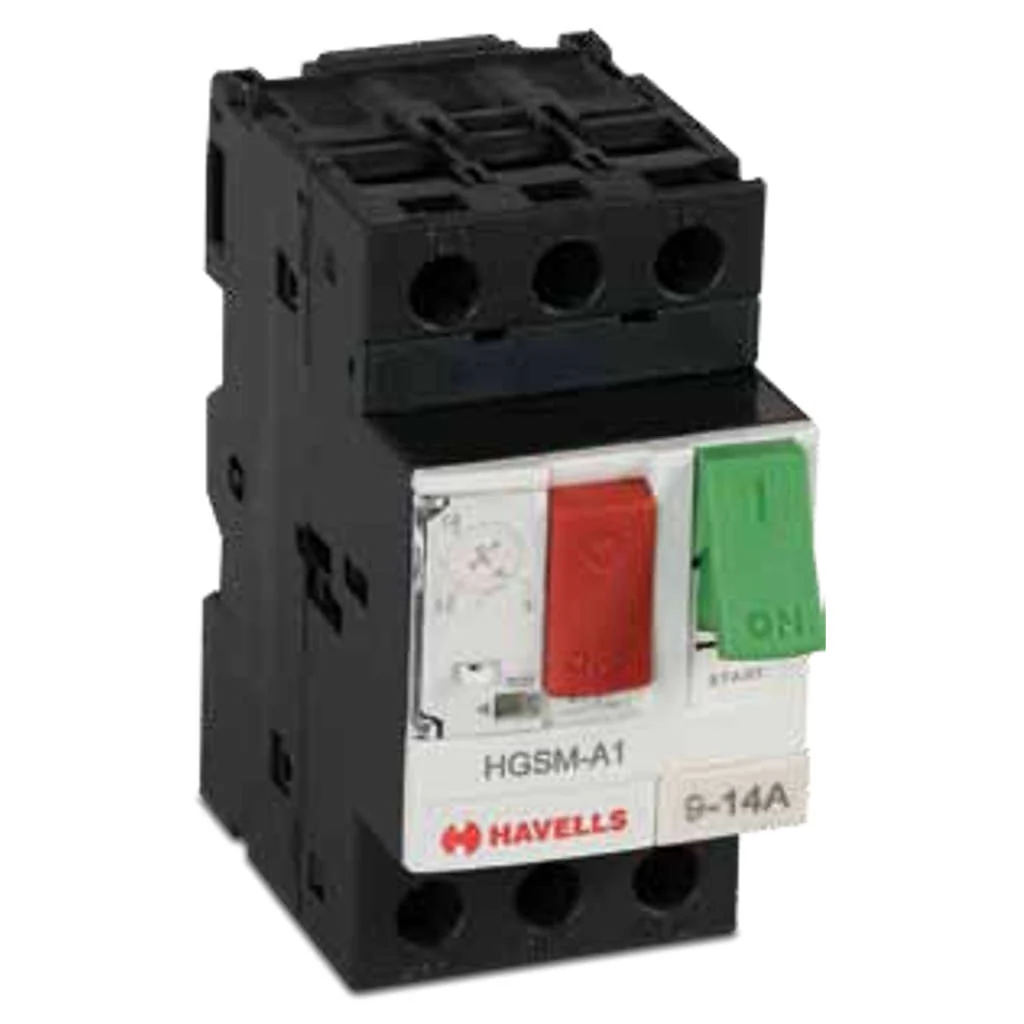

*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Havells |
|
Product Type |
Motor Protection Circuit Breaker |
|
Product Code | Rating |
IHHMPBA2A0 | 0.1A-0.16A 100 kA IHHMPBB2B0 | 0.16A-0.25A 100 kA IHHMPBC2D0 | 0.25A-0.4A 100 kA IHHMPBD2E0 | 0.4A-0.63A 100 kA IHHMPBE2F0 | 0.63A-1A 100 kA IHHMPBF2G0 | 1A-1.6A 100 kA IHHMPBG2R0 | 1.6A-2.5A 100 kA IHHMPBH2I0 | 2.5A-4A 100 kA IHHMPBJ2J0 | 4A-6.3A 100 kA IHHMPBK2K0 | 6.3A-10A 100 kA IHHMPBL2L0 | 9 A-14A 15 kA IHHMPBN2M0 | 13A-18A 15 kA IHHMPBQ2T0 | 17A-23A 15 kA IHHMPBS2N0 | 20A-25A 15 kA IHHMPBT2P0 | 24A-32A 10 kA |
|
Series |
HGSM |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $28.03
-70%$28.03
$8.41
Description
Product Description
-
Insulation Volatge Ui: 690 V
-
Impulse withstand voltage: 6 kV
-
Rated frequency: 50 Hz / 60 Hz
-
Magnetic tripping: 13 In max
-
Tripping class: 10 A
-
Mechanical Life: 100000 cyles
-
Electrical Life: 100000 cycles
-
*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Havells |
|
Product Type |
Motor Protection Circuit Breaker |
|
Product Code | Rating |
IHHMPBA2A0 | 0.1A-0.16A 100 kA IHHMPBB2B0 | 0.16A-0.25A 100 kA IHHMPBC2D0 | 0.25A-0.4A 100 kA IHHMPBD2E0 | 0.4A-0.63A 100 kA IHHMPBE2F0 | 0.63A-1A 100 kA IHHMPBF2G0 | 1A-1.6A 100 kA IHHMPBG2R0 | 1.6A-2.5A 100 kA IHHMPBH2I0 | 2.5A-4A 100 kA IHHMPBJ2J0 | 4A-6.3A 100 kA IHHMPBK2K0 | 6.3A-10A 100 kA IHHMPBL2L0 | 9 A-14A 15 kA IHHMPBN2M0 | 13A-18A 15 kA IHHMPBQ2T0 | 17A-23A 15 kA IHHMPBS2N0 | 20A-25A 15 kA IHHMPBT2P0 | 24A-32A 10 kA |
|
Series |
HGSM |
|
Warranty |
As Per Manufacturer Terms and Condition |
