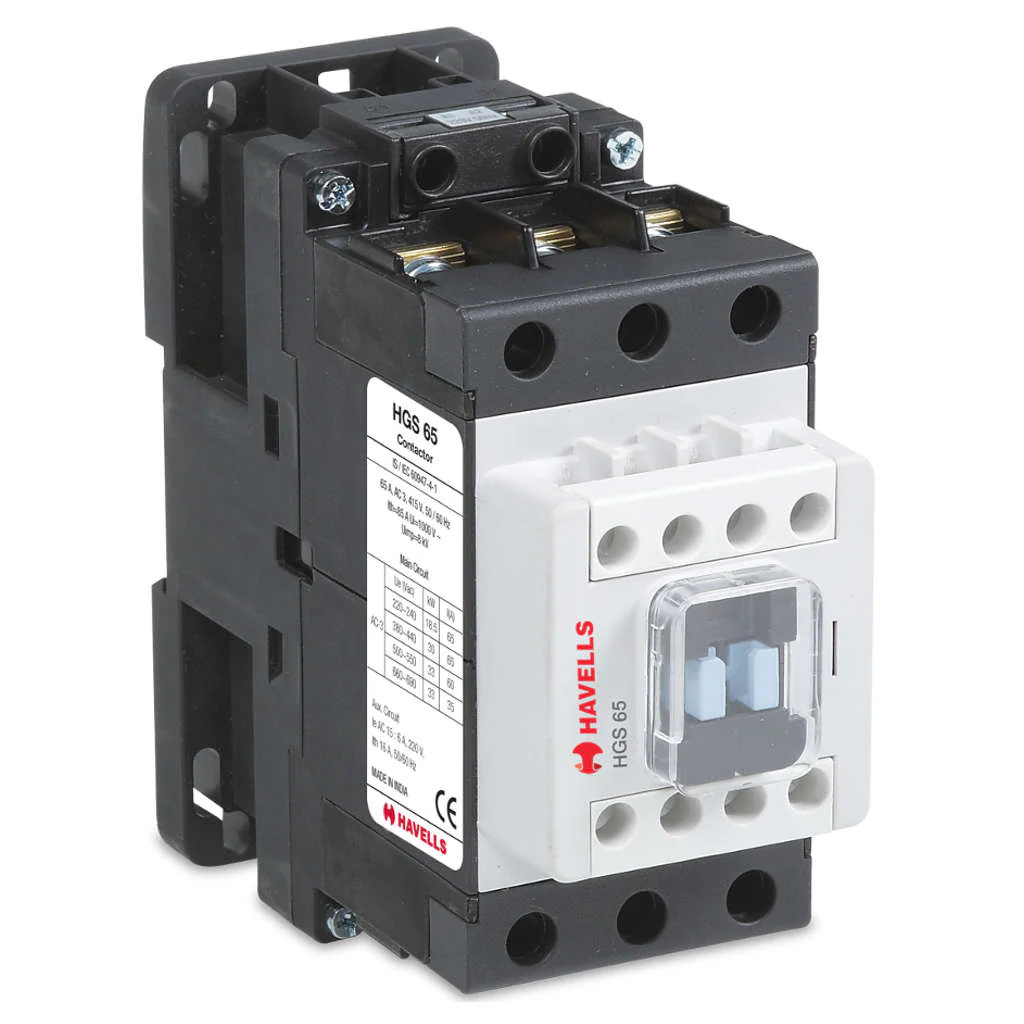

Havells HGS 65 Power Magnetic Contactors With AC Coil 3 Pole Frame3

Product Description

• Cassette Type Design and universal Coil

• Completely Shield for dusty atmosphere

• Nut Retaining Washer for quick termination

• DIN rail mounting up to 100 A

• Snap fit construction up to 40 A

• Class H Insulation

• Operating Band

• Wide band coil to withstand high fluctuation

• Design

• Snap fit design & completely shield for dusty atmosphere

• Snap Open Design for Easy Inspection

• Low VA burden coils and is considered to be the greenest contactors

• Nut Retaining Washer for Quick Termination

• High electrical & mechanical life

• High Endurance / Switching Frequency

• Conforms to IS / IEC 60947-4-1

• *Actual product image may vary from that shown on the picture

Product Specification

Brand	Havells
Product Type	Contactors
Product Code | Coil Voltage	IHPHA065300B | 24V AC IHPHA065300H | 110V AC IHPHA065300N | 240V AC IHPHA065300S | 150-300V AC IHPHA065300W | 260-440V AC IHPHA065300T | 415V AC
Type	HGS 65
Frame Size	3
AC-3 Duty Rating At 415 V,50 Hz
Ie A	65 A
kW	37 kW
HP	50 HP
AC-1 Duty Rating At 415 V,50 Hz
Ith A	85 A
Power Poles	3
Auxilliary Contact Arrangement
NO	2
NC	2
IP Protection	20°
Warranty	As Per Manufacturer Terms and Condition
