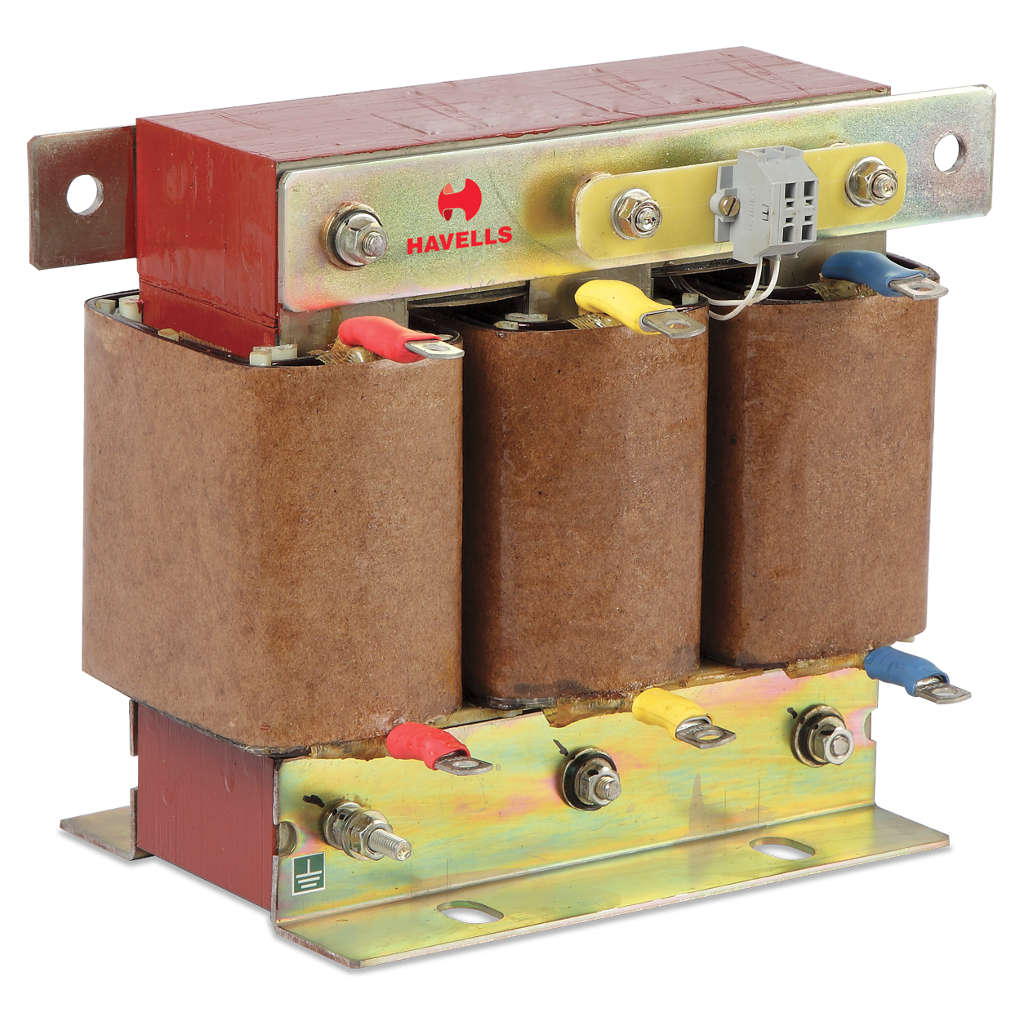

Havells HD Harmonic Duty Reactor With Aluminum Winding 440V AC

Product Description

• Winding Type

• High Quality Aluiminum

• In a practical network, XL is contributed by the transformers and line inductances and XC is contributed by the PF capacitors

• Hence for any industry with power factor correction capacitors installed, there is a possibility of resonance

• Parallel resonance within a given electical system, involving internally generated harmonics and resonance between local capacitors and the predominantly inductive supply (transformers)

• Series resonance between external harmonics (in the supply system and capacitors within electrical system)

• Interactive resonance between different harmonics filters within a given electrical network

• Addition of detuned reactors (in series to capacitors) forcefully shifts the resonant frequency to a safer levelFor example,combination of capacitor and 7% detuned filter reactor has the resonance frequency of 189 Hz, which will avoid resonance with 5th harmonic and above

• Features

• Insulation Class H

• High harmonic loading capability

• Temperature protection - NC contact (UL Approved)

• Long expected life time

• Low noise & very low losses

• IEC 61558

Product Specification

Brand	Havells
Product Type	Harmonic Duty Reactor
Product Code | Rating kVAr	QHLTLCV001X0 | 1 kVAr QHLTLCV002X0 | 2 kVAr QHLTLCV003X0 | 3 kVAr QHLTLCV004X0 | 4 kVAr QHLTLCV005X0 | 5 kVAr QHLTLCV010X0 | 10 kVAr QHLTLCV012X5 | 12.5 kVAr QHLTLCV015X0 | 15 kVAr QHLTLCV020X0 | 20 kVAr QHLTLCV025X0 | 25 kVAr QHLTLCV050X0 | 50 kVAr QHLTLCV075X0 | 75 kVAr QHLTLCV100X0 | 100 kVAr
Rated Voltage	440 V ac
Detuning Factor	7%
Frequency	189 Hz
Expected Life time	Long
Insulation Class	H
Linearity	L > 0.95 Lr For Current Up To 1.85 . I1
Losses	Low
Noise Level	Low
Winding Type	Aluminum
Temperature Protection	Yes - NC Contact ( UL approved)
Warranty	As Per Manufacturer Terms and Condition
