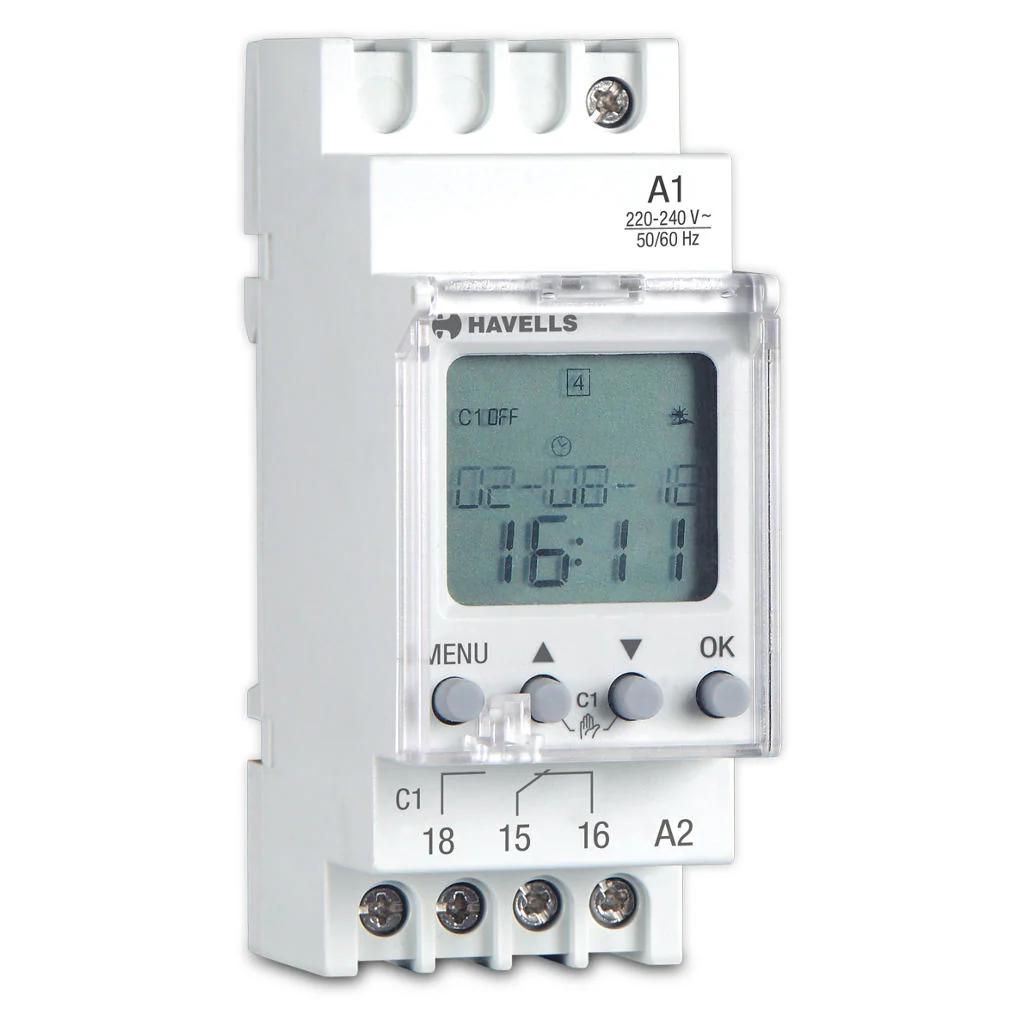

Havells Digital Astronomical Time Switch 3 Years DHTQB01016

Product Description

• 3 Year Power Reserve

• To ensure that the current date and time settings are maintained and the set program is followed even during power failure

• Astro Program

• Some appliances need to be controlled depending on the sunrise and sunset times

• This can be done using astronomical time switch depending on the different times of a season

• Geographical location is input via entering longitude and latitude

• Summer/Winter Time Setting

• There are four different options available for summer or winter switching of a program

• Offset Setting

• The offset setting enables the user to adjust the astronomical times up to + -2h

• This helps in saving energy by turning on lighting later and off earlier than the previously set sunset and sunrise times depending on a particular geographical area

• Night Break Setting

• In night break program can be turned off at night during the set time duration

Product Specification

Brand	Havells
Product Type	Astronomical Time Switch
Product Model	DHTQB01016
Data Read Out	LCD display
Electrical Life	10 to power of 5
Frequency	50 Hz/60 Hz
Mechanical Life	10 to power of 6
Mounting	Din rail mounting
Number Of Channels	1
Operating Modes	Manual, automatic, holiday, nightbreak
Operating Voltage	230 V AC
Power Consumption	1 W
Power Reserve	3 Years
Program	Astronomical
Standard	IEC 60730-1/IEC 60730-2-7
Summer Winter Time	off, automatic changeover
Supply Terminals	A1 - A2
Supply Voltage Tolerance	±10%
Tightening Torque	0.5 Nm
Wire Size	1 mm² - 4 mm²
Application	Suitable for Residential and Commercial use
Dimensions(HxDxW)	90×36x65 mm
Warranty	As Per Manufacturer Terms and Condition
