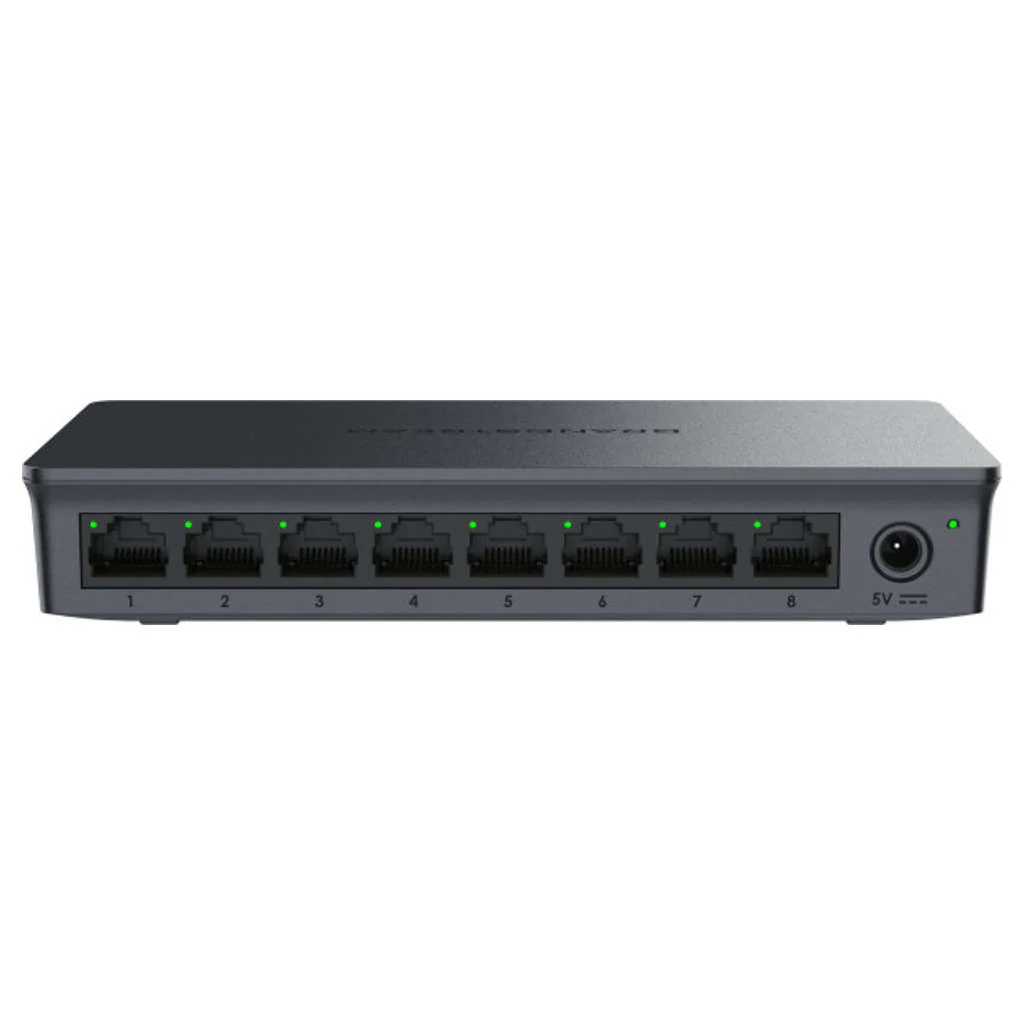

Grandstream 8-Port Unmanaged Network Switch GWN7701

Grandstream 8-Port Unmanaged Network Switch GWN7701

Product Description

  • The Grandstream GWN7701 Unmanaged Network Switch is an unmanaged network switch that provides a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small-to-medium-sized businesses

  • 8 Gigabit Ethernet ports

  • Part of the GWN7701 series of switches, the GWN7701 is a plug-and-play network switch that makes it quick and easy to deploy or expand any office communications and networking deployment

  • It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables

  • Each port supports auto-negotiation to allow the GWN7701 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance

Product Specification

Brand

Grandstream

Product Type

Network Switch

Product Model

GWN7701

Gigabit Ports

8

Enclosure

Plastic

Mounting

Desktop/ Wall-Mount

Network Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Port Feature

8× 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX

Network Media

1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

LED Indicators

Per port: Link/Activity Green
Per device: Power Green

Mac Address Table

8K

Switching Capacity

16Gbps

Jumbo Frame

9KB

Advanced Features

Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS

Unlink clear FDB Feature
IGMP:
IGMP Fast-Leave
IGMP Snoop
Route Port Autolearn
Query Refresh Member Port

Power Adapter

External 5VDC/0.6A

Maximum Power Consumption By Base System

2.7 W

Environmental

Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F)
Operating Humidity: 10% to 90% Non-condensing
Storage Humidity: 10% to 90% Non-condensing

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x W x H

20.2 x 16.6 x 5.4

Unit Of Measurement

1 Piece

Weight

0.380 kg

Generic Type

Switches

Manufacturer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:[email protected]

Packer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:[email protected]

Country Of Origin

India


$5.97

Original: $19.91

-70%
Grandstream 8-Port Unmanaged Network Switch GWN7701—

$19.91

$5.97
