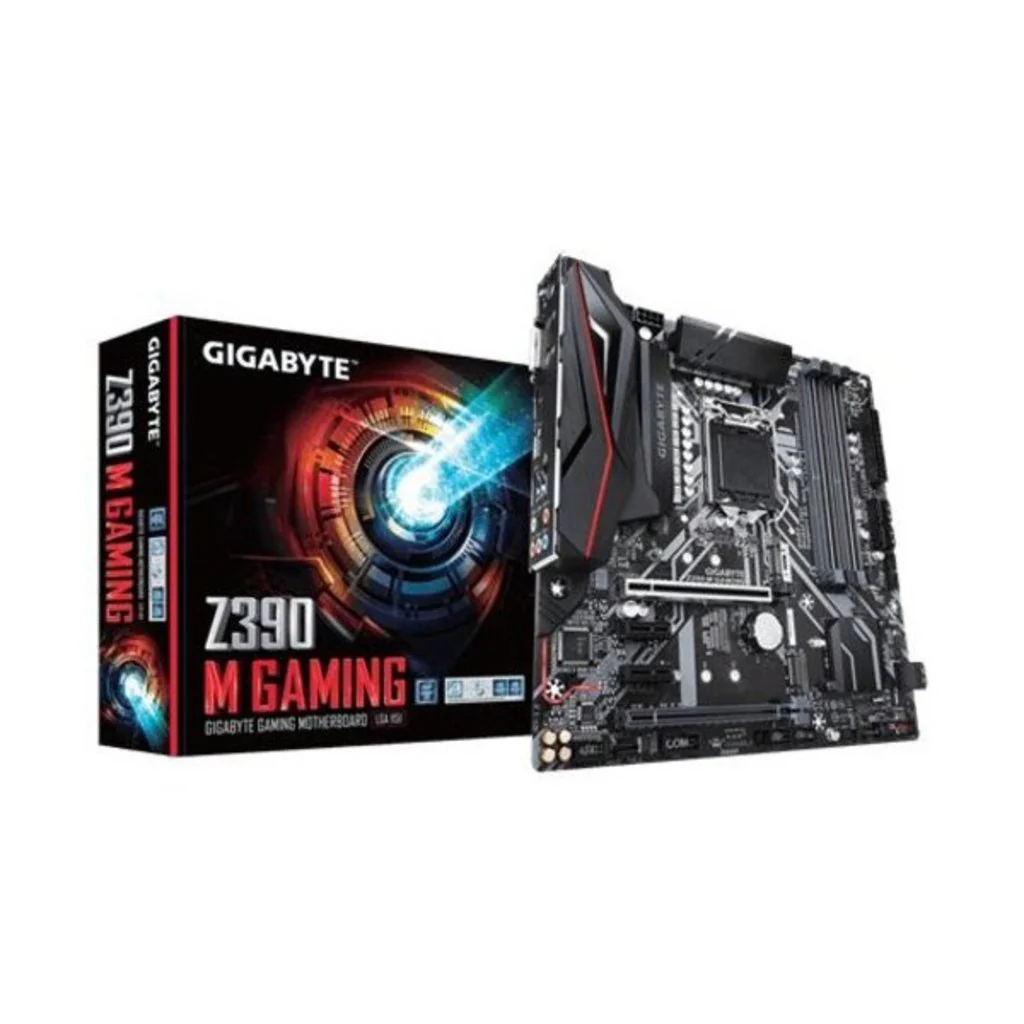

Gigabyte Motherboard Z390 M

Product Description

• Supports 9th and 8th Gen Intel Core Processors

• Dual Channel Non-ECC Unbuffered DDR4

• New 10+2 Phases Digital PWM Design

• High Quality Audio Capacitors

• Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface

• Multi-Way Graphics Support with PCIe Armor and Ultra Durable Design

• Intel Native USB 3.1 Gen2 Type-A + Type-C

• Intel GbE LAN with cFosSpeed Internet Accelerator Software

• Intel Gigabit LAN with cFosSpeed

• Ultra Durable 25KV ESD and 15KV Surge LAN Protection

• Support RGB Lighting Effect in Full Colors

• CEC 2019 Ready, Save Power With a Simple Click

• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

• Lightning-Fast Intel Thunderbolt 3 AIC Support

• Intel Optane Memory Ready

• Memory

• 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
  ** Please note that the support for system total memory size depends on the CPU installed

• Dual channel memory architecture

• Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

Product Specification

Brand	Gigabyte
Product Code	Z390 M
Product Type	Motherboard
CPU	Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors /Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel Z390 Express Chipset
Graphics	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
LAN	Intel GbE LAN chip (10/100/1000 Mbit)
Storage Interface	Chipset 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
I/O Controller	iTE I/O Controller Chip
Operating System	Support for Windows 10 64-bit
