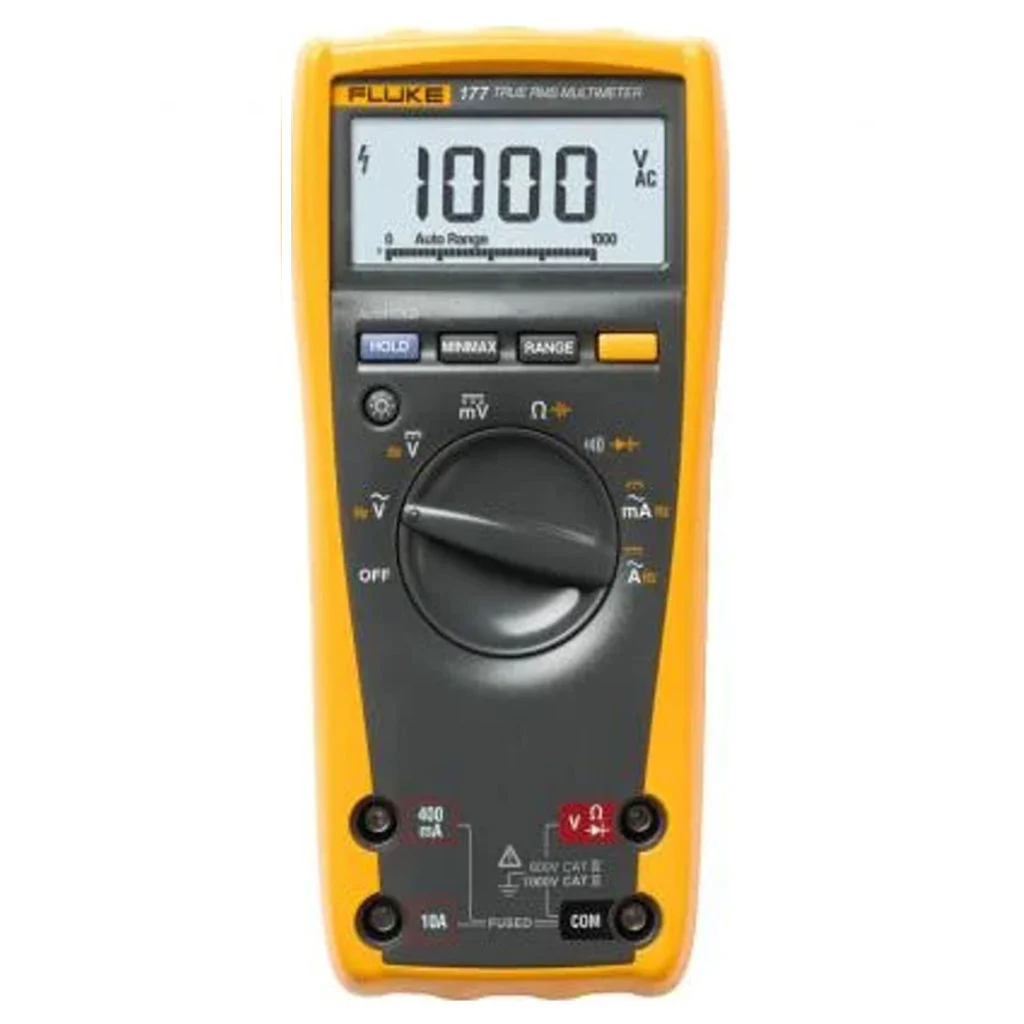

Fluke True-RMS Digital Multimeter 177

Product Description

• With its precision, reliability, and ease of use, the Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide

• Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments,

• The Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems

• With the Fluke 177 Digital Multimeter you get True-RMS voltage and current measurements, 6000-count resolution

• Manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements

• In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with analog bar graph and backlight

• Features digital display with backlight for working in dim lighting

• Allows closed case calibration through front panel

• Features an ergonomic case with integrated protective holster

Product Specification

Brand	Fluke
Product Type	Digital Multimeter
Product Model	177
Voltage DC	Accuracy1	±(0.09% + 2)
	Max. Resolution	0.1 mV
	Maximum	1000 V
Voltage AC	Accuracy1	±(1.0% + 3)
	Max. Resolution	0.1 mV
	Maximum	1000 V
Current DC	Accuracy1	±(1.0% + 3)
	Max. Resolution	0.01 mA
	Maximum	10 A
Current AC	Accuracy1	±(1.5% + 3)
	Max. Resolution	0.01 mA
	Maximum	10 A
Resistance	Accuracy1	±(0.9% + 1)
	Max. Resolution	0.1 Ω
	Maximum	50 MΩ
Capacitance	Accuracy1	±(1.2% + 2)
	Max. Resolution	1 nF
	Maximum	10,000 µF
Frequency	Accuracy1	±(0.1% + 1)
	Max. Resolution	0.01 Hz
	Maximum	100 kHz
Operating Temperature	-10°C to +50°C
Storage Temperature	-30°C to +60°C
Humidity (without Condensation)	0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C)
Overvoltage Category	EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV
Agency Approvals	UL, CSA, TÜV listed and VDE Pending
Size	43 x 90 x 185 mm
Battery Life	Alkaline ~200 Hours Typical, Without Backlight
Weight	420 g
Warranty	As Per Manufacturer Terms and Condition
