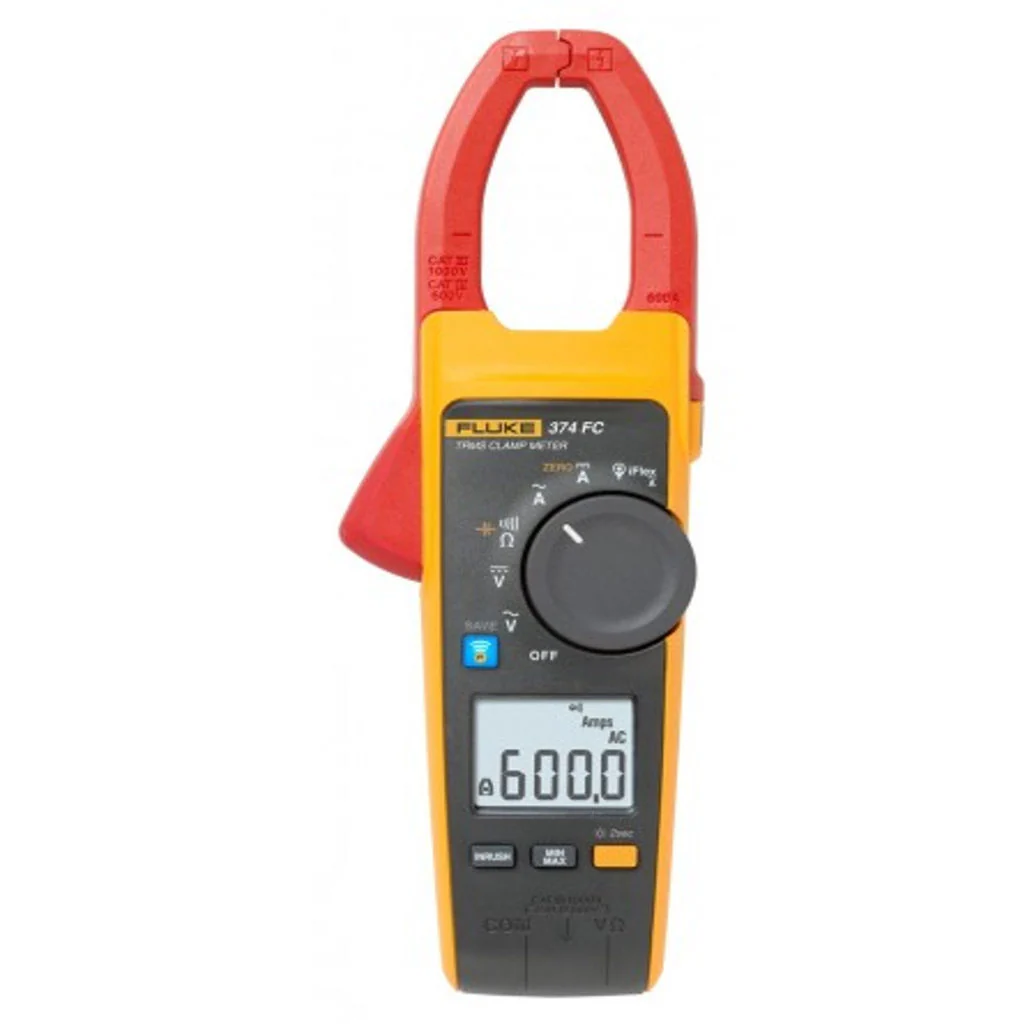

Name: Fluke True RMS AC/DC Clamp Meter 374 FC
Brand: Bestomart
SKU: fluke-true-rms-ac-dc-clamp-meter-374-fc-1000076048
Availability: InStock

Account

Home Store

Fluke True RMS AC/DC Clamp Meter 374 FC

Product Description

Fluke 374 FC Delivers Advanced Troubleshooting Performance And Wireless Connectivity
The Fluke 374 FC, part of the Fluke Connect family of wireless test tools, delivers the standard features you need for everyday troubleshooting
Measure AC and DC current to 600 A with the fixed jaw clamp or add an optional iFlex flexible current probe to measure all the way to 2500 A
The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access tightly packed wires
You can also use the 374 FC to measure AC and DC voltage to 1000 V and resistance to 6000 Ω
Use Wireless Connectivity To Keep A Safe Distance
The 374 FC is Fluke Connect-enabled to wirelessly transmit results via Bluetooth to Apple and Android devices
That means you can read the results out of the arc flash zone, wearing less PPE
You can even save results to the cloud and create and send reports in email right from the field
Or converse in real-time with ShareLive video calls
Versatile Feature Set
With True-RMS AC voltage and current measurements, the 374 FC enables you to accurately troubleshoot non-linear signals
And you can log and trend measurements to pinpoint intermittents while you are performing other tasks
The Fluke 374 FC Clamp Meter is the direct replacement for the Fluke 374 Clamp Meter
Other Useful Capabilities
Compatible with optional TPAK magnetic hanging strap
Comes with soft carrying case, batteries, and three-year warranty
Measures capacitance to 1000 µF
Features CAT III 1000 V, CAT IV 600 V safety rating
Provides True-RMS voltage and current measurements to accurately measure non-linear signals
Includes Min/Max/Avg and inrush recording to capture variations automatically
Runs on two AA alkaline batteries

Product Specification

Brand	Fluke
Product Type	Clamp Meter
Product Model	374 FC
General Specifications
AC Current Via Jaw
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ±5 digits (10 Hz to 100 Hz) 2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)	2.5 @ 600 A Add 2% for C.F. >2
AC Current Via Flexible Current Probe
Range	2500 A
Resolution	0.1 A (≤ 600 A) 1 A (≤ 2500 A)
Accuracy	3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)	2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
Position Sensitivity	Distance From Optimum
		i2500-10 Flex	i2500-18 Flex	Error
	A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5 %
	B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0 %
	C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0 %
Measurement Uncertainty Assumes Centralized Primary Conductor At Optimum Position, No External Electrical Or Magnetic Field, And Within Operating Temperature Range
DC Current
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ±5 digits
AC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1.5% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1% ±5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1% ±5 digits
Resistance
Range	6000 Ω
Resolution	0.1 Ω (≤600 Ω) 1 Ω (≤6000 Ω)
Accuracy	1% ±5 digits
Capacitance
Range	1000 μF
Resolution	0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF)
Accuracy	1% ±4 digits
Mechanical Specifications
Maximum Voltage Between Any Terminal And Earth Ground	1000 V
Batteries	2 AA, NEDA 15A, IEC LR6
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-40 °C to +60 °C
Operating Humidity-Non-Condensing (< 10°C)	≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C) ≤45% RH (at 40 °C to 50 °C)
Operating Altitude	3000 m
Storage Altitude	12,000 m
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length(Head To Electronics Connector)	1.8 m
Safety	IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V
IP Rating	IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID	T68-FBLE IC:6627A-FBLE
Size (L x W x H)	249 x 85 x 45 mm
Weight	395 g
Warranty	3 Years
