Fluke Infrared Thermometer 59 Max
Product Description
-
Laser targeting for use from -30 °C to 350 °C (-22 °F to 662 °F)
-
Small, rugged design easily fits your hand and your toolbox
-
Easy-to-read, backlit LCD screen
-

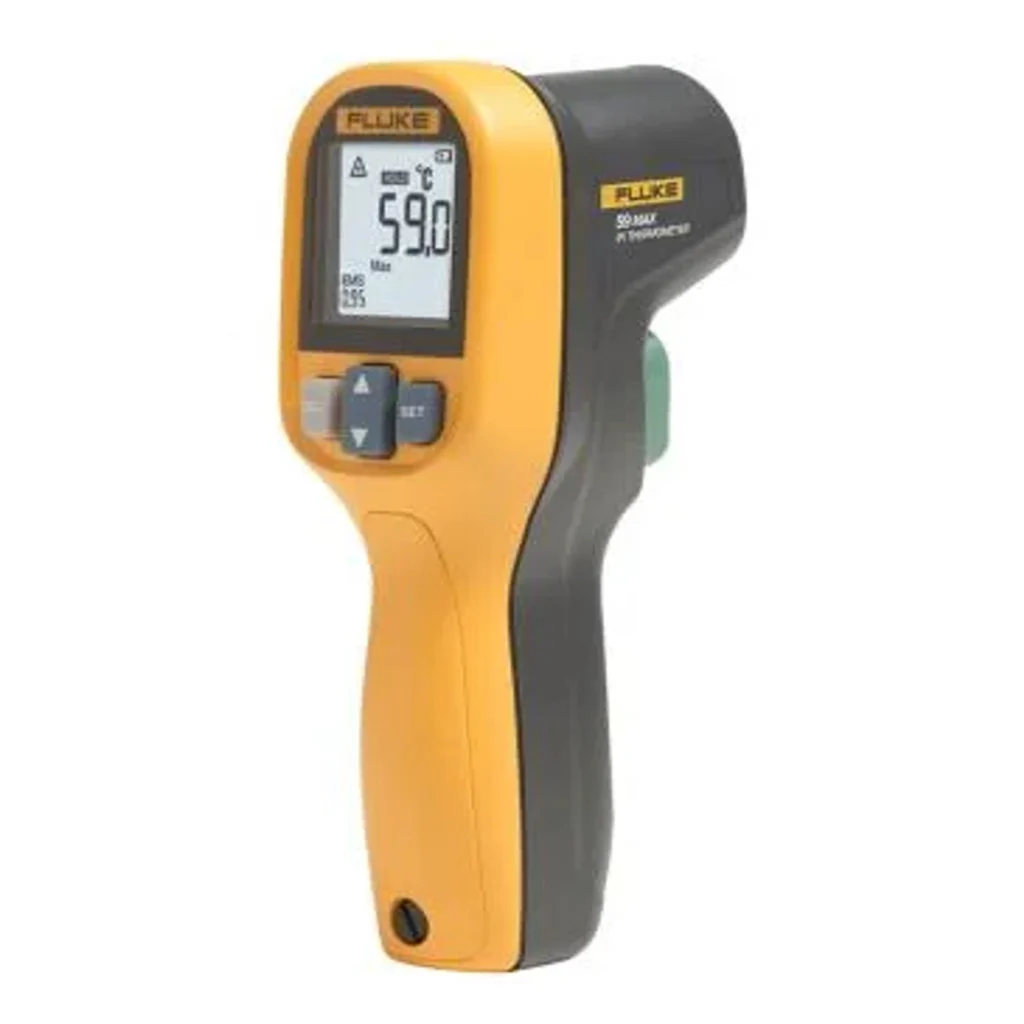

The Fluke 59 MAX Infrared Thermometer is a precision thermometer that delivers accurate, repeatable measurements and still fits within your budget
-
Use the bright backlit LCD display on the Fluke 59 MAX to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, ducts, and vents
-
Designed for quick, easy measurements
-
It is extremely easy to use and compact enough to fit in your hand and your tool bag
-
Designed to withstand a one-meter drop, you can count on the 59 MAX to work when you need it
-
This IR Thermometer Offers A Variety Of Measurement Functions:
-
Selectable MAX, MIN, DIF and AVG functions
-
Hi and Lo alarms for rapid display of measurements outside the limits
-
Laser Targeting
-
It features an 8:1 distance-to-spot ratio and single laser targeting for consistent, accurate measurements
-
With a measurement range from -30 °C to 350 °C (-22 °F to 662 °F) you can measure and track a wide variety of temperatures
-
Powered by one (1) AA battery
Product Specification
|
Brand |
Fluke |
|
|
Product Type |
Infrared Thermometer |
|
|
Product Model |
59 Max |
|
|
Model No |
4325527 |
|
|
Temperature Range |
-30°C to 350°C (-22°F to 662°F) |
|
|
Accuracy (Calibration Geometry With Ambient Temperature 23°C ±2°C) |
≥ 0°C |
±2.0°C or ±2.0% of reading, whichever is greater |
|
≥ -10°C to <0°C |
±2.0°C |
|
|
< -10°C |
±3.0°C |
|
|
≥ 32°F |
±4.0°F or ±2.0% of reading, whichever is greater |
|
|
≥ 14°F to <32°F |
±4.0°F |
|
|
< 14°F |
±6.0°F |
|
|
Response Time (95%) |
< 500 ms (95% of reading) |
|
|
Spectral Response |
8 mm to 14 mm |
|
|
Emissivity |
0.10 to 1.00 |
|
|
Distance To Spot Ratio |
8:1 (calculated at 90% energy) |
|
|
Display Resolution |
0.1°C (0.2°F) |
|
|
Repeatability (% Of Reading) |
±1.0% of reading or ±1.0°C |
|
|
Power |
1 AA IEC LR06 Battery |
|
|
Battery Life |
12 hours with laser and backlight on |
|
|
Weight |
220 g (7.76 oz) |
|
|
Size |
156 x 80 x 50 mm (6.14 x 3.15 x 2 in) |
|
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
|
Storage Temperature |
-20°C to +60°C (-4°F to 140°F), (without battery) |
|
|
Operating Humidity |
10% to 90% RH non-condensing @ 30°C (86°F) |
|
|
Operating Altitude |
2000 meters above mean sea level |
|
|
Storage Altitude |
12,000 meters above mean sea level |
|
|
Drop Test |
1 m |
|
|
Ingress Protection Rating |
IP40 per IEC 60529 |
|
|
Vibration And Shock |
IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
|
|
Compliance |
EN/IEC 61010-1 |
|
|
Laser Safety |
FDA and EN 60825-1 Class II |
|
|
Electromagnetic Compatibility |
61326-1 EN 61326-2 |
|
|
Warranty |
1 years |
|
Original: $76.62
-70%$76.62
$22.99
