Fluidomat Fluid Coupling T12-04

Product Description

• These are radially displaceable fluid couplings with resilient driving plate on input side and metallic disc flexible coupling on the output side

• Steel body type 'SF' for underground mining applications with Viton seals

• Optionally available with Thermal Protection System in addition to Fusible Plug

• Available ready to fit couplings bored and keyed for driver and driven end shafts

• Warranty and support will be provided by vendor

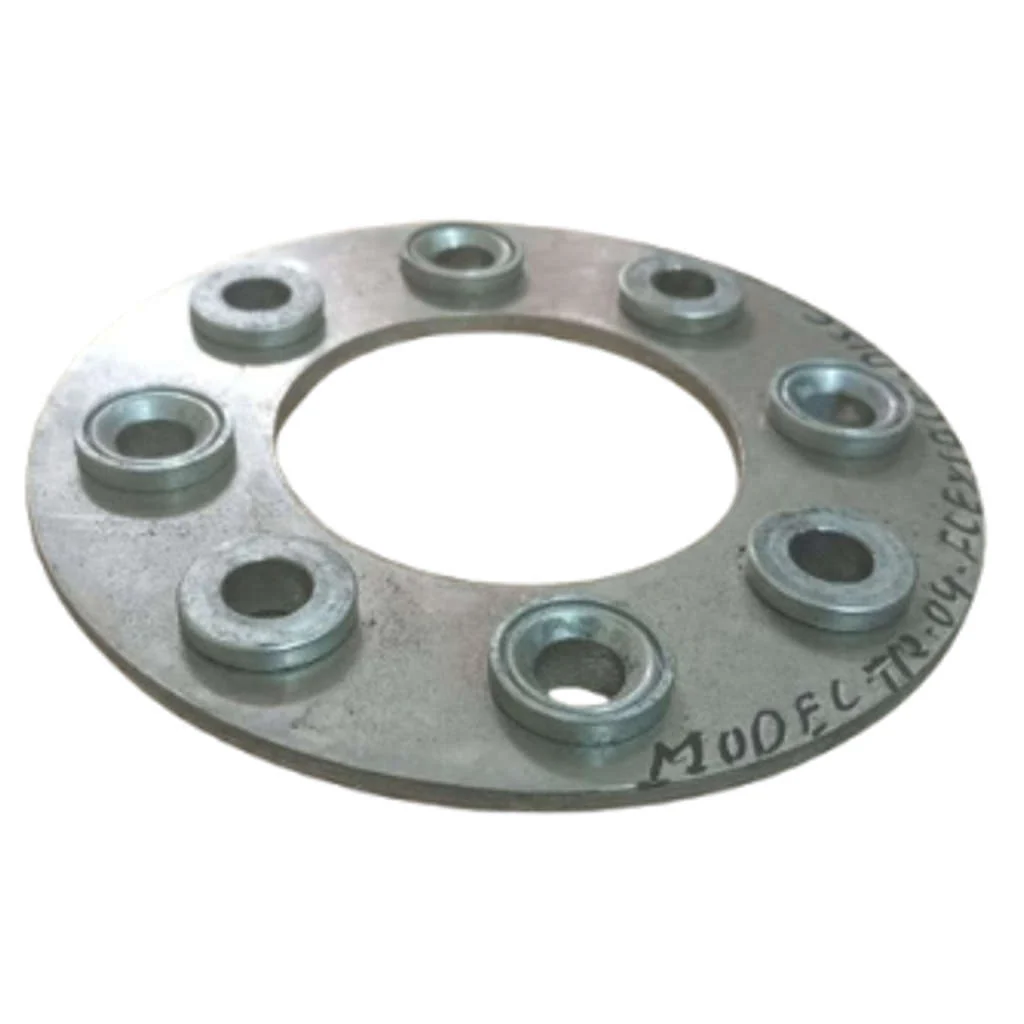

• Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand	Fluidomat
Product Type	Fluid Coupling
Product Model	T12-04
Maximum Motor	50
Maximum Output Side	60
Maximum Kw Rating at Input Speed	970			1470
	4.3 Kw			15 Kw
Maimum Speed	1470
Dimension	A	B	O.D1 max	L1	O.D4 max	L4
	350	216	50	80	60	70
