Escon Wedge Belt 3V Section 9.7x8mm

Product Description

• Escon Heavy duty Wedge Belt contain high modulus polyester cords,which together with specially formulated bottom compression rubber compound and insulation rubber,constitute over unshakable union even under severest flexing conditions

• Escon Wedge Belt do not buckle even on the toughest segments and are most preferred in most compact industrial drives

• Escon Wedge Belt confirm to IS 14261 and BS 3790

• Wedge Belt manufactured by ESCON are 3V, 5V and 8V

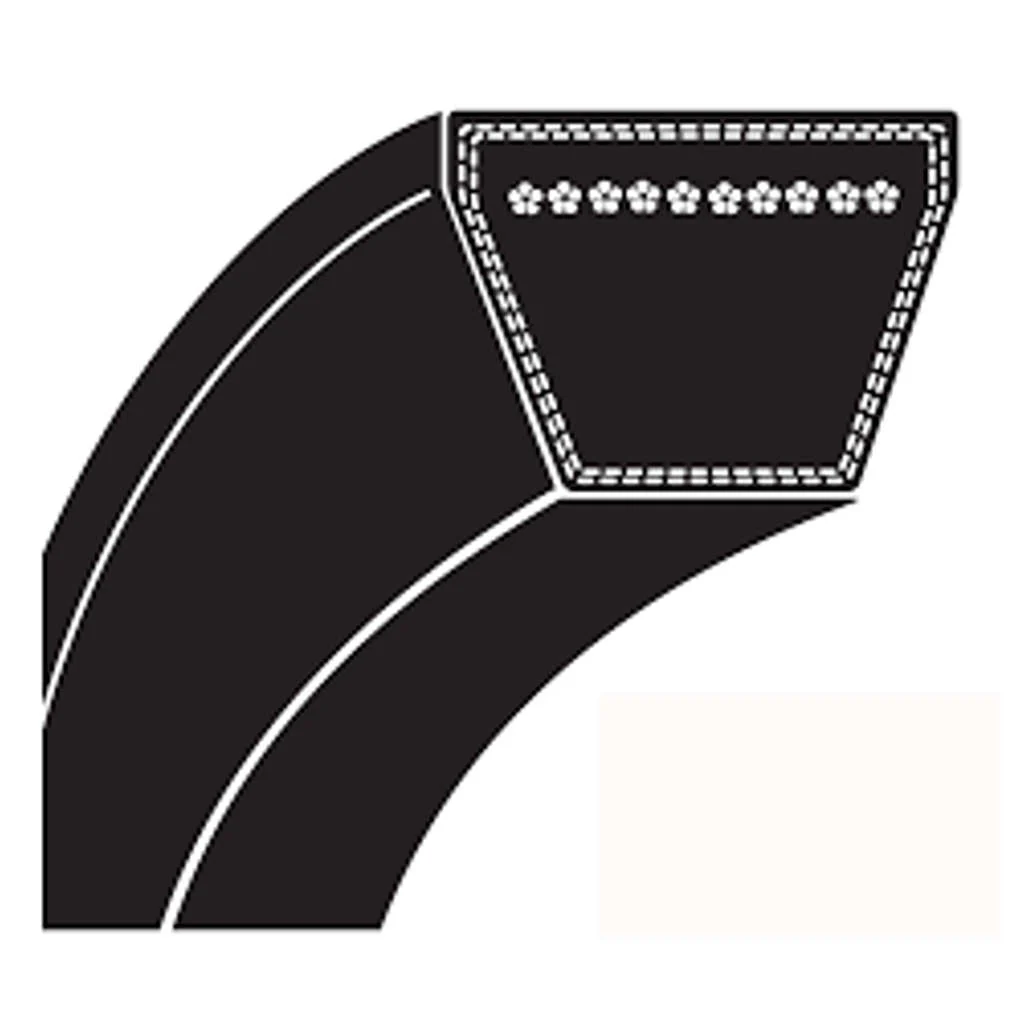

• *Actual product image may vary from that shown on the picture

Product Specification

Brand	Escon
Product Type	Belt
Size	3V 195 3V 250 3V 270 3V 280 3V 300 3V 315 3V 320 3V 330 3V 350 3V 360 3V 370 3V 380 3V 400 3V 420 3V 450 3V 470 3V 480 3V 500 3V 510 3V 530 3V 560 3V 575 3V 600 3V 630 3V 670 3V 710 3V 750 3V 800 3V 850 3V 900 3V 950 3V 1000 3V 1060 3V 1120 3V 1180 3V 1200 3V 1320 3V 1400 3V 1500 3V 1600 3V 1660
Section	3V Section
Belt Type	Wedge Belt
Nominal Top Width	9.7 mm
Nominal Thickness	8.0 mm
Nominal Angle	40º
Our Manufacturing Range Inside Length	640 - 1320 Inches
Reference Standard	RMA - IP - 22
Warranty	As Per Manufacturer Terms and Condition
