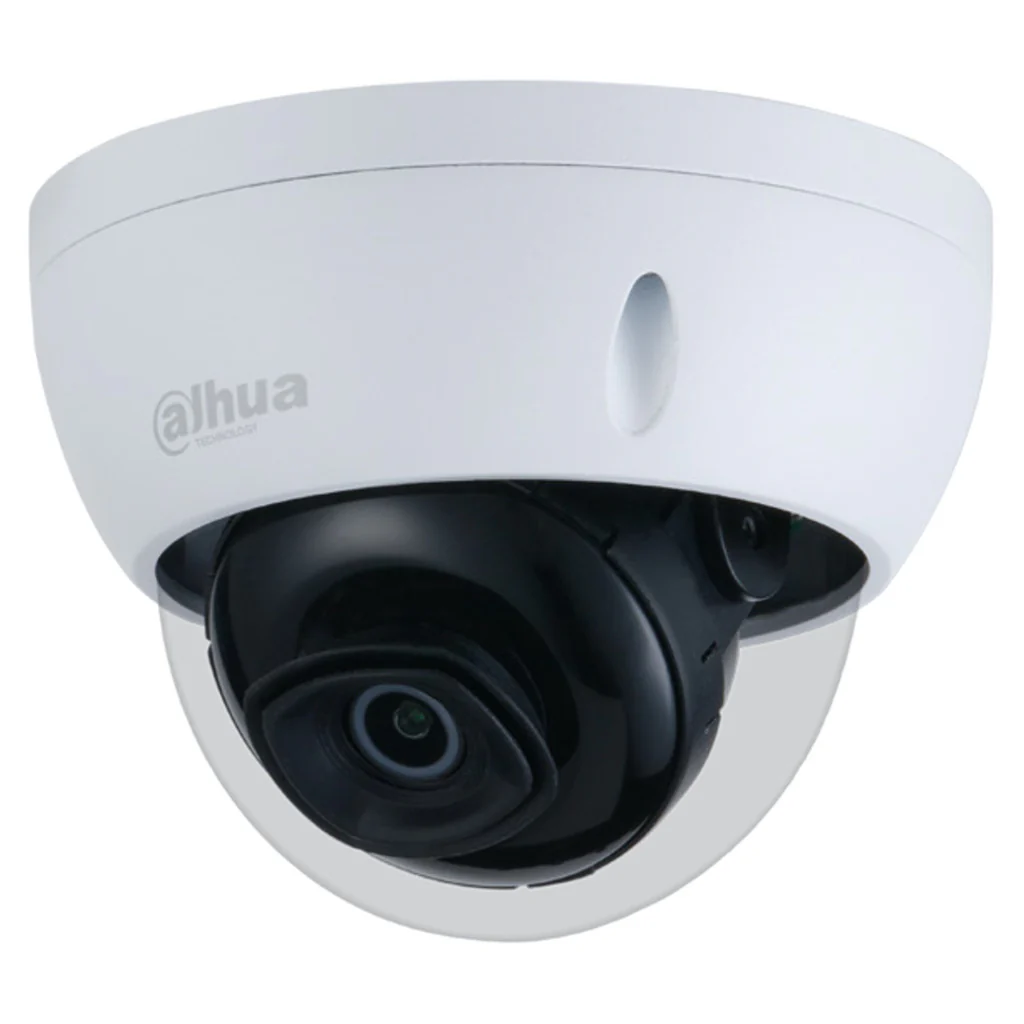

Dahua Lite Series IR Mini Dome Network Camera 2MP DH-IPC-HDBW2230EP-S-S2
Product Description
-
2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
-
Outputs 2MP (1920 × 1080)25/30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max IR distance: 30 m
-
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Intelligent detection: Intrusion, tripwire
-
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
-
Supports max. 256 GB Micro SD card
-
12V DC/PoE power support
-
IP67, IK10 protection grade
-
Function
-
Smart (H.265+ & H.264+)
-
Starlight
-
Intelligent Video Analysis (IVS)
-
Protection (IP67, IK10, wide voltage)
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |
Dome Camera |
||||
|
Series |
Lite Series |
||||
|
Product Code |
DH-IPC-HDBW2230EP-S-S2 |
||||
|
Camera |
|||||
|
Image Sensor |
1/2.7” 2Megapixel progressive CMOS |
||||
|
Effective Pixels |
1920 (H) × 1080 (V) |
||||
|
Rom |
128 MB |
||||
|
Ram |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.005 Lux F1.6 |
||||
|
IR Distance |
30 m (98.43 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR Leds Number |
3 |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm 3.6 mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field Of View |
2.8 mm: Pan: 110.0° Tilt: 59.0° Diagonal: 132.0° 3.6 mm: Pan: 91.0° Tilt: 48.0° Diagonal: 109.0° |
||||
|
IRIS Type |
Fixed aperture |
||||
|
Close Focus Distance |
2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.1 m (3.61 ft) |
||||
|
Dori Distance |
|||||
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8 Mm |
37.3 M (122.38 Ft) |
14.9 m (48.88 ft) |
7.5 m (24.61 ft) |
3.7 m (12.14 ft) |
|
|
3.6 Mm |
53.3 M (174.87 Ft) |
21.3 m (69.88 ft) |
10.7 m (35.10 ft) |
5.3 m (17.39 ft) |
|
|
Smart Event |
|||||
|
General Ivs Analytics |
Tripwire; intrusion |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25fps) 704 × 480 (1 fps-30fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
Hlc |
Yes |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region Of Interest(Roi) |
Yes (4 areas) |
||||
|
Smart IR |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Network |
|||||
|
Network |
RJ-45 (10/100 Base-T) |
||||
|
Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
||||
|
Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec |
||||
|
User/Host |
20 |
||||
|
Edge Storage |
Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
||||
|
Browser |
IE Chrome Firefox |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certification |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||
|
Power Consumption |
< 5W |
||||
|
Environment |
|||||
|
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH |
||||
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Protection Grade |
IP67, IK10 |
||||
|
Structure |
|||||
|
Casing |
Metal |
||||
|
Dimensions |
81 mm × Φ109.9 mm (3.19" × Φ4.33") |
||||
|
Net Weight |
0.350 kg (0.77 lb) |
||||
|
Gross Weight |
0.481 kg (1.06 lb) |
||||
|
Warranty |
As Per Manufacturer Terms and Condition |
||||
Original: $51.73
-70%$51.73
$15.52
