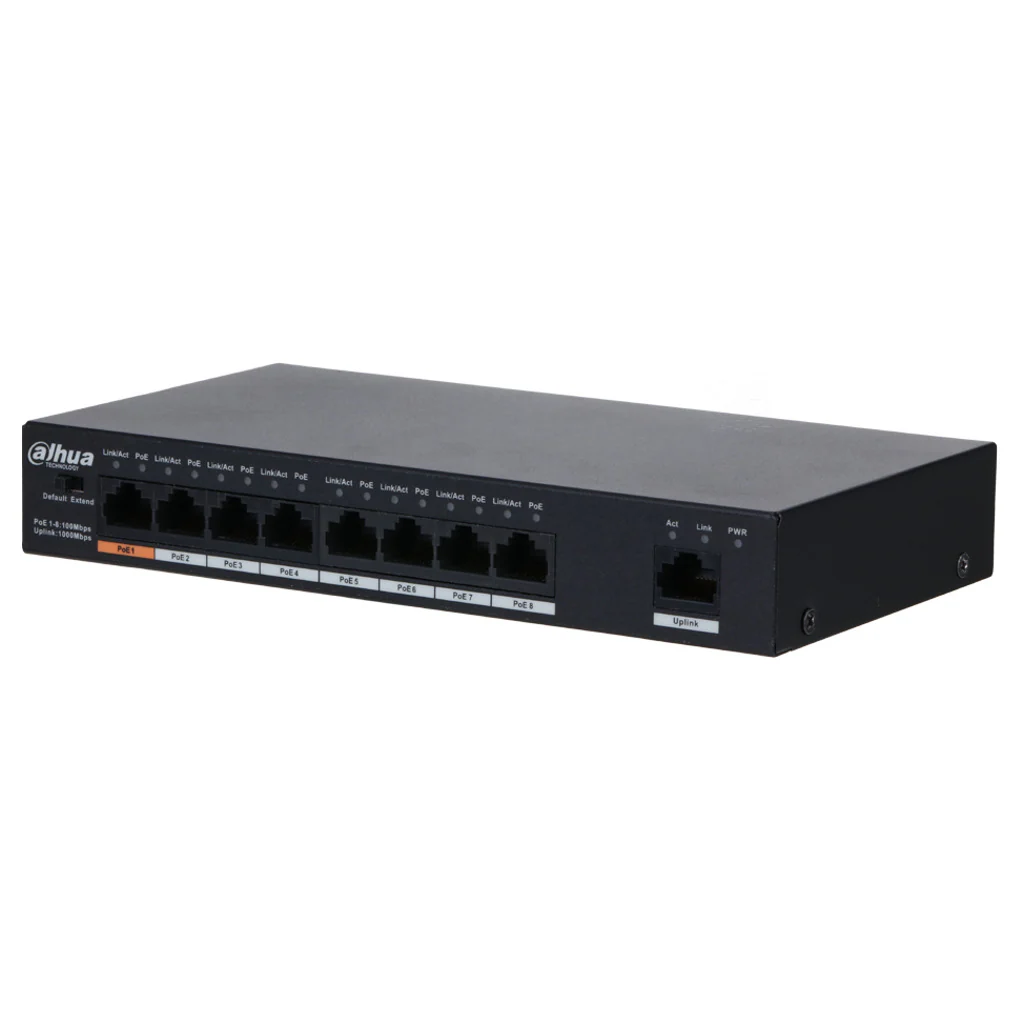

Dahua 9-Port Unmanaged Desktop Switch With 8-Port PoE DH-PFS3009-8ET1GT-96

Dahua 9-Port Unmanaged Desktop Switch With 8-Port PoE DH-PFS3009-8ET1GT-96

Product Description

  • Layer 2 commercial switch

  • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards

  • MAC auto study and aging, MAC table size is 2K

  • MDI/MDIX self-adaption

  • Adopts metal enclosure

  • Port 1 supports Hi-PoE 60W power supply

  • Wall-mount installation

  • Anti-theft lock hole

  • Long distance PoE

  • Functions

  • Intelligent PoE

  • Eight-PIN Assignment PoE Power Supply

  • Hi-PoE 60W (Orange Port)

  • Long Distance PoE

  • Easy Installation

  • Wide Working Temperature

  • Application

  • The 9-Port Unmanaged Desktop Switch with 8-Port PoE is applicable to small-scale monitoring network, such as office desktop, school, hotel, supermarket and hospital

Product Specification

Brand

Dahua

Product Type

PoE Switch

Product Model

DH-PFS3009-8ET1GT-96

Hardware

Ethernet Port

Port 1-8:8 × RJ45 10/100M(PoE) Port 9:1 × RJ45 10/100/1000M(Uplink)

PoE Budget

Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W

Power Consumption (static)

2.7W

Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE

PoE Pin Assignment

PoE/Hi-PoE:1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance

250 m, 10 Mbps

PoE Management

Support

Switching Capacity

3.6 Gbps

Packet Forwarding Rate

2.678 Mpps

Packet Buffer Memory

1 Mbit

Mac Table Size

2K

Flow Control

Enable by default

Operating Humidity

5%–95%

Power Supply

External power adpater: 53V DV

Thunderproof

Common mode: 4kV Differential mode: 2kV

Esd

Air discharge: 8kV Contact discharge: 6kV

Mounting

Support desktop and wall mounting

Anti-Theft Lock Hole

Support

Operating Temperature

-10°C to 55°C (14°F to 131°F)

Weight

Net weight: 0.47 kg (1.04 lb) Box weight (with accessory): 1.28 kg (2.82 lb) Protective box weight (with accessory): 10.98 kg (24.21 lb)

Dimensions (w × D × H)

190 mm × 100 mm × 30 mm (7.48” × 3.94” × 0.9”)

Warranty

As Per Manufacturer Terms and Condition
$17.60

Original: $58.66

-70%
