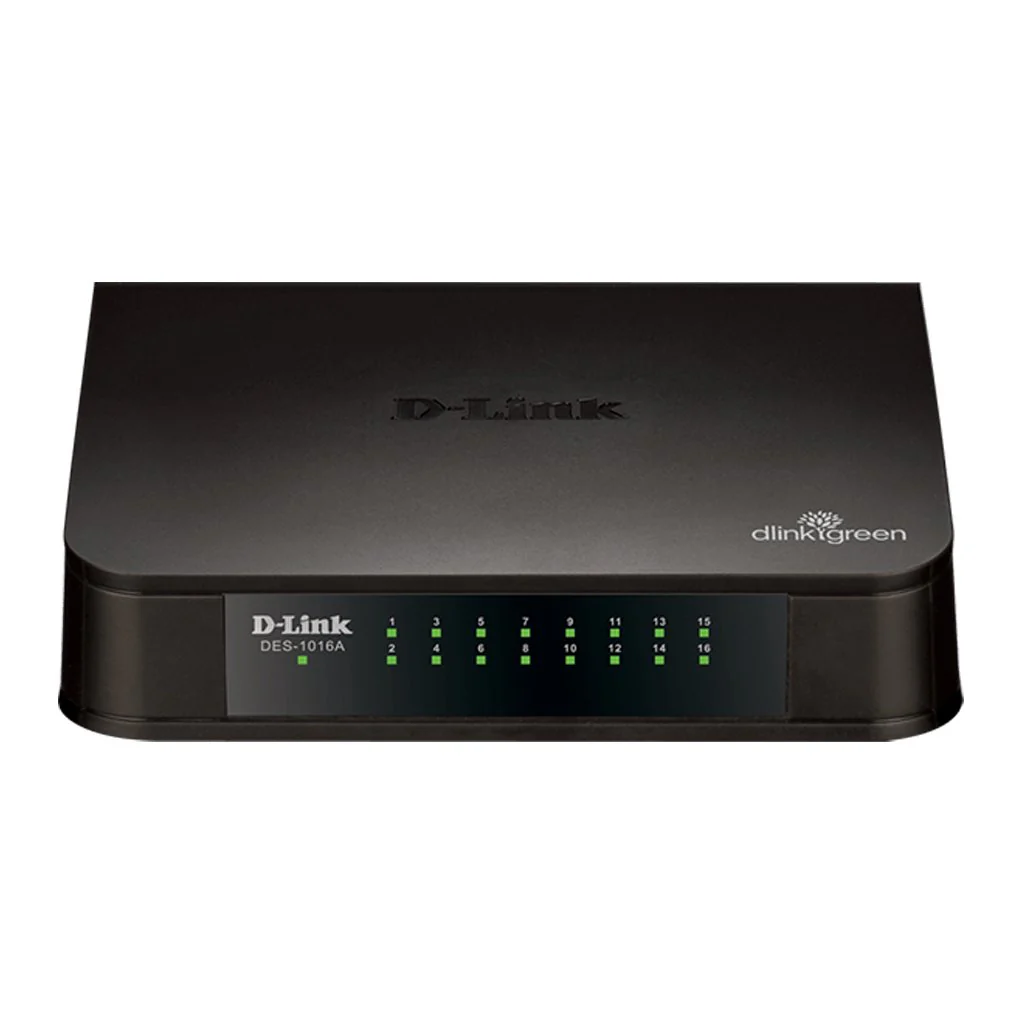

D-Link 16 port Switch DES-1016A

Product Description

• Sixteen 10/100 Mbps Fast Ethernet ports

• Compact design for placement virtually anywhere

• Plug and play technology for simple setup

• Fanless design provides silent operation

• 16-Port 10/100 Switch

• Eco-friendly and economical – Economical yet innovative design runs cool and quiet

• High speed networking – Fast Ethernet ports allow you to connect all your devices for fast file transfers and smooth media streaming

• Saves energy automatically – WEEE compliance reduces energy consumption without sacrificing performance

• Easy expansion – Expand your network to fast Ethernet connectivity to start enjoying fast downloads, smooth streaming media, and responsive online gaming

• Conserves Energy

• The DES-1016A 16-Port 10/100 Switch helps you conserve energy automatically through several methods

• It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down

• The switch also conserves energy by adjusting power usage according to different cable lengths of connected devices without affecting performance

• Think Green

• The D-Link DES-1016A 16-Port 10/100 Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality

• The switch is built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive

• Superior Performance

• Designed for superior performance to so you can enjoy fast downloads, smooth media streaming, and responsive online gaming, the DES-1016A supports the following features to ensure the best network capability possible

• Auto MDI/MDIX crossover for all ports

• Secure store-and-forward switching scheme

• Full/half-duplex for Ethernet/Fast Ethernet speeds

• IEEE 802.3x Flow Control

Product Specification

Brand	D-Link
Product Type	Switch
Product Code	DES-1016A
100Base-TX Interface	16
Auto MDI/MDIX	Yes
Console Port	No
RJ-45 Management Port	No
Alarm Port	No
Compact Flash (CF) Card Slot	No
Secure Digital (SD) Card Slot	No
Switching Capacity	3.2 Gbps
Max. Packet Forwarding Rate	2.38 Mpps
Operation Temperature	0 ~ 40 °C
Storage Temperature	-40 to 70 ˚C
Operation Humidity	10% ~ 90% RH
Storage Humidity	5% ~ 90% RH
Maximum Power Consumption	2.69 W
Power Input	AC: 100V ~ 240V
Packet Buffer Size	2 MB
FAN	Fanless
Dimension	155.7 × 122 × 41 mm
Weight	0.27 kg
