D.K.Instruments Flow Switch Cum Indicator DKL.15.BR

Product Description

• Operation

• The pointer and switch are located in the switch housing

• The fluid enters in at the inlet and moves against the spring- loaded vane

• The vane shaft connected to the pointer rotates according to the amount of fluid advancing against the vane

• The movement of the pointer indicates fluid flow

• The vane shaft also operates a corn that activates a moo switch

• The vane shaft connected between the switch cover and body are sealed with an '0" ring

• The removal of the cover screws permits easy access for connecting to switch terminals or cam adjustments

• Flow Rate Information

• The High Flow Point is the flow rate that will give a full flow reading on the scale

• The Low Flow Point is that lowest flow that will move the flow indkator needle to indicate flow

• A flow below this point is too low for the flow switch to indicate

• The switch selling is the flow at which the switch will acutate

• Principle Features & Benefils

• Unique Concept of variable Area Orifice is incorporated

• All metal construction no tubes of glass or plastic to break

• Spring loaded mechanical design requires no straight pipe run and not affected by orientation

• Limited movement on internal parts minimal wear and down time

• Modular design – reduces Maintenance costs, down time, and production loss

• Direct indication & field adjustable switches - monitors critical Eons and provides alarms

• 1% of rat repeatable switch set point - accurate & tellable through all operation cycles

• Will pass twice the neemum indicated flow or range capacity up to 150%

• Individually calibrated to cusborrer specification - ensures accuracy

• Flow through design - ninirnal pressure loss

• Weatherproof switch cover

• Onentation of enclosure box easily changed

• Adjustable under operating conditions

• Scale is in units (e.g.liters/minute)

• Large range of body materials available

• Size range from from 1/4” to 200mm(8“)

• May be installed in any position

• High switch rating - 5, 10 to 15 Amps

• Act as non-return value

• Certified 'CE"

• Application

• Bearing Lube Oil

• Gear Box Lube oil

• Machine Tool Coolant

• Cooling Water Lines

• Seal Water

• Corrosive Fluids, etc.

• Salient Features

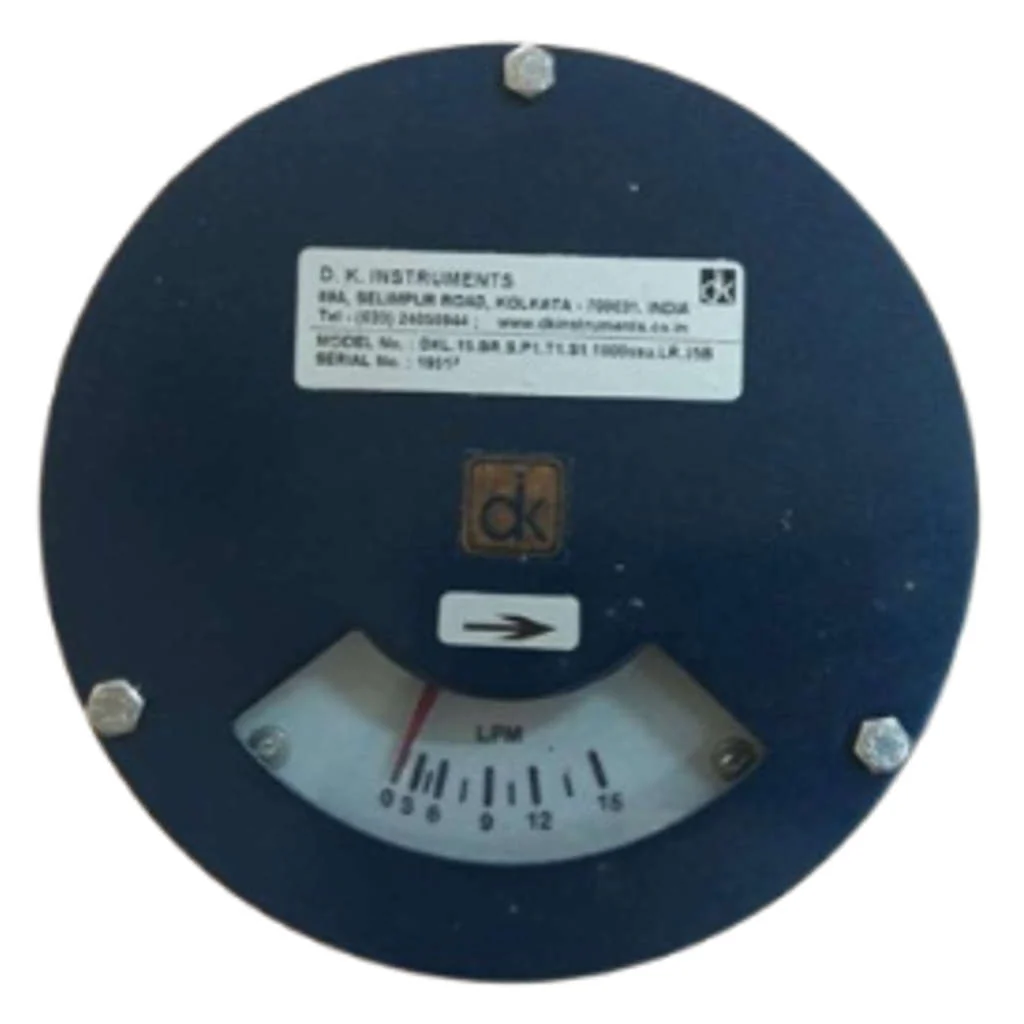

• Spring loaded vane actuated by liquid flow Is connected to a pointer that Indicates a liquid flow reading on a graduated scale

• Switch set point adjusthble

• Individually calibrated scale

• Warranty and support will be provided by vendor

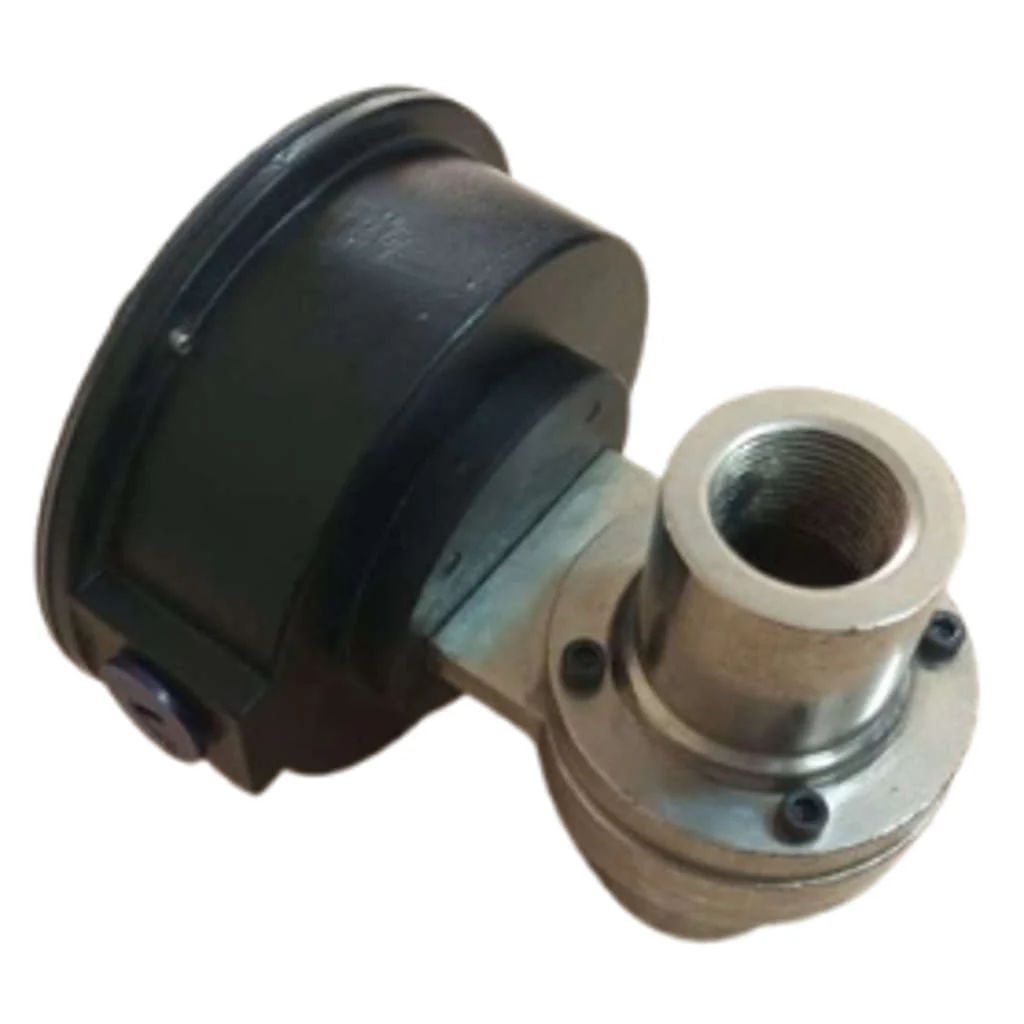

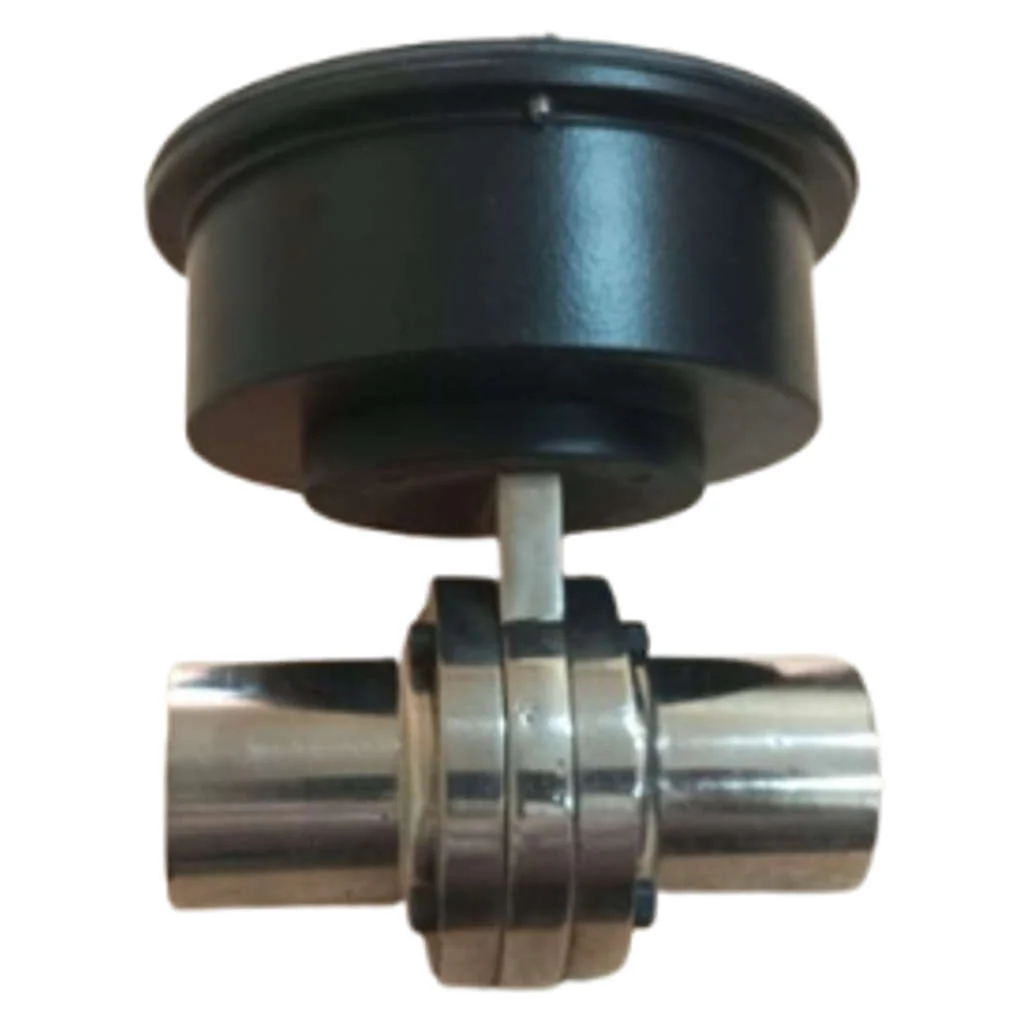

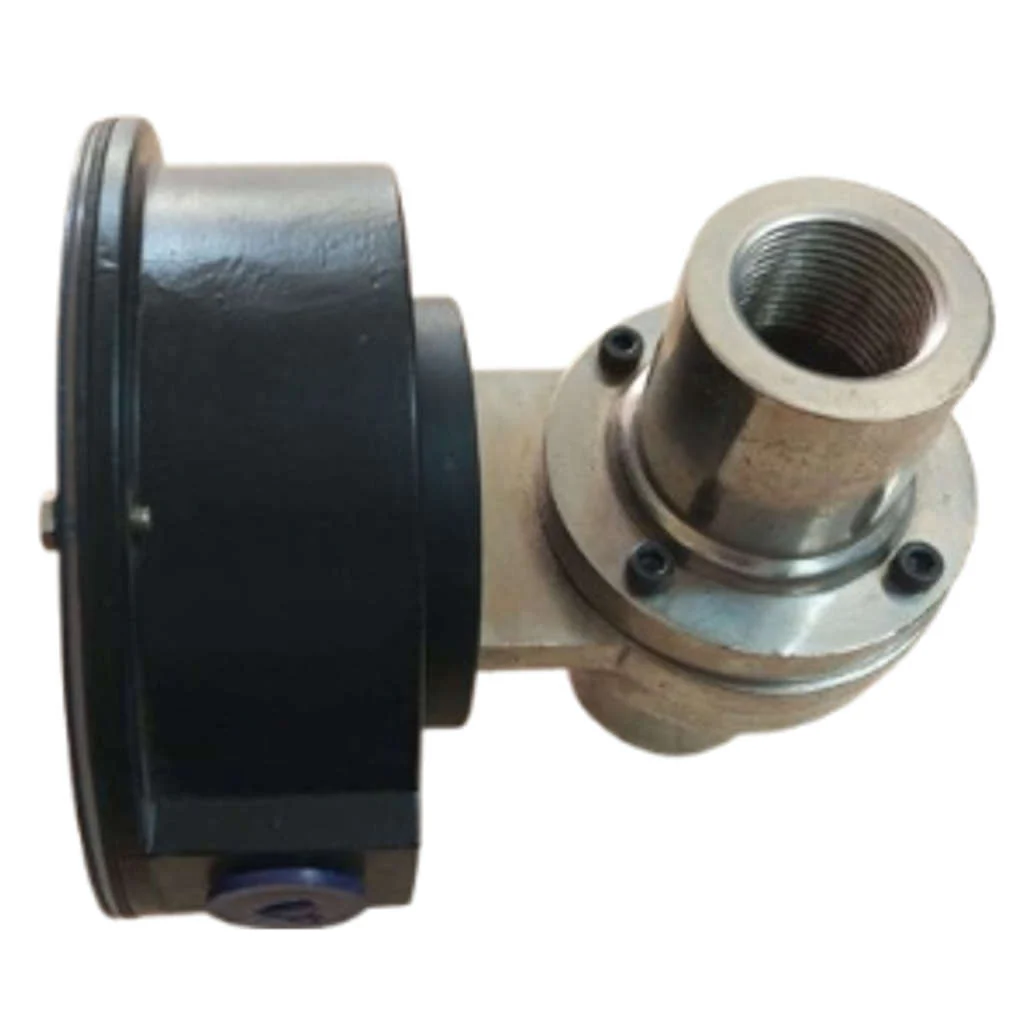

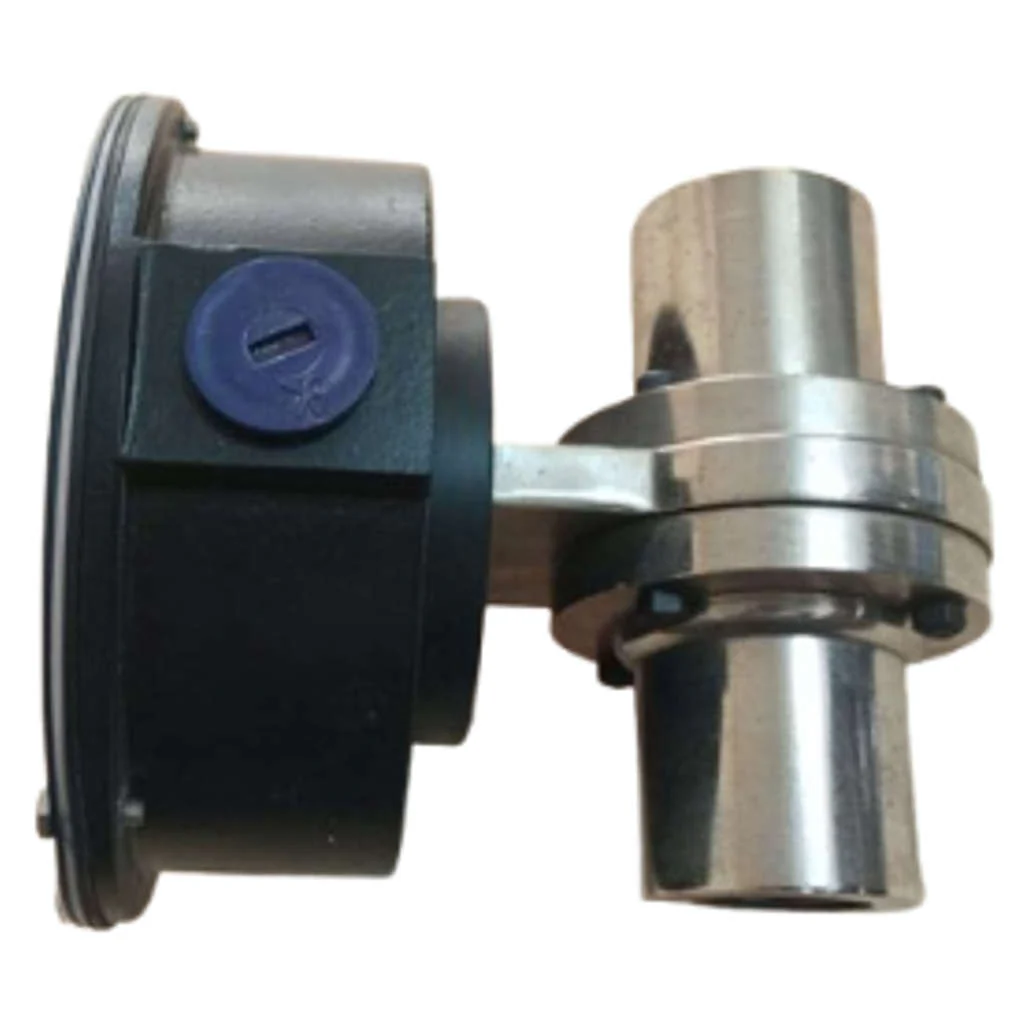

• Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand	D.K.Instruments
Product Type	Flow Switch
Product Model	DKL.15.BR
Type & Flow Range	LPM
Material Of Construction	Bronze
Series	Small
Pressure Rating	≤ 20 BAR
Temperature Rating	-40°C to 100°C (BUNA SEALS)
Indication Output	1SPDT (1NO + 1NC) LCD Display
Direction Of Flow	Left To Right Top To Bottom
Process Connection	Flanged
