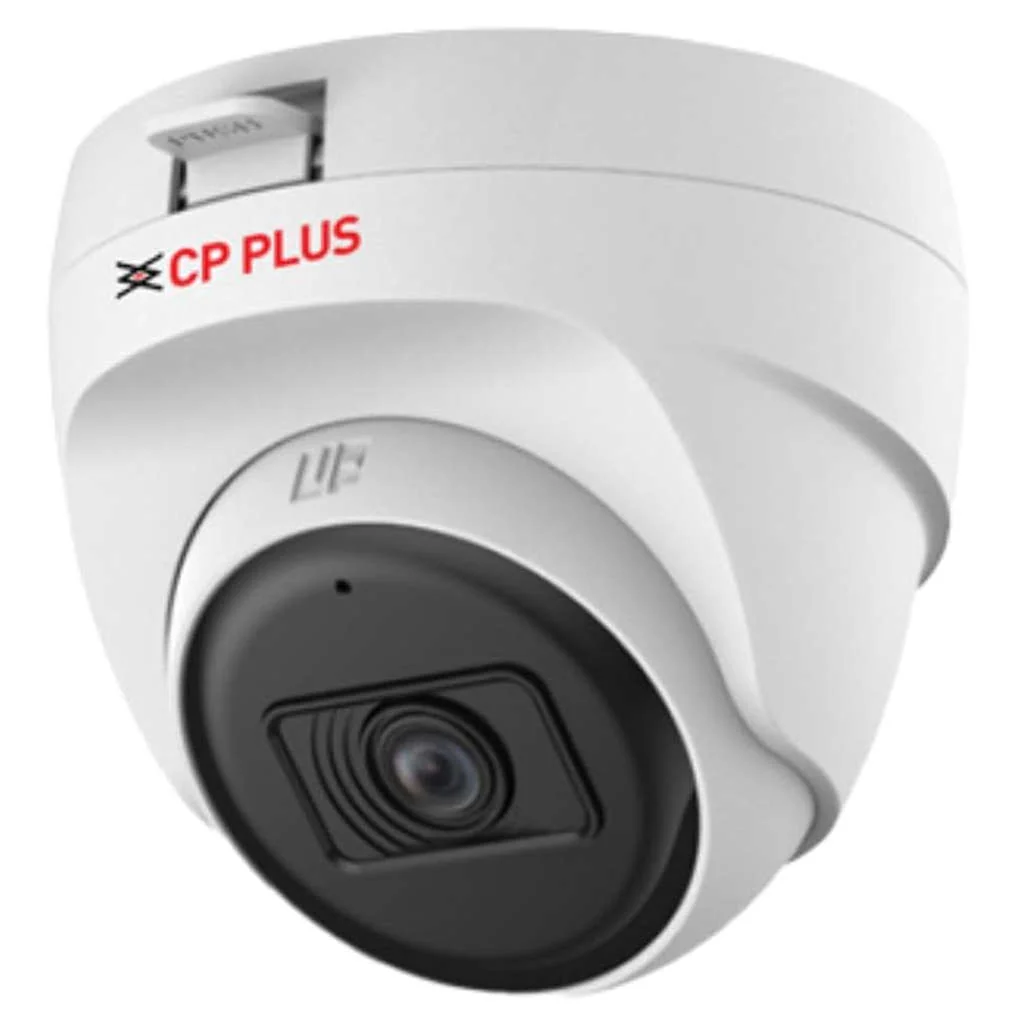

CP Plus 5MP IR Dome Camera CP-URC-DC51PL3C
Product Description
-
Key Features
-
1/3" 5MP CMOS Image Sensor (0.84667 centimeters)
-
DWDR, Day/Night (ICR), 2D DNR, BLC
-
3.6mm Fixed lens
-
IR Range of 30 Mtrs
-
Support Built-in Mic, Smart IR
-
Functions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Built-In Mic
-
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with video, which is essential for comprehensive surveillance
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-URC-DC51PL3C |
|
Image Sensor |
1/3" 5MP CMOS Image Sensor (0.84667 centimeters) |
|
Minimum Illumination |
0.02 [email protected] (Color, 30 IRE), 0.002 [email protected] (B/W, 30 IRE), 0 lux (IR on) |
|
Effective Pixels |
2880 (H) × 1620 (V) |
|
Angle Adjustment |
Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360° |
|
Shutter Speed |
PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s |
|
White Balance |
Auto, Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
1.4 m |
|
DORI Distance |
Lens 3.6mm: 79.4 m (Detect), 31.8 m (Observe), 15.9 m (Recognize), 7.9 m (Identify) |
|
Gain Control(AGC) |
Auto |
|
Lens |
3.6mm Fixed Lens |
|
Angle Of View |
H: 74°, V: 41°, D: 89° |
|
S/N Ratio |
>65dB |
|
Back Light Compensation |
BLC, DWDR |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Resolution |
5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080) |
|
Frame Rate |
CVI: PAL: 5M@25 fps, [email protected] fps, 4M@25 fps, 1080p@25 fps NTSC: 5M@25 fps, 5M@10 fps, 4M@30 fps, 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps |
|
Noise Reduction |
2D DNR |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
IR Control |
Auto, Manual |
|
Audio |
Built-in Mic |
|
IR |
IR Range of 30 Mtr. |
|
IR Mode |
Smart IR |
|
Iris Control |
Fixed |
|
IR Number |
2 IR |
|
Power Source |
12 VDC ± 30% |
|
Power Consumption |
Maximum 2.2 W (12 VDC, IR on) |
|
Anti-Corrosion Level |
Basic Protection |
|
Operating Temperature |
-40°C to +55°C (-40°F to +131°F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
-40 °C to +55 °C (-40 °F to +131 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Casing |
Plastic |
|
Dimension |
85 × 77.1mm |
|
Weight |
0.11 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
8.5 x 7.7 x 7.7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.300 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
