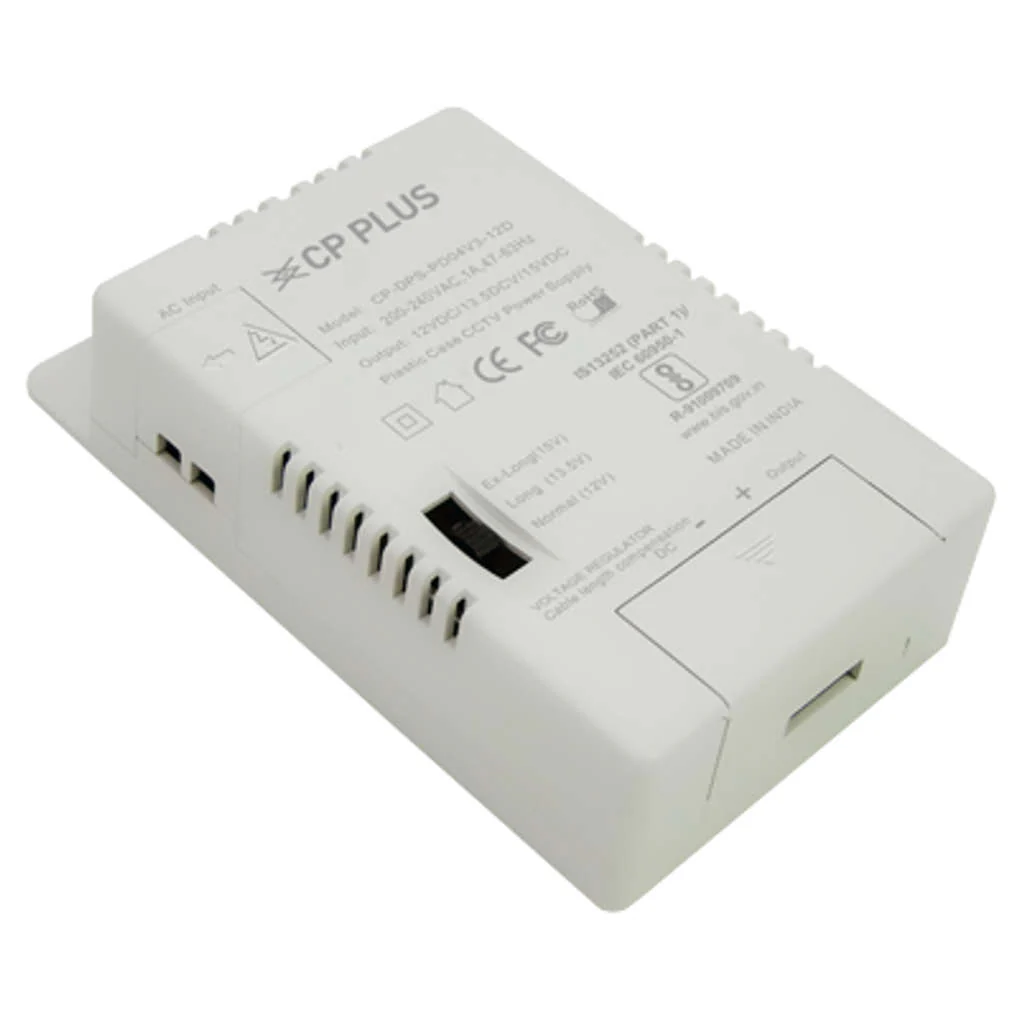

CP Plus 4 Channel Power Supply CP-DPS-PD04V3-12D
Product Description
-
2 Output Terminals for Easy Installation
-
Short Circuit, Over Voltage and Over Current Protection
-
Ac I/P & DC O/P Terminals Are Covered for Safety
-
Power On Indicator
-
Cable Compensation Switch
-
Built-in EMI Filter to Nullify Interference
-
100% Full Load Burn-in Test
-
Cooling by Free Air Convection
-
Wall Mount Option Along with Desktop
Product Specification
| Brand | CP Plus |
| Product Type | SMPS |
| Product Model | CP-DPS-PD04V3-12D |
| Input Voltage | 200 ~ 240VAC |
| Input AC Frequency Range | 47 ~ 63Hz |
| Input Current (Typical) | 0.5A/230VAC |
| Power Cord | 2 Pin (L & N) |
| Standby Power Consumption | ≤0.5W |
| Inrush Current (Typical) | ≤40A@230VAC |
| Efficiency (Typical) | 85% |
| Output Voltage | 12V in Normal Mode |
| Output Current | 3.0A in Normal Mode |
| Output Current range | 0 ~ 3.0A in Normal Mode |
| Rated Power | 36W in Normal Mode |
| Ripple & Noise (Maximum) | ≤240mV |
| Line Regulation | 2% |
| Load Regulation | 3% |
| Power On Indicator | Support |
| Cable Compensation Switch | Support, 3 Modes (Normal, Long, Ex. Long) |
| No. of Output Ports | Single Port |
| Short-Circuit Protection | Support |
| Dielectric Strength (Hi-pot) | 3.0KV |
| Insulation Resistance | 100MΩ@500VDC |
| Surge Immunity | 1.0KV |
| Operating Temperature | -10 ~ +45°C |
| Operating Humidity | 20 ~ 90% RH Non-condensing |
| Storage Temperature | -10 ~ +45°C |
| Storage Humidity | 10 ~ 95% RH |
| Dimension(L x W x H) | 132.7 x 77.7 x 33.2 mm |
| Weight | 0.144 kg without Power Cord and Packing Box |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimensions(L x W x H) | 13.27 Z 7.77 X 3.32 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.144 kg |
| Generic Name | SMPS |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
