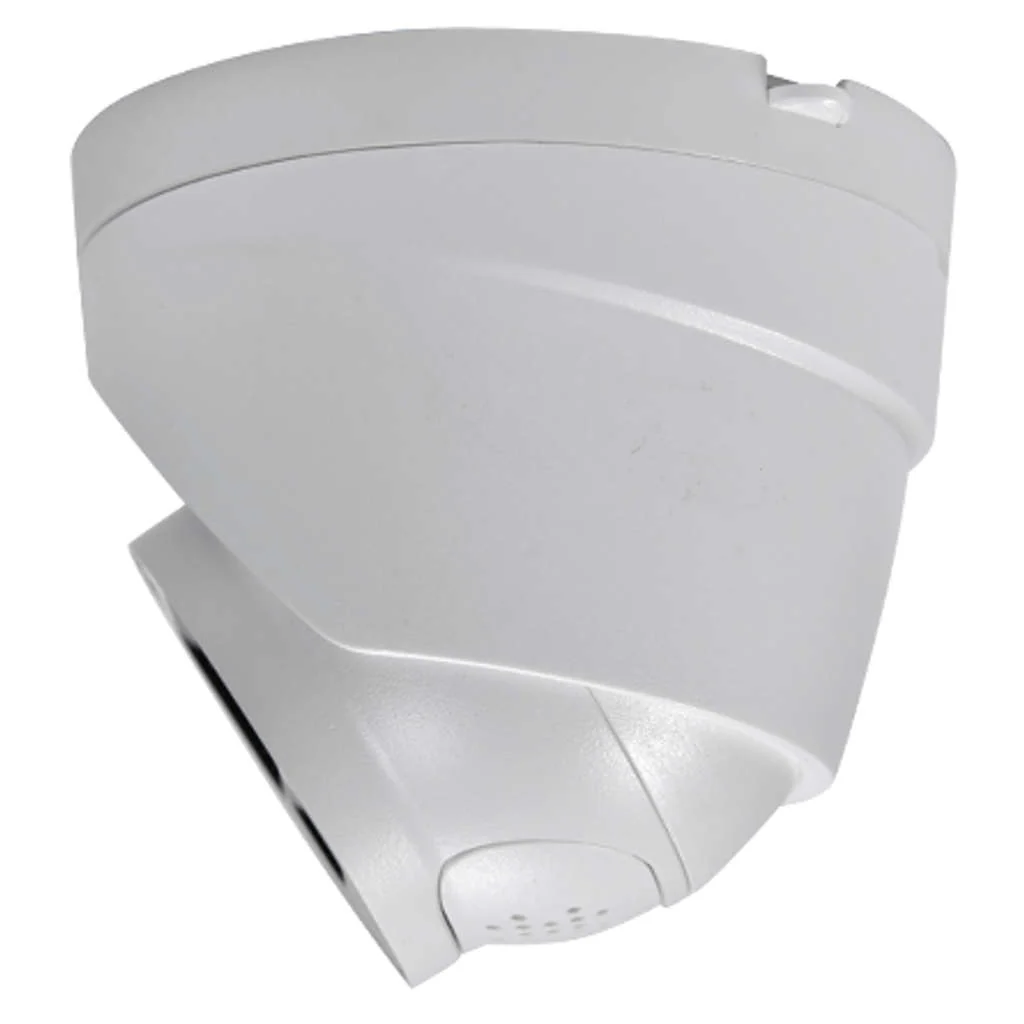

CP Plus 2MP Dual Light Dome Camera CP-UNC-DA21L3B-LQ-0360

Product Description

Key Features
1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters)
Maximum 2MP (1920 × 1080)@1–25/30 fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
Support Built-in Mic, Built-in speaker
3.6mm fixed Lens
DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE,
Functions
True Day/Night (ICR)
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
Regions of Interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Smart IR
Smart IR technology can display image in the environment of low illuminance or completely dark environment
According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target
Instastream
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame

Product Specification

Brand	CP Plus
Product Type	CCTV Camera
Product Model	CP-UNC-DA21L3B-LQ
Image Sensor	1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters)
Effective Pixels	1920 (H) × 1080 (V)
Minimum Illumination	0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
RAM	128 MB
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
ROM	128 MB
Gain Control (AGC)	Auto/Manual
Lens Type	Fixed-focal
Maximum Aperture	F1.4
Lens Mount	M12
Close Focus Distance	1.1 m
Day/Night	Auto(ICR)/Color/B/W
DORI Distance	53.8 m (Detect), 21.5 m (Observe), 10.8 m (Recognize), 5.4 m (Identify)
Lens	3.6mm fixed Lens
S/N Ratio	>58dB
Back Light Compensation	BLC/ HLC/ DWDR
IR Control	Auto, Manual
IR Number	1 IR LED, 1 Warm light
IR	IR Range of 30 Mtr.
Warm Light	Warm Light Range of 30 Mtr.
Smart IR	Support
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Stream Capability	Triple stream
Frame Rate	Main stream: 2MP (1920 × 1080)@1–25/30 fps Sub stream 1: 720P (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Angle of view	H: 86°, V: 46°, D: 103°
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Audio	Built-in Mic
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Video Format	PAL/NTSC
ROI	Support (4 areas)
Audio Compression	G.711a, G.711Mu, PCM,
Protocol	FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Ethernet	RJ-45 (10/100 Base-T)
Iris Control	Fixed
IMD (Intelligent Motion Detection)	Support the classification and accurate detection of human and vehicle
Mirror Function	Support
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Alarm Event	Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception
Browser	IE, Chrome, Firefox
User/Host	6 (Total bandwidth: 36 M)
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 1.8 W (12 VDC), 2.5 W (PoE); Maximum: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Humidity	≤95%(RH), non-condensing
Casing	Metal + Plastic
Dimensions	100.9 mm × 109.9 mm
Weight	320g
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) L x B x H	10.09 x 10.99 x 10.99
Unit Of Measurement	1 Piece
Weight	0.32 kg
Generic Name	Dome Camera
Manufacturer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Packer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Country Of Origin	India

$15.42

Original: $51.40

-70%

CP Plus 2MP Dual Light Dome Camera CP-UNC-DA21L3B-LQ-0360—

$51.40

$15.42

Original: $51.40

-70%

CP Plus 2MP Dual Light Dome Camera CP-UNC-DA21L3B-LQ-0360—

$51.40

$15.42
