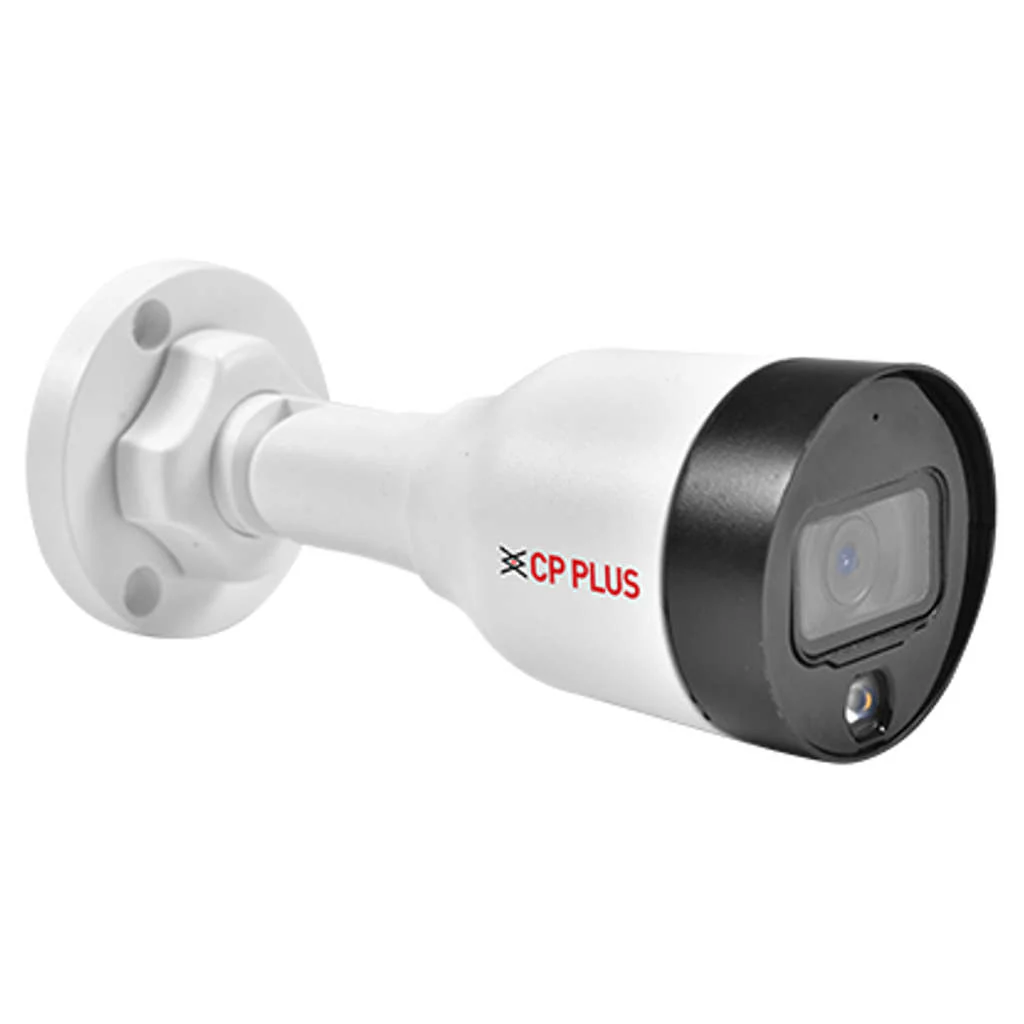

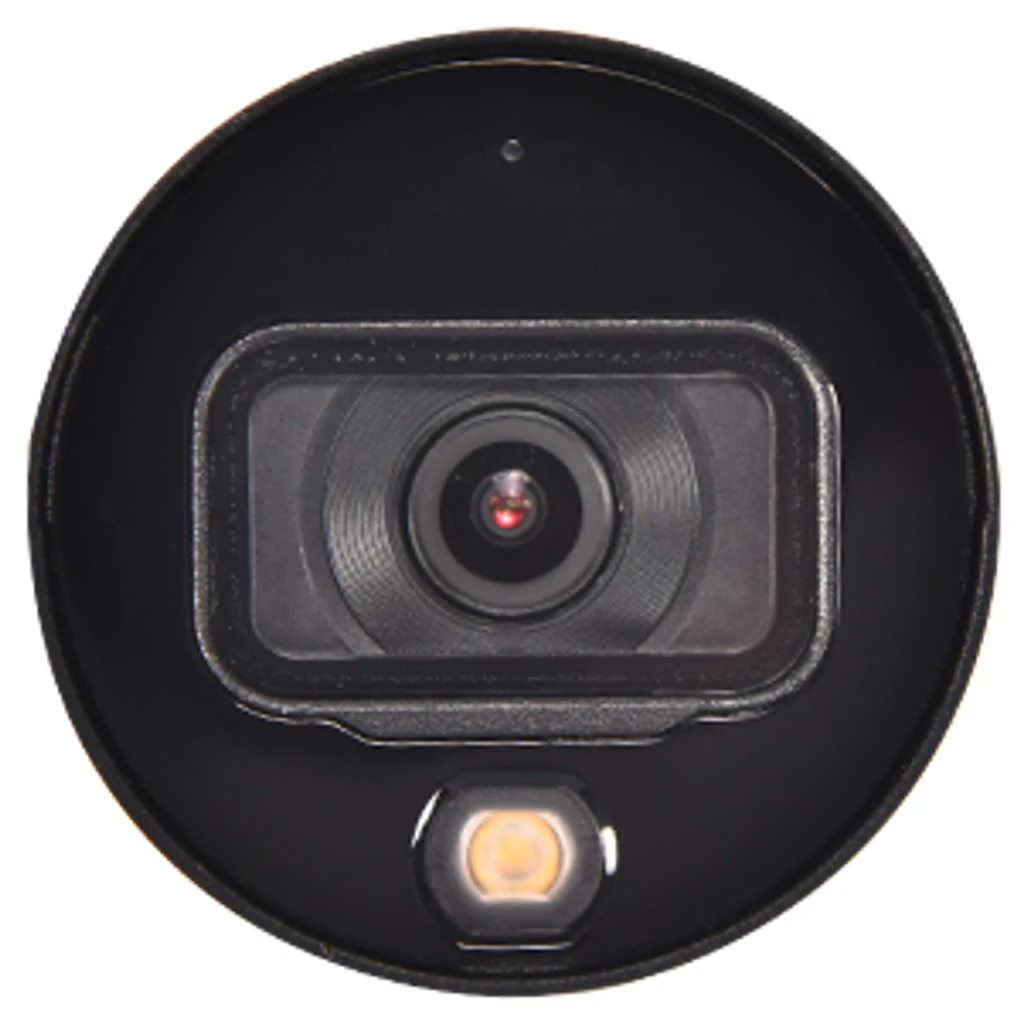

CP Plus 2MP Built-In-Mic Dual Light Bullet Camera CP-UNC-TA21L3C-LQ-0360
Product Description
-
Key Features
-
1/2.8" 2MP PS CMOS Image Sensor (0.9071 Centimeters)
-
Maximum 2MP (1920 ×1080)@25/30 fps
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
Support Built-in Mic
-
3.6mm fixed Lens
-
DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
-
IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
-
Instastream
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Smart IR technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-TA21L3C-LQ |
|
Image Sensor |
1/2.8" 2MP PS CMOS Image Sensor (0.9071 Centimeters) |
|
Effective Pixels |
1920 (H) × 1080 (V) |
|
Minimum Illumination |
0.005 [email protected] (Color, 30 IRE), 0.0005 [email protected] (B/W, 30 IRE), 0 lux (IR on) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
RAM |
128 MB |
|
ROM |
128 MB |
|
DORI Distance |
58.9 m (Detect), 23.6 m (Observe), 11.8 m (Recognize), 5.9 m (Identify) |
|
Gain Control (AGC) |
Auto/Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F1.6 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
1.3 m |
|
Lens |
3.6mm fixed Lens |
|
S/N Ratio |
>56dB |
|
Back Light Compensation |
BLC/ HLC/ DWDR |
|
IR Number |
1 (Multi-core (IR + warm) light) |
|
IR |
IR Range of 30 Mtr. |
|
Warm Light |
Warm Light Range of 30 Mtr. |
|
Angle of View |
H: 87°, V: 44°, D: 105° |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
IR Control |
Auto, Manual |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
|
Resolution |
2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
|
stream Capability |
Triple stream |
|
Frame Rate |
Main stream 2MP (1920 × 1080), 1.3MP (1280 × 960) ,720p (1280 × 720)@25/30fps Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps |
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Audio |
Built-in Mic |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Video Format |
PAL/NTSC |
|
Smart IR |
Support |
|
Smart Illumination |
Support |
|
OSD |
Camera title, Date & Time |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower) |
|
Audio Compression |
G.711a, G.711Mu, PCM, G.726, AAC |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
|
Protocol |
SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
SDK and API |
Support |
|
Iris Control |
Fixed |
|
Mirror Function |
Support |
|
User/Host |
6 (Total bandwidth: 36 M) |
|
Browser |
IE, Chrome, Firefox |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Alarm Event |
Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
|
Cyber Security |
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 1.4 W (12 VDC), 2.2 W (PoE); Maximum: 3.3 W (12 VDC), 4.4 W (PoE) (H.265 + intelligence on + warm light intensity) |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95%(RH), non-condensing |
|
Weatherproof Standard |
IP67 |
|
Casing |
Metal + Plastic |
|
Dimension |
162.6 mm × 70 mm× 70 mm |
|
Weight |
220g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
16.26 x 7 x 7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.22 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
Original: $39.93
-70%$39.93
$11.98
