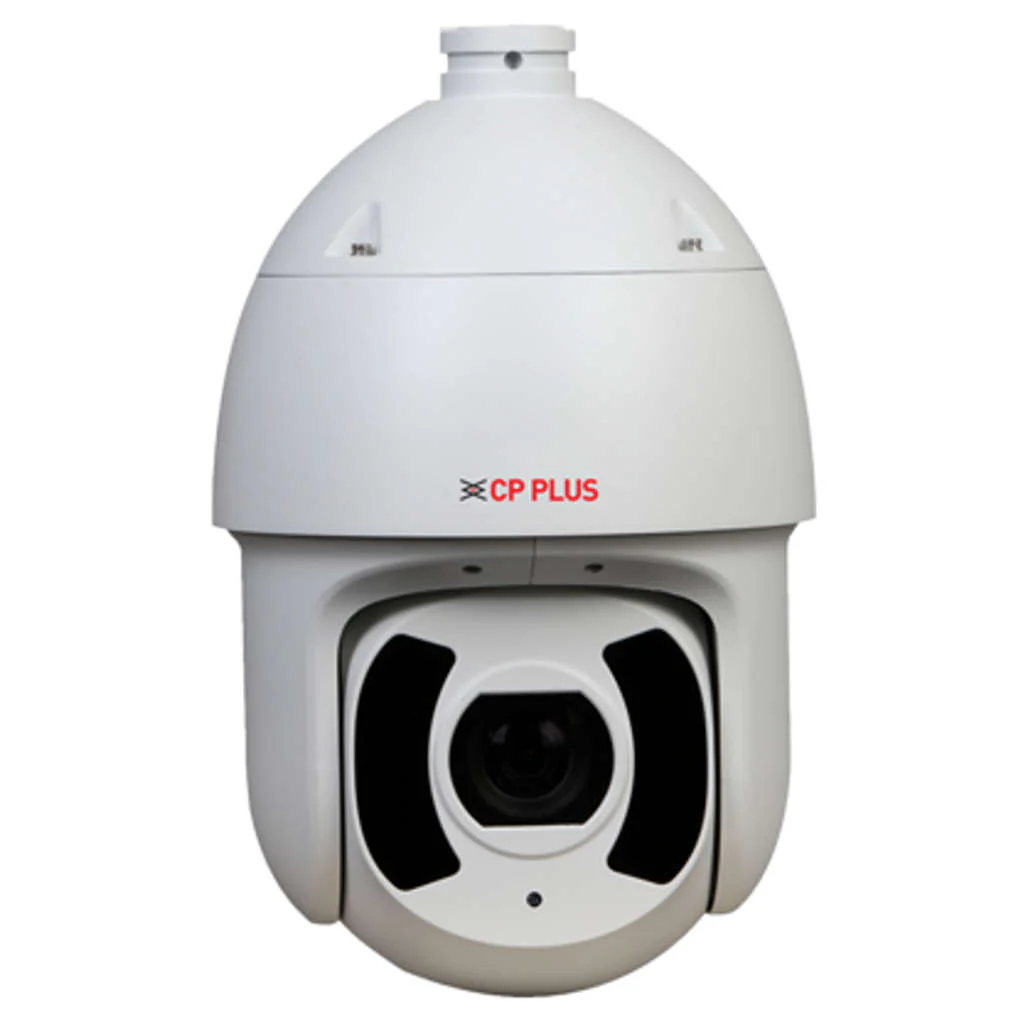

CP Plus 2MP 45x Full HD Network IR PTZ Camera CP-UNP-F4521L30-DPQ
Product Description
-
Key Features
-
1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeter)
-
1920 (H) × 1080 (V)@ 25/30fps
-
Powerful 45x Optical and 16x Digital zoom
-
WDR(120dB), 2D/3D DNR, Day/Night(ICR), ROI, Defog, AWB, BLC, HLC, AGC
-
Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern
-
Support Starlight Technology
-
IR Range of 300 Mtr.
-
IP67, IK10, Support PoE+
-
When a scene is partly dark and partly bright, that is the dynamic range that distorts images due to this difference inthe lighting
-
WDR technology provides you balanced lighting for a clear and vivid image throughout the day
-
WDR technology can be installed at entry/exit points of any building structure, jewellery shops, outdoor location among so many other places
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
This camera is widely used to provide sharper and clearer picture quality with the help of its exceptional starlight sensitivity as the camera improves night vision in low light conditions
-
This technology is useful in conditions with extremely low light as the starlight technology turns almost completely dark images into those of clear colors
-
This product has been inculcated with the IK10 vandal resistance technology which is the topmost mechanical protection in the surveillance industry
-
This technology enables your camera in developing a strong and robust appearance that can’t be defeated by water, dust or even severe shocks as the powerful housing of this camera deters any damage from occurring
Product Specification
|
Brand |
CP Plus |
|
Product Type |
PTZ Camera |
|
Product Model |
CP-UNP-F4521L30-DPQ |
|
Image Sensor |
1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter) |
|
Effective Pixels |
1920(H) x 1080(V) |
|
Minimum Illumination |
Color: 0.005 [email protected], B/W: 0.0005 [email protected], 0 [email protected] (IR on) |
|
Focus Control |
Auto/Semi-Auto/Manual |
|
RAM |
512 MB |
|
ROM |
256 MB |
|
White Balance |
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
|
Lens |
3.95 mm–177.75 mm |
|
Maximum Aperture |
F1.6–F4.95 |
|
Angle of view |
H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1° |
|
Close Focus Distance |
0.1 Mtr. – 1 Mtr. |
|
Iris Control |
Auto/Manual |
|
DORI Distance |
2451.7 Mtr. (Detect), 972.9 Mtr. (Observe), 490.3 Mtr. (Recognize), 245.2 Mtr. (Identify) |
|
Electronic Shutter |
1/1 s–1/30,000 s |
|
Back Light Compensation |
BLC / HLC / WDR(120dB) |
|
S/N Ratio |
≥ 55 dB |
|
Optical Zoom |
45× |
|
Digital Zoom |
16x |
|
Image Rotation |
180° |
|
Pan & Tilt Range |
Pan: 0° to 360° endless, Tilt: –20° to +90°, auto flip 180° |
|
Power-off Memory |
Support |
|
Manual Speed |
Pan: 0.1° ~260° /s, Tilt: 0.1° ~120° /s |
|
Preset Speed |
Pan: 300°/s, Tilt: 200°/s |
|
Image Stabilization |
Electronic (EIS) |
|
Privacy Masking |
Up to 24 Areas can be set, with up to 8 areas in the same view |
|
Special Features |
Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan |
|
Idle Motion |
Preset/ Tour/ Pattern/ Scanning |
|
Defog |
Electronic |
|
IR Distance |
300 Mtr. |
|
IR Number |
6 (IR) |
|
IR Control |
Zoom Prio, Manual, Smart IR, Off |
|
Day/Night |
Auto (ICR)/Color/B/W |
|
Gain Control |
Auto/Manual |
|
Video Format |
PAL/NTSC |
|
OSD |
Camera title, Date & Time |
|
Video Compression |
Instastream, H.265, H.264H, H.264B, H.264, MJPEG(Sub Stream) |
|
Resolution |
2MP (1920 × 1080), 1MP (1280 × 720), D1 (704 × 576), CIF (352 × 288) |
|
Frame Rate |
Main stream: 2MP/1MP/D1 @(1–25/30 fps) Sub stream 1: 2MP/1MP/D1 @(1–25/30 fps) Sub stream 2:D1/CIF @(1–25/30 fps) Sub stream 3: D1/CIF @(1–25/30 fps) |
|
Stream Capability |
Quad Stream |
|
Bit Rate |
H264: 64 kbps–8192 kbps, H265: 25 kbps–6400 kbps |
|
Bit Rate Control |
CBR/VBR |
|
Motion Detection |
Support |
|
ROI |
Support |
|
Noise Reduction |
2D/3D DNR |
|
Two-way talk |
Support |
|
Audio In |
1 channel |
|
Audio Out |
1 channel |
|
Audio Compression |
PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1 |
|
Alarm I/O |
7/2 channel In/Out |
|
User/Host |
20 (total bandwidth: 64 Mbps) |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Alarm Event |
Motion/Tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection |
|
Protocol |
IPv4, IPv6, HTTP, HTTPS, ARP, RTSPS, SMTP, SFTP, DHCP, DNS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP V1/V2/V3, ICMP,IGMP, ONVIF (Profile S, Profile G, Profile T), Unicast, Multicast |
|
IVS (Optional) |
Tripwire, Intrusion, Object Abandon/ Missing, IMD (Intelligent motion detection), Face Detection |
|
Cyber Security |
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
|
Storage |
SFTP, NAS, Micro SD card (Support max. 512 GB) |
|
Browser |
Microsoft Edge and Chrome |
|
Operating Temperature |
–40 °C to +70 °C |
|
Operating Humidity |
≤ 95% RH, Non condensing |
|
SR 332 |
Quality Level II |
|
Weatherproof Standard |
IP67, IK10, TVS 8000V lightning proof, surge protection, voltage transient protection |
|
Certificates |
MTBF Certificate from STQC, EMI/EMC, ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
|
Power Consumption |
24 VDC, 2.5 A ± 25%: Basic: 13 W, Max: 25 W (illuminator + PTZ) , PoE+ (802.3at): Basic: 13 W, Max: 25 W (illuminator + PTZ) |
|
Casing |
Metal |
|
Dimension |
337.4 × 209 mm |
|
Weight |
5.9 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
33.74 x 2.09 x 2.09 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
5.9 kg |
|
Generic Name |
PTZ Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
