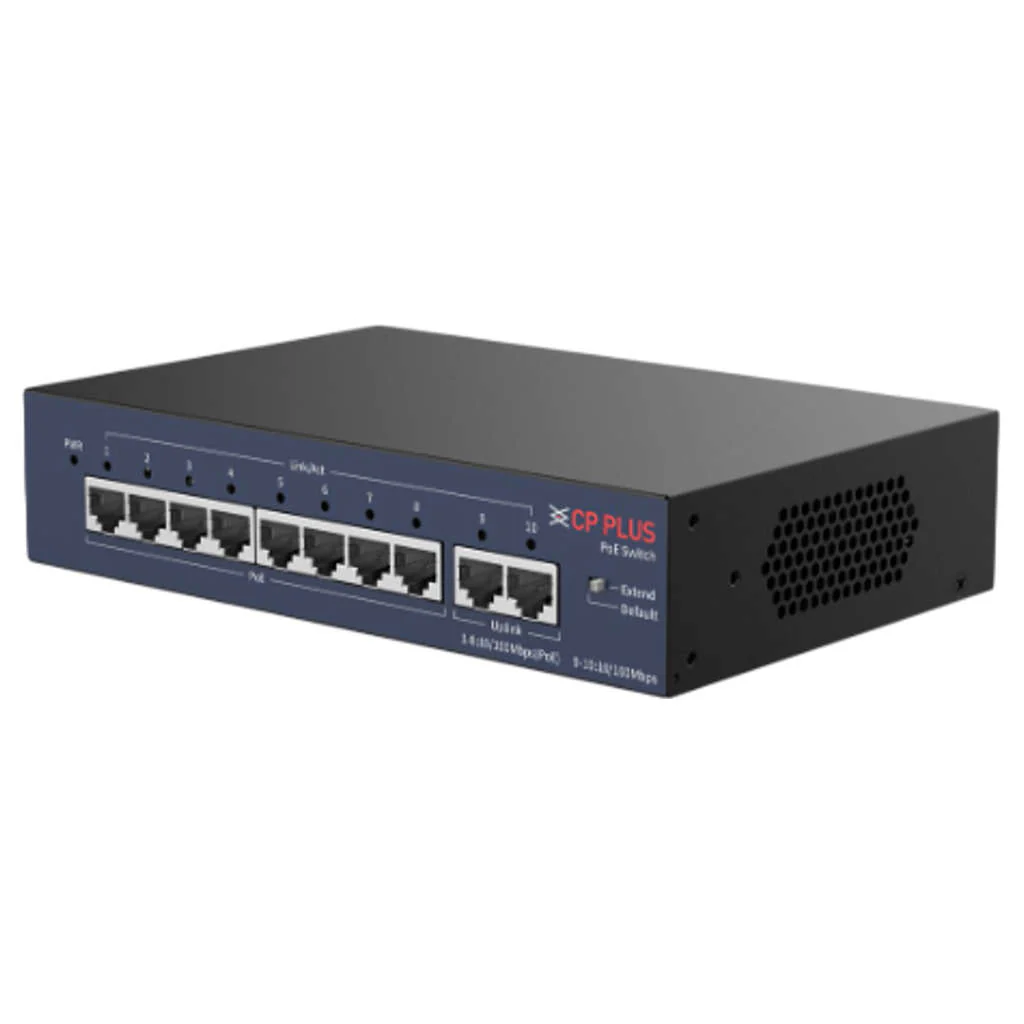

CP Plus 10 Ports Switch With 8 PoE & 2 Uplink Ports CP-UNW-HPU8H2-96
Product Description
-
Key Features
-
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100 Mbps (Uplink)
-
IEEE802.3, IEEE802.3u, IEEE802.3x
-
Transmission distance of ports 1–8 can reach up to 250 Mtr., Negotiation speed can be reduced to 10 Mbps
-
Easy and safe installation: wall-mounting, desktop, Plug-and-play
-
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
-
This switch supports plug-and-play installation for quick device connectivity
-
An intuitive web-based interface enables easy configuration, monitoring, and port management
-
Clear LED indicators provide instant status of power, PoE, and network activity, ensuring smooth and reliable operation
-
LED lights have been installed in this Ethernet Switch to work as indicators for you to realize simple work statement reminders and clear the troubles
-
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time, enabling bidirectional network data transmissions to save time and money
Product Specification
|
Brand |
CP Plus |
|
Product Type |
PoE Switch |
|
Product Model |
CP-UNW-HPU8H2-96 |
|
Network Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Switching Capacity |
1.6 Gbps |
|
Packet Forwarding Rate |
1.488 Mbps |
|
MAC Address List |
2K |
|
Packet Buffer |
768 Kbit |
|
DIP switch |
Long Distance PoE: The transmission distance of ports 1–8 can reach up to 250 Mtr., The negotiation speed can be reduced to 10 Mbps |
|
ESD Protection |
Air discharge: 8KV, Contact discharge: 6KV |
|
Lightning Protection |
Common mode: 6KV |
|
PoE Pin Assignment |
1/2+, 3/6- |
|
Long Distance PoE Transmission |
Support |
|
Description of Function Slots |
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100 Mbps (Uplink) |
|
Jumbo Frame |
2048 Byte |
|
PoE Power |
Port 1-8≤30 W, total≤96 W |
|
Power Supply |
Built-in power supply:200-240 VAC, 50/60 Hz, Maximum 1.5A |
|
Power Consumption |
Idling: 0.6W, Full load: 96W |
|
Operating Temperature |
–10°C to +45°C |
|
Operating Humidity |
10%–90% (RH), non-condensing |
|
Storage Temperature |
–40°C to +75°C |
|
Storage Humidity |
5%–95% (RH), non-condensing |
|
Casing |
Sheet Metal |
|
Dimensions |
200mm × 139.9mm × 44mm |
|
Weight |
610 g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
20 x 13.99 x 4.4 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.610 kg |
|
Generic Name |
POE Switches |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
Original: $19.70
-70%$19.70
$5.91
