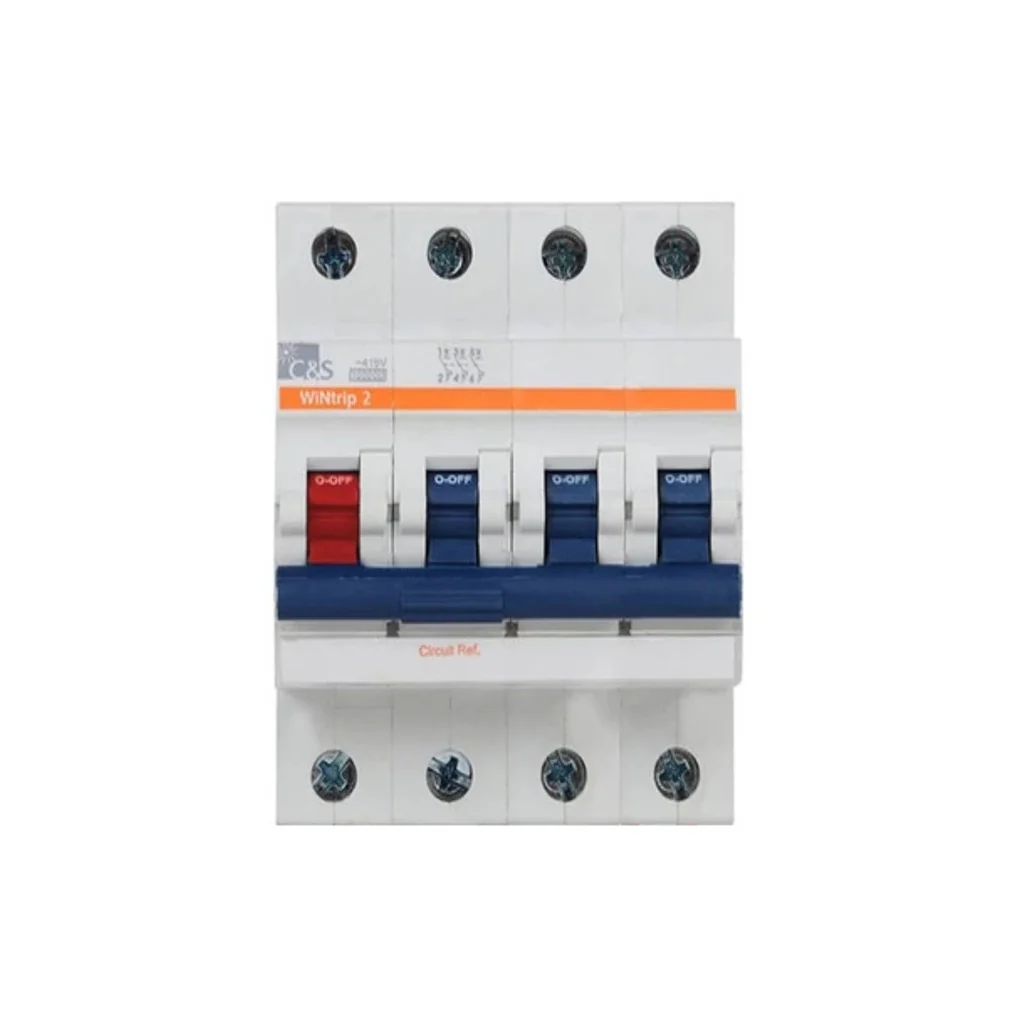

C&S WiNtrip2 K-Curve MCB Three Pole+Neutral 0.5A-63A
Product Specification
|
Brand |
C&S |
|
Product Type |
Miniature Circuit Breaker |
|
Series |
WiNtrip2 |
|
Product Code | Rated Current |
CSMBS3K0.5N | 0.5 A CSMBS3K1N | 1 A CSMBS3K2N | 2 A CSMBS3K3N | 3 A CSMBS3K4N | 4 A CSMBS3K5N | 5 A CSMBS3K6N | 6 A CSMBS3K10N | 10 A CSMBS3K16N | 16 A CSMBS3K20N | 20 A CSMBS3K25N | 25 A CSMBS3K32N | 32 A CSMBS3K40N | 40 A CSMBS3K50N | 50 A CSMBS3K63N | 63 A |
|
Curve Type |
K Curve |
|
Breaking Capacity |
10 kA |
|
No of Poles |
3+N |
|
Current limiting design |
class 3 |
|
Protection Class |
IP 20 |
|
Rated Frequency |
50/60 Hz |
|
Standard |
IS/IEC60947-2 |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Original: $22.29
-70%$22.29
$6.69
Description
Product Specification
|
Brand |
C&S |
|
Product Type |
Miniature Circuit Breaker |
|
Series |
WiNtrip2 |
|
Product Code | Rated Current |
CSMBS3K0.5N | 0.5 A CSMBS3K1N | 1 A CSMBS3K2N | 2 A CSMBS3K3N | 3 A CSMBS3K4N | 4 A CSMBS3K5N | 5 A CSMBS3K6N | 6 A CSMBS3K10N | 10 A CSMBS3K16N | 16 A CSMBS3K20N | 20 A CSMBS3K25N | 25 A CSMBS3K32N | 32 A CSMBS3K40N | 40 A CSMBS3K50N | 50 A CSMBS3K63N | 63 A |
|
Curve Type |
K Curve |
|
Breaking Capacity |
10 kA |
|
No of Poles |
3+N |
|
Current limiting design |
class 3 |
|
Protection Class |
IP 20 |
|
Rated Frequency |
50/60 Hz |
|
Standard |
IS/IEC60947-2 |
|
Warranty |
As Per Manufacturer Terms & Conditions |
