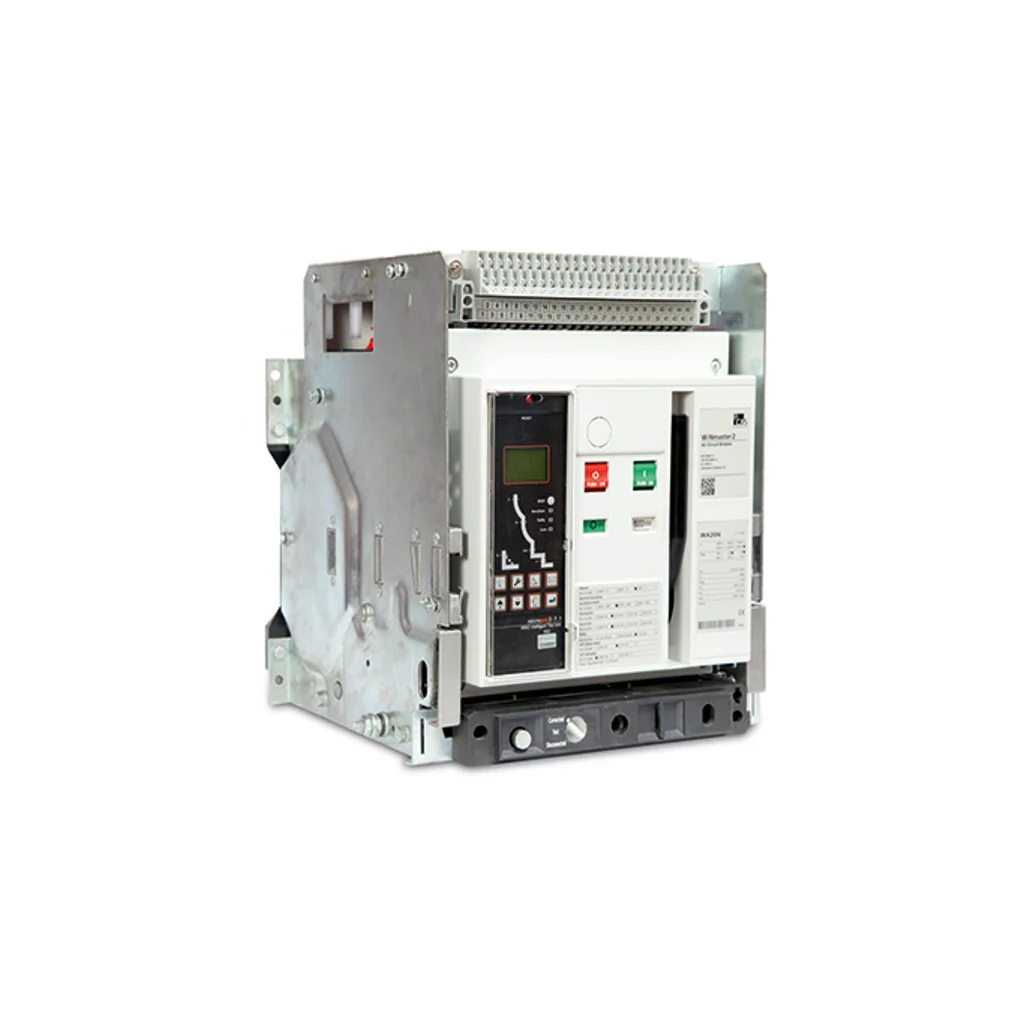

C&S WiNmaster2 Electrical Drawout ACB Three Pole 630A-2500A
Product Specification
|
Brand |
C&S |
|
Product Type |
Air Circuit Breaker |
|
Series |
WiNmaster2 |
|
Product Code | Rated Current(A) |
WX06N3PEDOA(S) | 630 WX08N3PEDOA(S) | 800 WX10N3PEDOA(S) | 1000 WX12N3PEDOA(S) | 1250 WX16N3PEDOA(S) | 1600 WX20N3PEDOA(S) | 2000 WX25N3PEDOA(S) | 2500 |
|
Breaking Capacity lcu=lcs=lcw (1sec) |
50kA |
|
Rated operational voltage |
415 V |
|
Utilisation Category |
B |
|
Number of Poles |
3 |
|
Intelligent Release |
Micropro2-3.1 |
|
Version |
Drawout |
|
Type of Operation |
Electrical |
|
Terminal Type |
Horizontal |
|
Auxiliary Switch Contacts |
6NO+6NC |
|
Release Type |
Microprocessor |
|
Dimension(mm) |
433x375x403 |
|
Standards |
IS/IEC 60947-2 & IEC 60947-2 |
|
Warranty |
1 Year |
Original: $2,862.74
-70%$2,862.74
$858.82
Description
Product Specification
|
Brand |
C&S |
|
Product Type |
Air Circuit Breaker |
|
Series |
WiNmaster2 |
|
Product Code | Rated Current(A) |
WX06N3PEDOA(S) | 630 WX08N3PEDOA(S) | 800 WX10N3PEDOA(S) | 1000 WX12N3PEDOA(S) | 1250 WX16N3PEDOA(S) | 1600 WX20N3PEDOA(S) | 2000 WX25N3PEDOA(S) | 2500 |
|
Breaking Capacity lcu=lcs=lcw (1sec) |
50kA |
|
Rated operational voltage |
415 V |
|
Utilisation Category |
B |
|
Number of Poles |
3 |
|
Intelligent Release |
Micropro2-3.1 |
|
Version |
Drawout |
|
Type of Operation |
Electrical |
|
Terminal Type |
Horizontal |
|
Auxiliary Switch Contacts |
6NO+6NC |
|
Release Type |
Microprocessor |
|
Dimension(mm) |
433x375x403 |
|
Standards |
IS/IEC 60947-2 & IEC 60947-2 |
|
Warranty |
1 Year |
