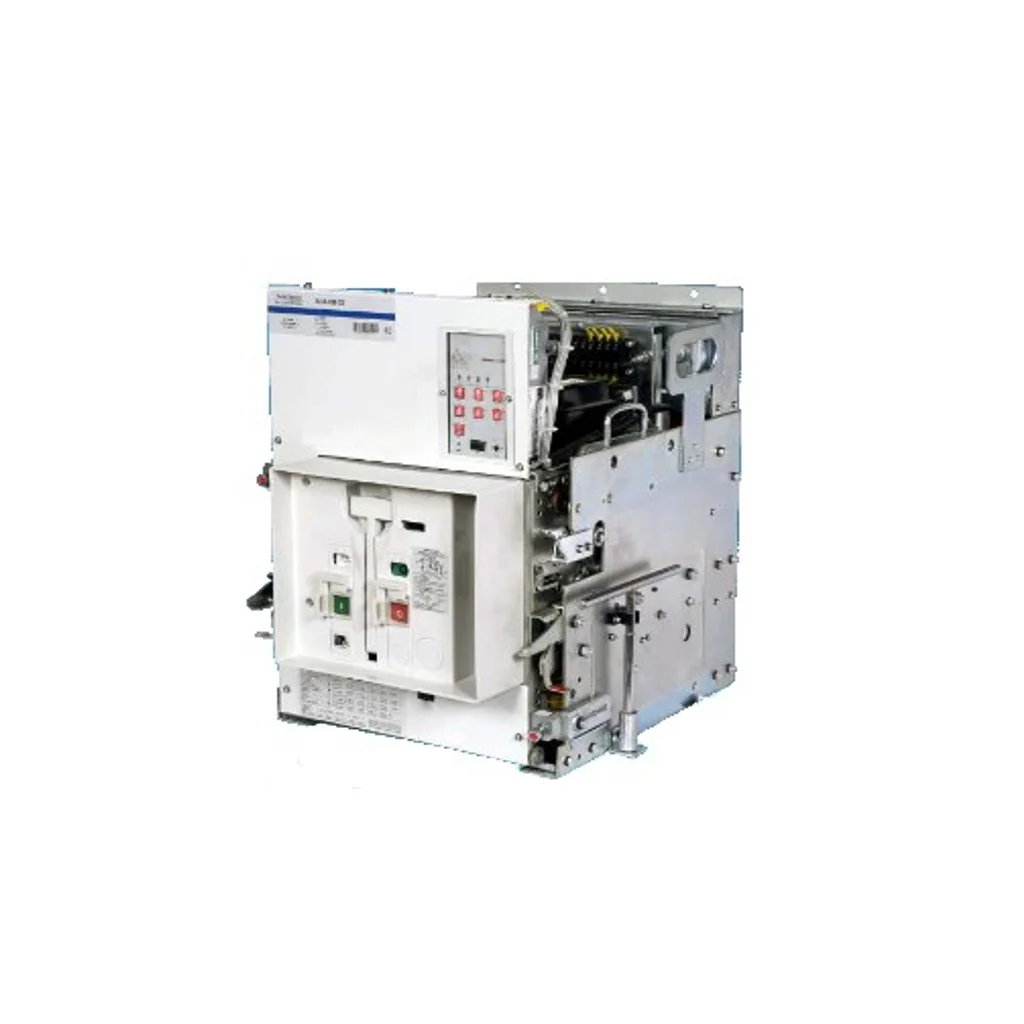

C&S AH/AHA Electrical Fixed ACB Three Pole 630A-2500A
Product Specification
|
Brand |
C&S |
|
Product Type |
Air Circuit Breaker |
|
Series |
AH/AHA |
|
Product Code | Rated Current(A) |
AHA06N3PEFMP3.1(S) | 630 AHA08N3PEFMP3.1(S) | 800 AHA10N3PEFMP3.1(S) | 1000 AHA12N3PEFMP3.1(S) | 1250 AHA16N3PEFMP3.1(S) | 1600 AHA20N3PEFMP3.1(S) | 2000 AHA25N3PEFMP3.1(S) | 2500 |
|
Breaking Capacity lcu=lcs=lcw (1sec) |
50kA |
|
Number of Poles |
3 |
|
Intelligent Release |
Micropro 3.1 |
|
Version |
Fixed |
|
Type of Operation |
Electrical |
|
Terminal Type |
Horizontal upto 2500A & Vertical for 3200A~6300A |
|
Auxiliary Switch Contacts |
5NO+5NC |
|
Release Type |
Microprocessor |
|
Warranty |
1 Year |
