Bosch Metal Ceiling Speaker 6W LBD0606/10
Product Description
-
The LBD 0606/10 is a general purpose,6W,costeffective ceiling loudspeaker
-
The loudspeaker can be used for reproducing music as well as speech
-

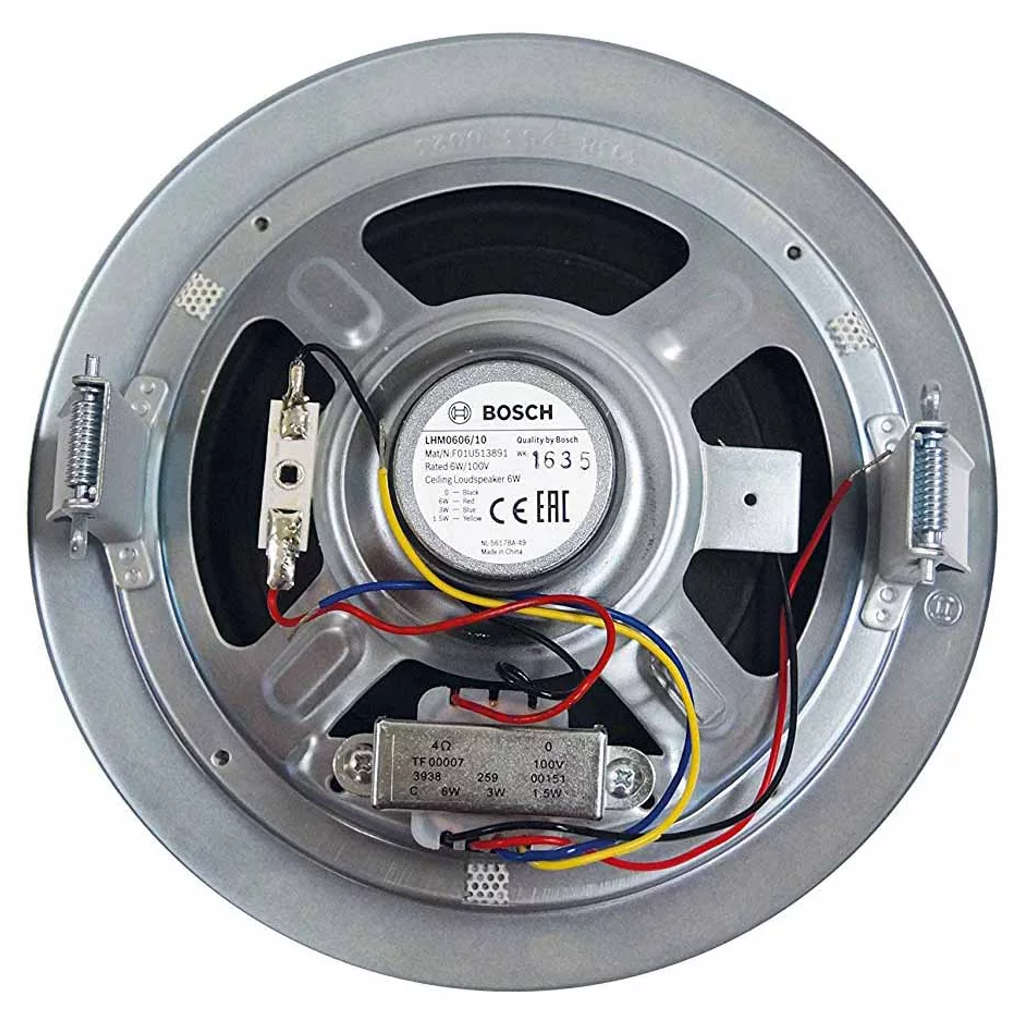

The speaker assembly consists of a single-piece,6W dual cone loudspeaker and frame,with a 100V,
matching transformer mounted on the back -
The wide frequency range means better speech and music reproduction
-
Ceiling speakers are supplied with a 100 V matching transformer with taps on the primary winding for full-power,half-power,quarter-power and eighth-power radiation
-
The LBD0606/10 has integral spring clamps on the rear which can be used to easily fix the
loudspeaker into the false ceiling -
A circular metal grille is an integrated part of the front
-
The appearance and neutral white color has been selected to be unobtrusive in virtually all interiors
-
The metal grille can be painted to any color to match the background
-
Features
-
Suitable for speech and music reproduction
-
Flush-mounting in ceiling cavity
-
Easy to install
-
Simple power setting
-
Unobtrusive in virtually all interiors
Product Specification
| Brand | Bosch |
| Product Type | Ceiling Speaker |
| Product Model | LBD0606/10 |
| Electrical | |
| Maximum Power | 8W |
| Rated Power | 6W |
| Sound Pressure Level At 6 W / 1 W ( 1 KHz at 1m) | 108.8 dB / 90.8 dB (SPL) |
| Effective Frequency Range (-10 dB) | 150 Hz - 15 KHz |
| Opening Angle At 1 KHz / 4 KHz (-6 dB) | 180° / 45° |
| Rated Voltage | 70 V to 100 V |
| Rated Impedance | 1667 ohm |
| Environmental | |
| Operating Temperature | -25 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Mechanics | |
| Diameter | 210 mm |
| Maximum Depth | 70 mm |
| Boby Material | Metal |
| Colour | White |
| Warranty | As Per Manufacturer Terms And Conditions |
Other Details
| Dimension (CM) LxWxH | 22 x 22 x 10 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.750 kg |
| Generic Name | Ceiling Speakers |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country Of Origin | India |
Original: $12.01
-70%$12.01
$3.60
