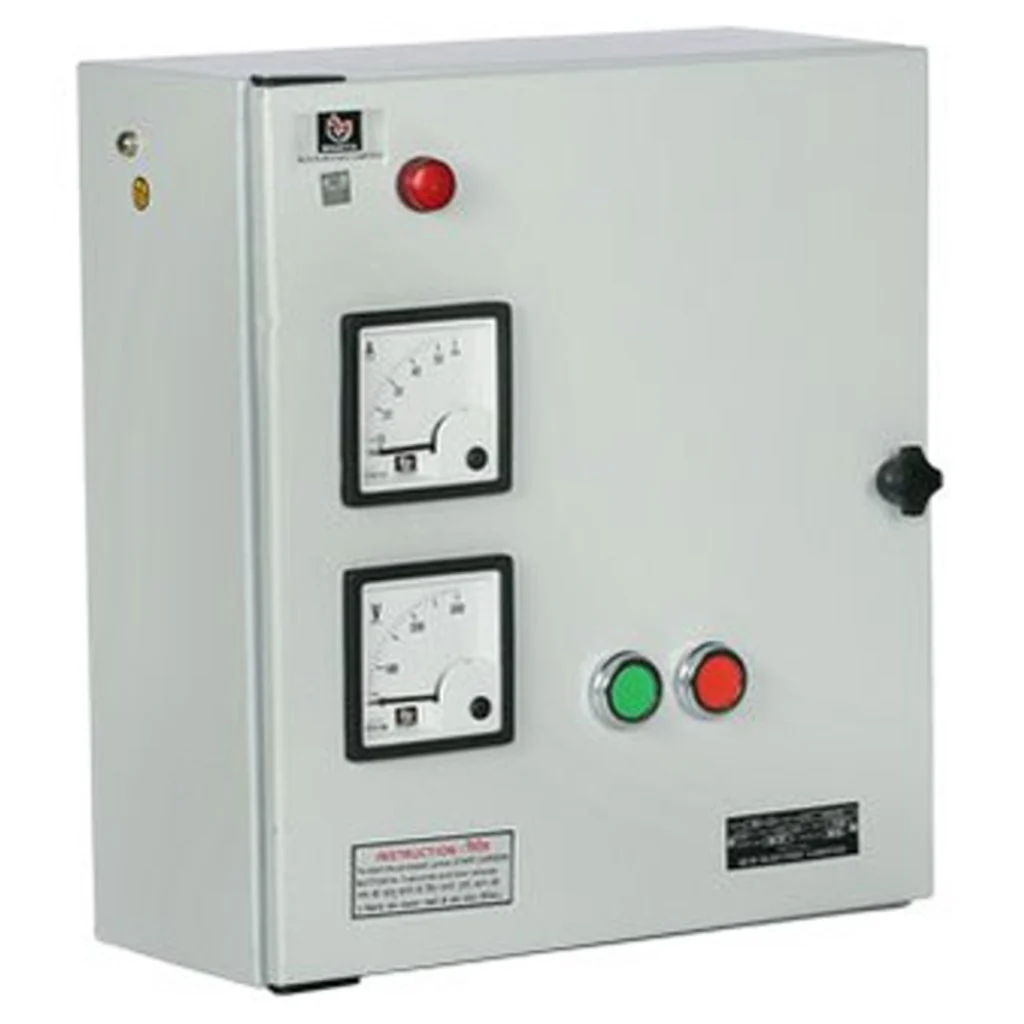

BCH SPS Motor Starter With 160-220V AC Coil 1 Phase 8.9-13.5 16A

Product Description

• 1-Phase SPS With 2P Contactor + Overload Relay (Ammeter + Voltmeter)

• Single Phase SPS with Mini DOL upto 11-20 Amp relay range for Oil Cooled Submersible Pumps

• Single Phase SPS with 2 pole Contactor and Relay upto 23-32 Amp relay range for Water Cooled Submersible Pumps

• Wide range of variants to serve the needs of all customers

• Wide band encapsulated coil ( 160-220VAC)

• Complete isolation of supply to motor when starter is off

• Provision fro dry run protection

• *Actual product image may vary from that shown on the picture

Product Specification

Brand	BCH
Product Type	Motor Starter
Product Code | Run Capacitor(mfd) | Start Capacitor(mfd)	CPNSKBW-SP | 50 | 120/150 CPNSKBW-RC30SC120 | 30 | 100/120 CPNSKBW-RC36SC120 | 36 | 100/120 CPNSKBW-SP(RC36) | 36 | 120/150 CPNSKBW-SP(RC72) | 36+36 | 120/150 CPNSKBW-RC50-SC200 | 50 | 150/200
HP At 1Ø, 220V, 50Hz	1.5 HP
Overload Relay Range(A)	8.9 - 13.5
Contactor Rating	16 Amp
No Of Phase	1 Phase
Note	Actual product image may vary from that shown on the picture
Warranty	As Per Manufacturer Terms and Conditions
