BCH Photoelectric Sensor With Diffuse Scan 18mm

Product Description

• Wide range of outputs

• Built in Short circuit & polarity reversal protection

• Sensitivity adjustment thru trimmer

• DC 4-W Output

• LED Indication

• Prewired With 2m Cable

• IP 67, CE Compliance

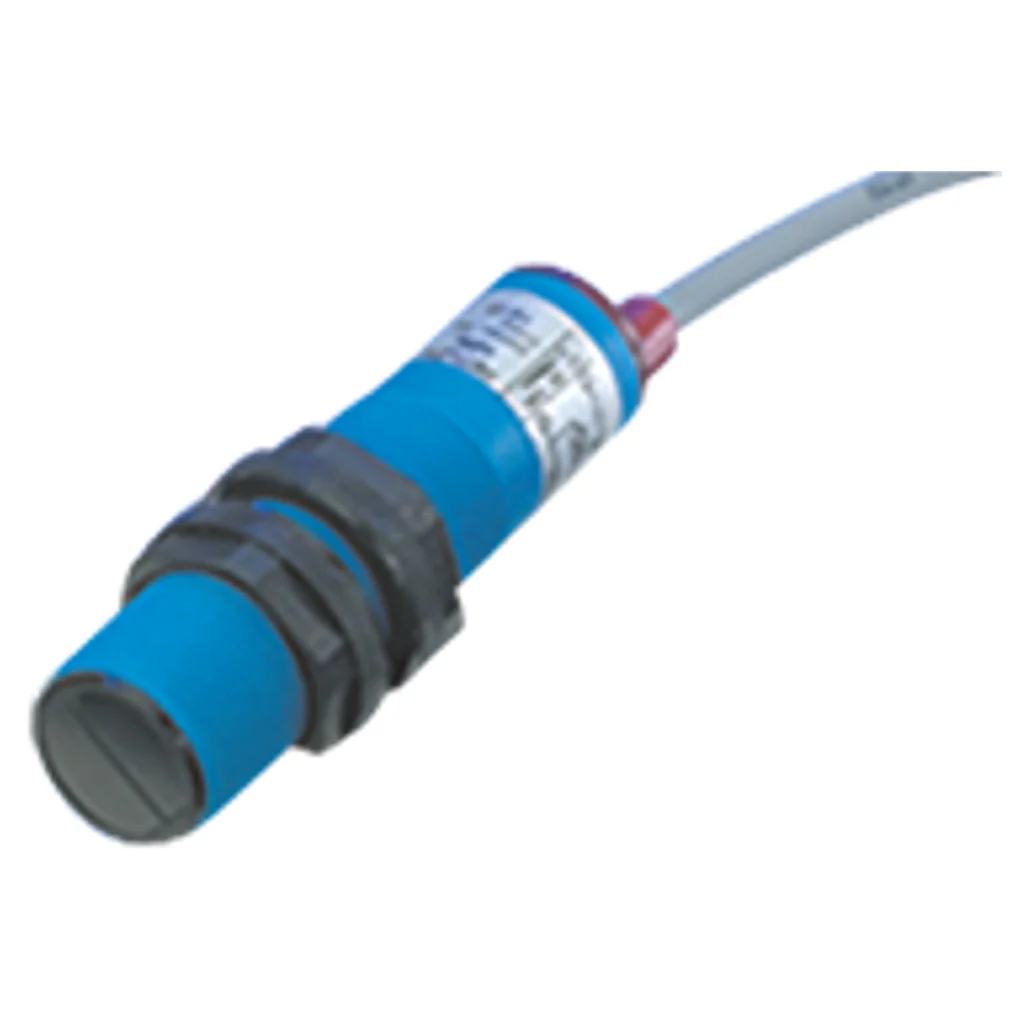

• *Actual product image may vary from that shown on the picture

Product Specification

Brand	BCH
Product Type	Photoelectric Sensor
Product Code | Output	DPHE18D2N11 | NPN-NO+NC DPHE18D2P11 | PNP-NO+NC
Diameter	18 mm
Nominal Sensing Distance	200 mm
Maximum Load	200 mA
Nominal Voltage	12-30V DC
Mode	Diffuse Scan
Size	M18 cylindrical
Warranty	As Per Manufacturer Terms and Conditions
