BCH Non Flush Version Inductive Proximity Switch With 3 Wire Output M12 Connector 30mm

Product Description

High switching capacity
Wide range of outputs
Voltages DC
Status LED Indication
Built in Short circuit protection
IP 67, CE Marked

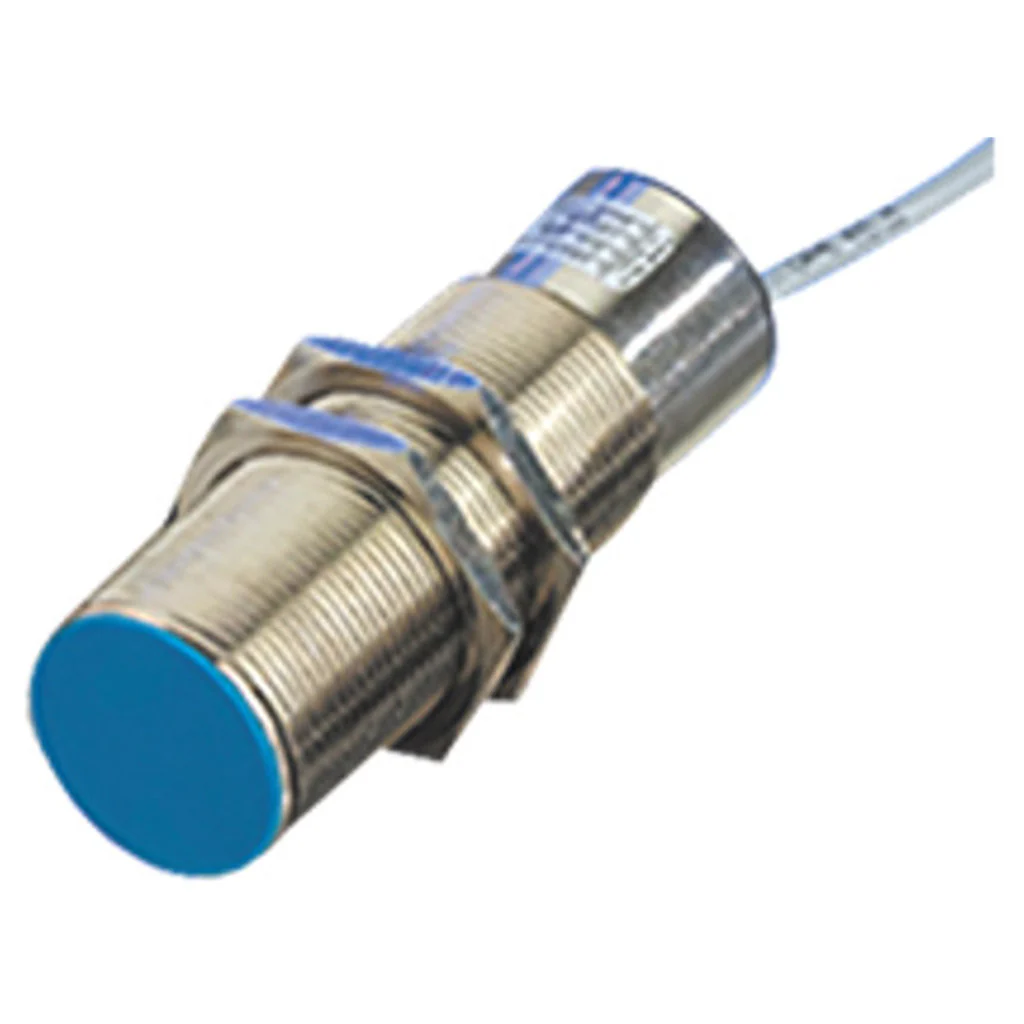

*Actual product image may vary from that shown on the picture

Product Specification

Brand	BCH
Product Type	Proximity Switch
Product Code \| Output	DINE30NP10K \| PNP-NO DINE30NN10K \| NPN-NO
Diameter	30 mm
Nominal Sensing Distance	15 mm
Maximum Load	400 mA
Nominal Voltage	12-30V DC
Connector Size	M12 Connector
Version Type	Non Flush Version
No Of Wire Output	3 Wire Output
Warranty	As Per Manufacturer Terms and Conditions
