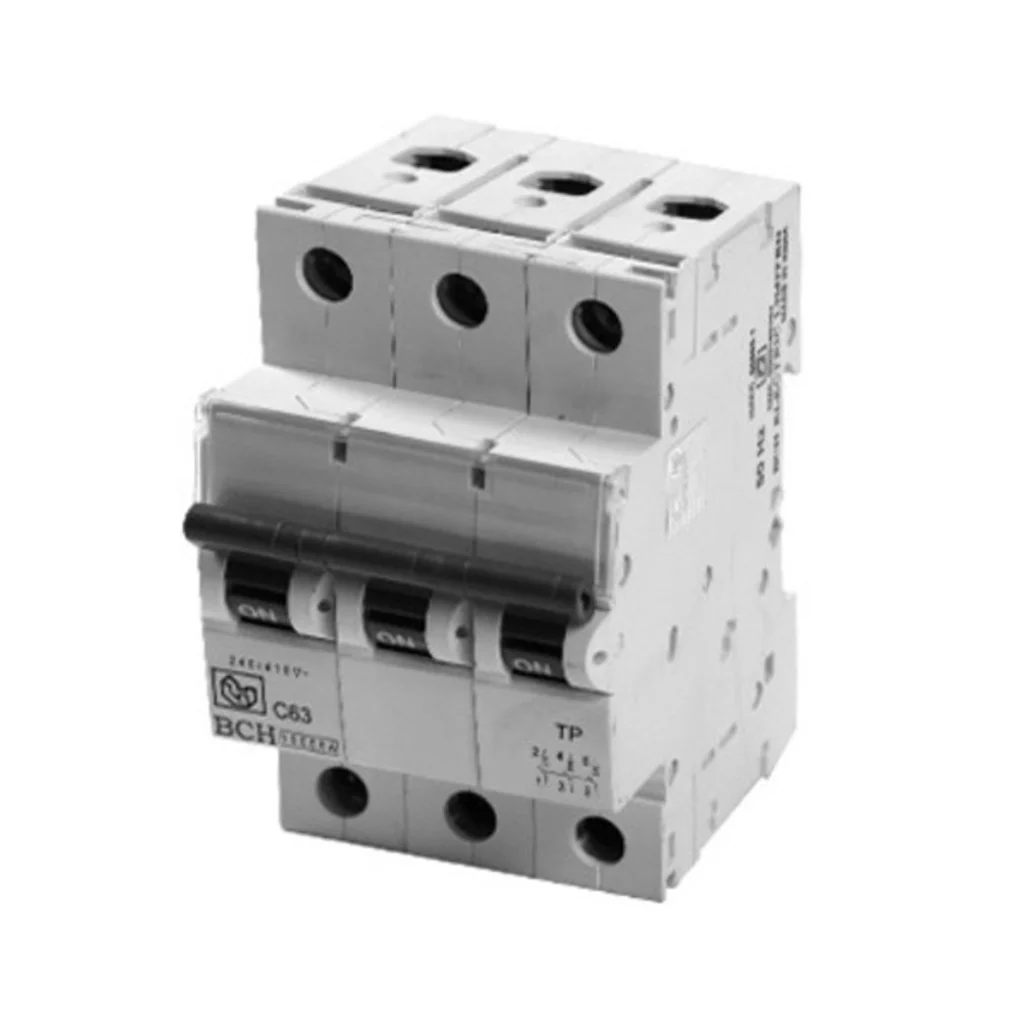

BCH B Curve MCB Three Pole 6A-63A
Product Description
-
Line Load interchangeability
-
suitable For isolation
-
Suitable for IT systems
-
Current limiting design
-
Possibility of bus bar termination at both ends
-
45mm panel cutout,suitable For standard MCB distribution boards
Product Specification
|
Brand |
BCH |
|
Product Type |
Miniature Circuit Breaker(MCB) |
|
Product Code | Rated Current (A) |
BCHX10TPB06 | 06 BCHX10TPB10 | 10 BCHX10TPB16 | 16 BCHX10TPB20 | 20 BCHX10TPB25 | 25 BCHX10TPB32 | 32 BCHX10TPB40 | 40 BCHX10TPB50 | 50 BCHX10TPB63 | 63 |
|
Breaking Capacity |
10 kA |
|
Poles |
Three Pole |
|
Insulation Voltage |
690 V |
|
Impulse withstand |
4kV |
|
Magnetic Tripping Curve |
B Type |
|
Standards |
IS/IEC 60898-1 |
|
Operating Temprature Range |
-5 to +40 degree |
|
Electrical Durability |
Up to 4000 operations |
|
Mechanical Durability |
Up to 10000 operations |
Original: $10.28
-70%$10.28
$3.08
Description
Product Description
-
Line Load interchangeability
-
suitable For isolation
-
Suitable for IT systems
-
Current limiting design
-
Possibility of bus bar termination at both ends
-
45mm panel cutout,suitable For standard MCB distribution boards
Product Specification
|
Brand |
BCH |
|
Product Type |
Miniature Circuit Breaker(MCB) |
|
Product Code | Rated Current (A) |
BCHX10TPB06 | 06 BCHX10TPB10 | 10 BCHX10TPB16 | 16 BCHX10TPB20 | 20 BCHX10TPB25 | 25 BCHX10TPB32 | 32 BCHX10TPB40 | 40 BCHX10TPB50 | 50 BCHX10TPB63 | 63 |
|
Breaking Capacity |
10 kA |
|
Poles |
Three Pole |
|
Insulation Voltage |
690 V |
|
Impulse withstand |
4kV |
|
Magnetic Tripping Curve |
B Type |
|
Standards |
IS/IEC 60898-1 |
|
Operating Temprature Range |
-5 to +40 degree |
|
Electrical Durability |
Up to 4000 operations |
|
Mechanical Durability |
Up to 10000 operations |
