BCH B Curve MCB Four Pole 6A-63A

BCH B Curve MCB Four Pole 6A-63A

Product Description

Line Load interchangeability
suitable For isolation
Suitable for IT systems
Current limiting design
Possibility of bus bar termination at both ends
45mm panel cutout,suitable For standard MCB distribution boards

Product Specification

Brand	BCH
Product Type	Miniature Circuit Breaker(MCB)
Product Code \| Rated Current (A)	BCHX10FPB06 \| 06 BCHX10FPB10 \| 10 BCHX10FPB16 \| 16 BCHX10FPB20 \| 20 BCHX10FPB25 \| 25 BCHX10FPB32 \| 32 BCHX10FPB40 \| 40 BCHX10FPB50 \| 50 BCHX10FPB63 \| 63
Breaking Capacity	10 kA
Poles	Four Pole
Insulation Voltage	690 V
Impulse withstand	4kV
Magnetic Tripping Curve	B Type
Standards	IS/IEC 60898-1
Operating Temprature Range	-5 to +40 degree
Electrical Durability	Up to 4000 operations
Mechanical Durability	Up to 10000 operations

Select Product Code | Rated Current (A)

From $4.15

Original: $13.85

-70%

BCH B Curve MCB Four Pole 6A-63A—

$13.85

$4.15

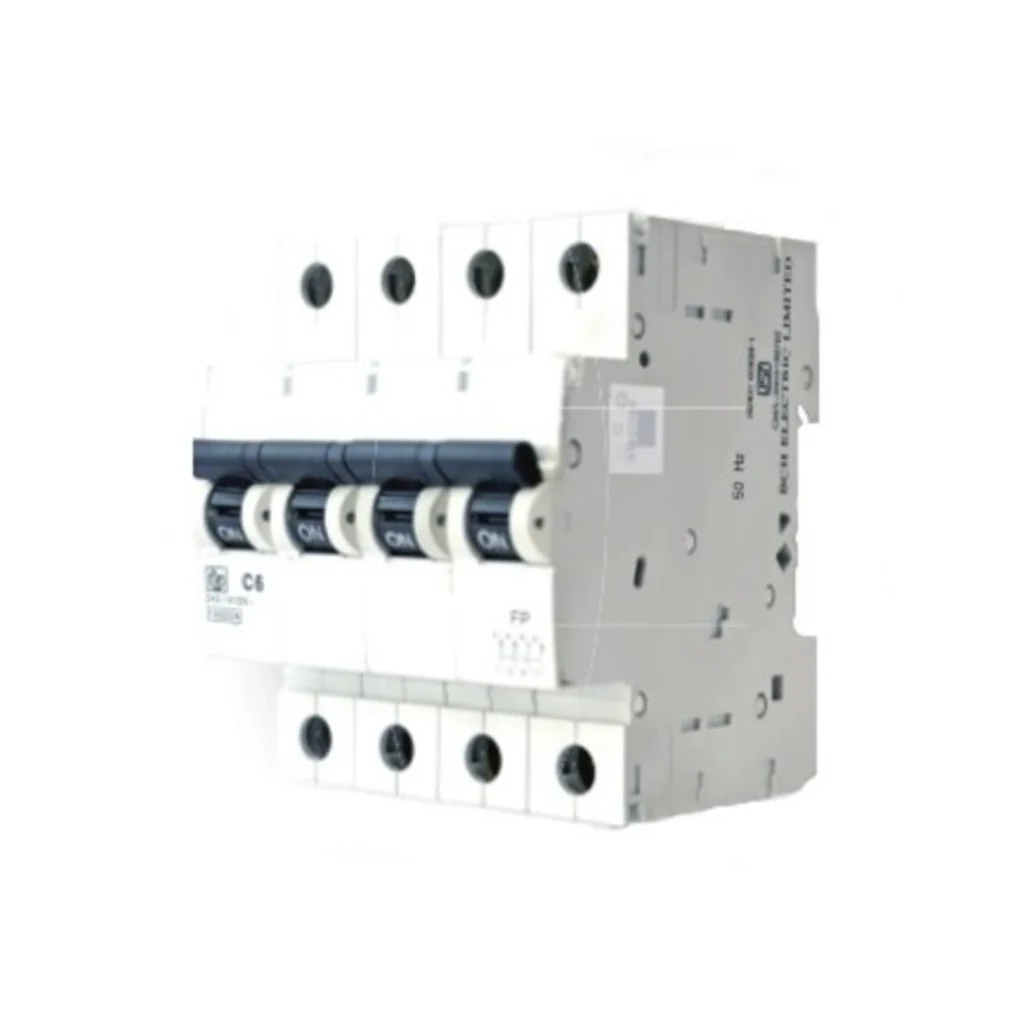

Product image 1

Description

Product Description

Line Load interchangeability
suitable For isolation
Suitable for IT systems
Current limiting design
Possibility of bus bar termination at both ends
45mm panel cutout,suitable For standard MCB distribution boards

Product Specification

Brand	BCH
Product Type	Miniature Circuit Breaker(MCB)
Product Code \| Rated Current (A)	BCHX10FPB06 \| 06 BCHX10FPB10 \| 10 BCHX10FPB16 \| 16 BCHX10FPB20 \| 20 BCHX10FPB25 \| 25 BCHX10FPB32 \| 32 BCHX10FPB40 \| 40 BCHX10FPB50 \| 50 BCHX10FPB63 \| 63
Breaking Capacity	10 kA
Poles	Four Pole
Insulation Voltage	690 V
Impulse withstand	4kV
Magnetic Tripping Curve	B Type
Standards	IS/IEC 60898-1
Operating Temprature Range	-5 to +40 degree
Electrical Durability	Up to 4000 operations
Mechanical Durability	Up to 10000 operations
