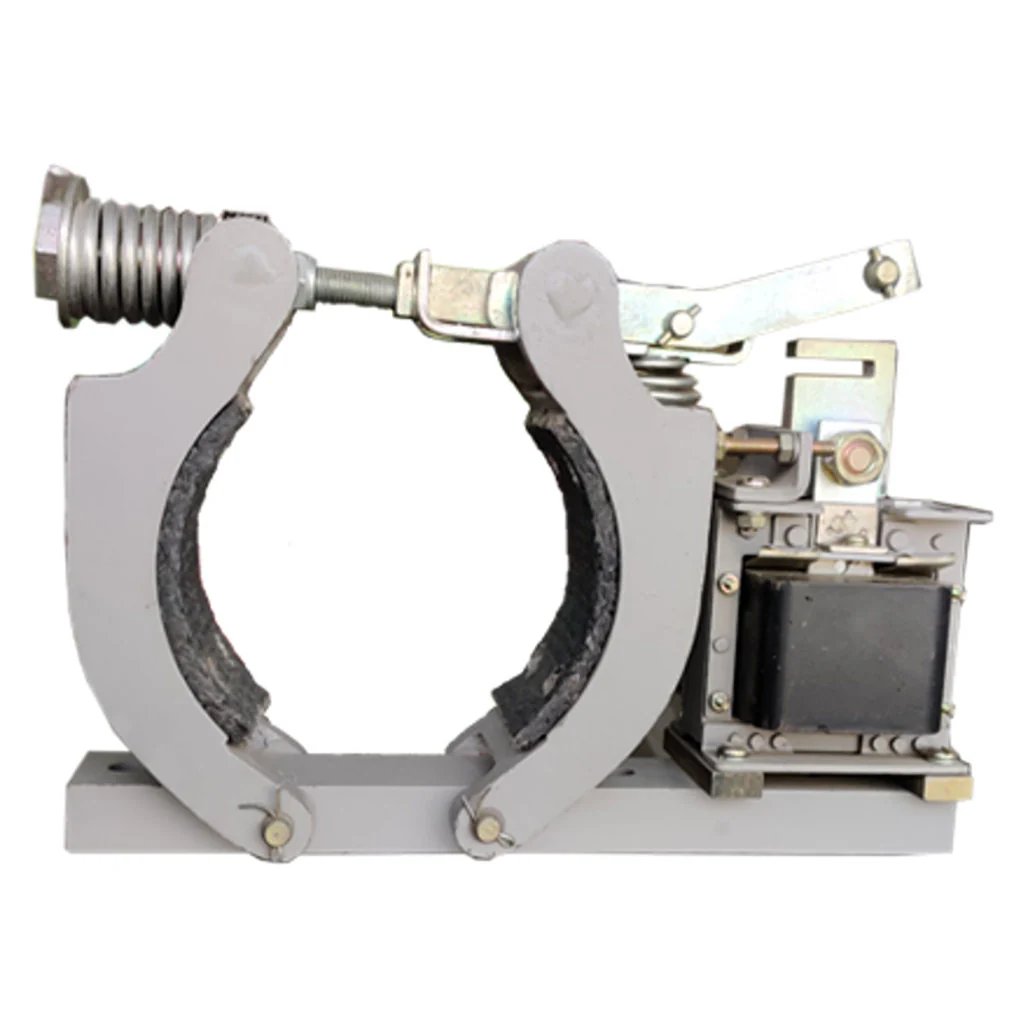

BCH AC Solenoid Brake Continuous 34Nm
Product Description
-
Neoprene shock absorber -increases life of solenoid
-
Hardened steel lever & spring gland reduces wear at the pins & all other points of contacts
-
Easy lining replacement
-
Replacement of solenoid without disturbing brake adjustment
Product Specification
|
Brand |
BCH |
|
Product Type |
AC Solenoid Brake |
|
Product Code | Coil Voltage |
S-51A | 110 AC S-51B | 220 AC S-51M | 415 AC |
|
Type |
S Type |
|
Brake Type |
S-5 |
|
Wheel Diameter |
5.5 Inch,139.7 mm |
|
Maximum Torque |
25 Lb. Ft,34 Nm |
|
Duty(Brake) |
Continuous |
|
Warranty |
As Per Manufacturer Terms and Condition |
Description
Product Description
-
Neoprene shock absorber -increases life of solenoid
-
Hardened steel lever & spring gland reduces wear at the pins & all other points of contacts
-
Easy lining replacement
-
Replacement of solenoid without disturbing brake adjustment
Product Specification
|
Brand |
BCH |
|
Product Type |
AC Solenoid Brake |
|
Product Code | Coil Voltage |
S-51A | 110 AC S-51B | 220 AC S-51M | 415 AC |
|
Type |
S Type |
|
Brake Type |
S-5 |
|
Wheel Diameter |
5.5 Inch,139.7 mm |
|
Maximum Torque |
25 Lb. Ft,34 Nm |
|
Duty(Brake) |
Continuous |
|
Warranty |
As Per Manufacturer Terms and Condition |
