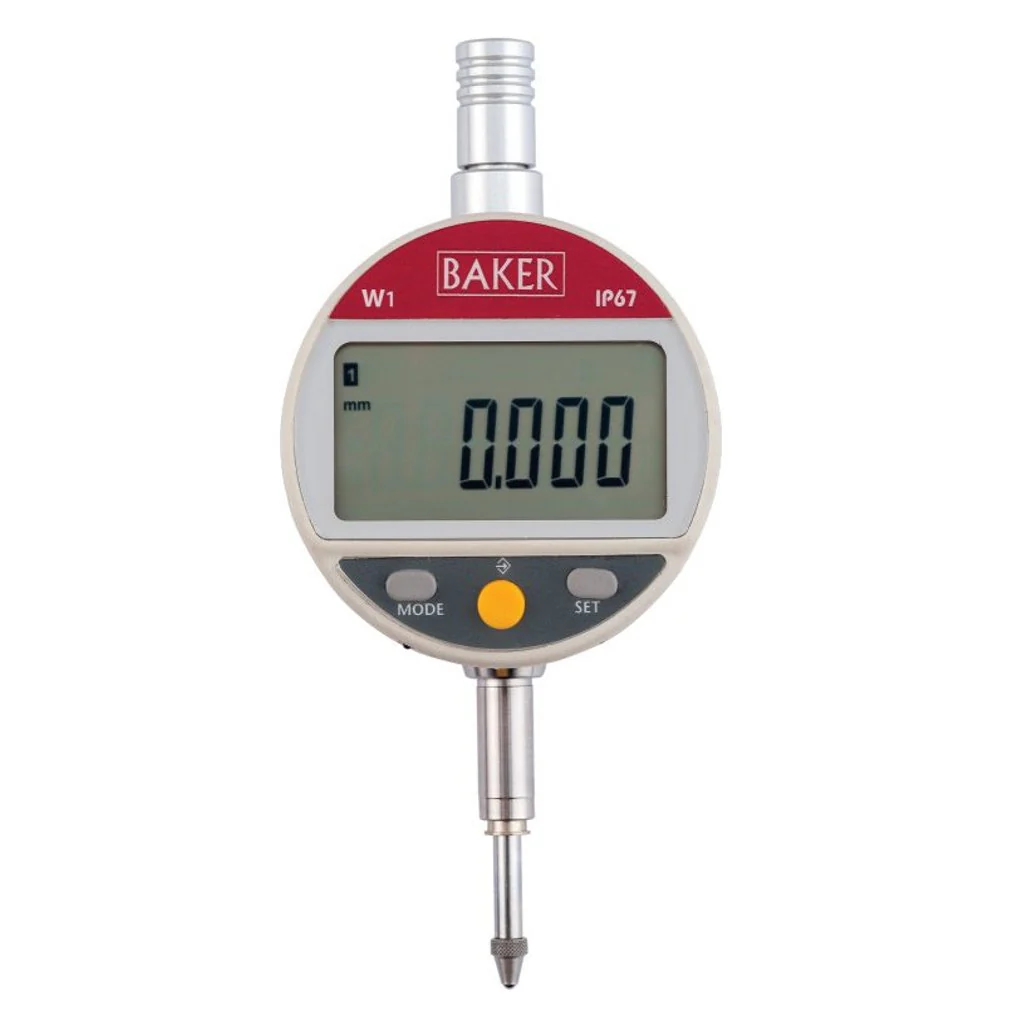

Baker Digital Dial Gauge IP67 W1

Product Description

• WATERPROOF – IP67 DIGITAL plunger dial, 0.001mm/0.00005inch reading, rotating display 270Deg. Automatic wake up & sleep mode, Rs232 output, Hardened & ground SS plunger & stem

• Rotating display (270 degrees ) with extra large digits for excellent visibility

• Accurate Inductive measuring system

• Inch / Metric capability

• Robust Construction

• New technology with configurable menus.

• Broad Choice of Menus (MIN / MAX / DELTA, TOL, Factor, PRESET, AUTO OFF etc.)

• Automatic wake-up and sleep mode

• RS232 data output

• Hardened and ground stainless steel plunger and stem

• GAUGE can be set to 0.01 mm / 0.0005 Inch, besides the standard 0.001 mm / 0.00005 Inch

• Each GAUGE carries a calibration certificate giving actual values

Product Specification

Brand	Baker
Product Type	Digital Dial Gauge
Part Number	W1
Series	W Series
Reading	0.001 mm/0.00005 Inch
Range	0-12.5 mm/0-0.5 Inch
Accuracy	0.003 mm
Repeatability	± 0.002 mm/0.0001 Inch ( ± 2s)
Measuring Force	0.65 - 0.9 N
IP Protection	IP67
Weight	90 g
Warranty	As Per Manufacturer Terms And Conditions
