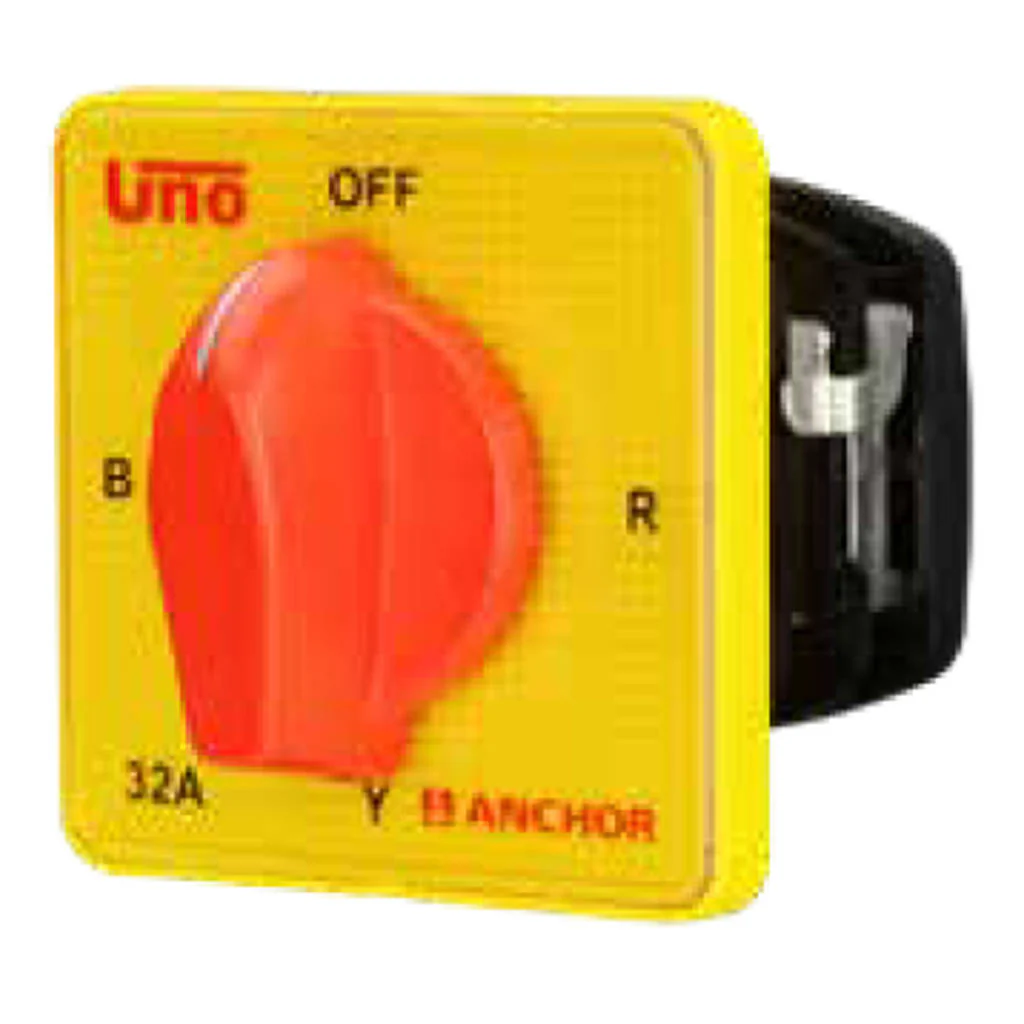

Anchor UNO Phase Selector Rotary Switch
Product Description
-
It consists of three (single phase) change over switches, each connected to one of the three phases
-
The single phase loads are distributed over the three outgoing phase connections
-
It helps to fight the common problem of Phase Cut in a three phase connection having single phase loads(load is distributed over the three phases)
-
Features
-
Compact & Space Saving Design
-
Protection from Overload & Short-Circuit
-
Completely Shock Proof Design
-
Breaking Capacity (3kA)
-
Power Supply Indication
-
Easy Installation
Product Specification
|
Brand |
Anchor |
|||
|
Product Type |
Rotary Switch |
|||
|
Series |
UNO |
|||
|
Product Code | Rated Current |
98651 | 25 A 98652 | 32 A 98653 | 40 A 98654 | 63 A |
|||
|
Current Rating |
25A |
32A |
40A |
63A |
|
Operational Voltage |
440V |
440V |
440V |
440V |
|
Operational Current A.C. |
25A |
32A |
40A |
63A |
|
Utilisation Category |
AC-23 |
AC-23 |
AC-23 |
AC-23 |
|
Dielectric Strength |
2.5 kV |
2.5 kV |
2.5 kV |
2.5 kV |
|
Insulation Resistance |
≥500 MΩ |
≥500 MΩ |
≥500 MΩ |
≥500 MΩ |
|
Standerd Mounting 4 Hole |
M5-49.5 ctc |
M5-49.5 ctc |
M5-48.0 ctc M5-48.0 ctc |
M5-68.0 ctc M5-68.0 ctc |
|
Escutcheon Plate |
75 X 75 mm |
75 X 75 mm |
90 X 90 mm |
90 X 90 mm |
|
Mechanical Life (Operation) |
1,00,000 |
1,00,000 |
1,00,000 |
1,00,000 |
|
Electrical Life (Operation) |
30,000 |
30,000 |
30,000 |
30,000 |
|
Warranty |
As Per Manufacturer Terms & Conditions |
|||
Original: $8.87
-70%$8.87
$2.66
