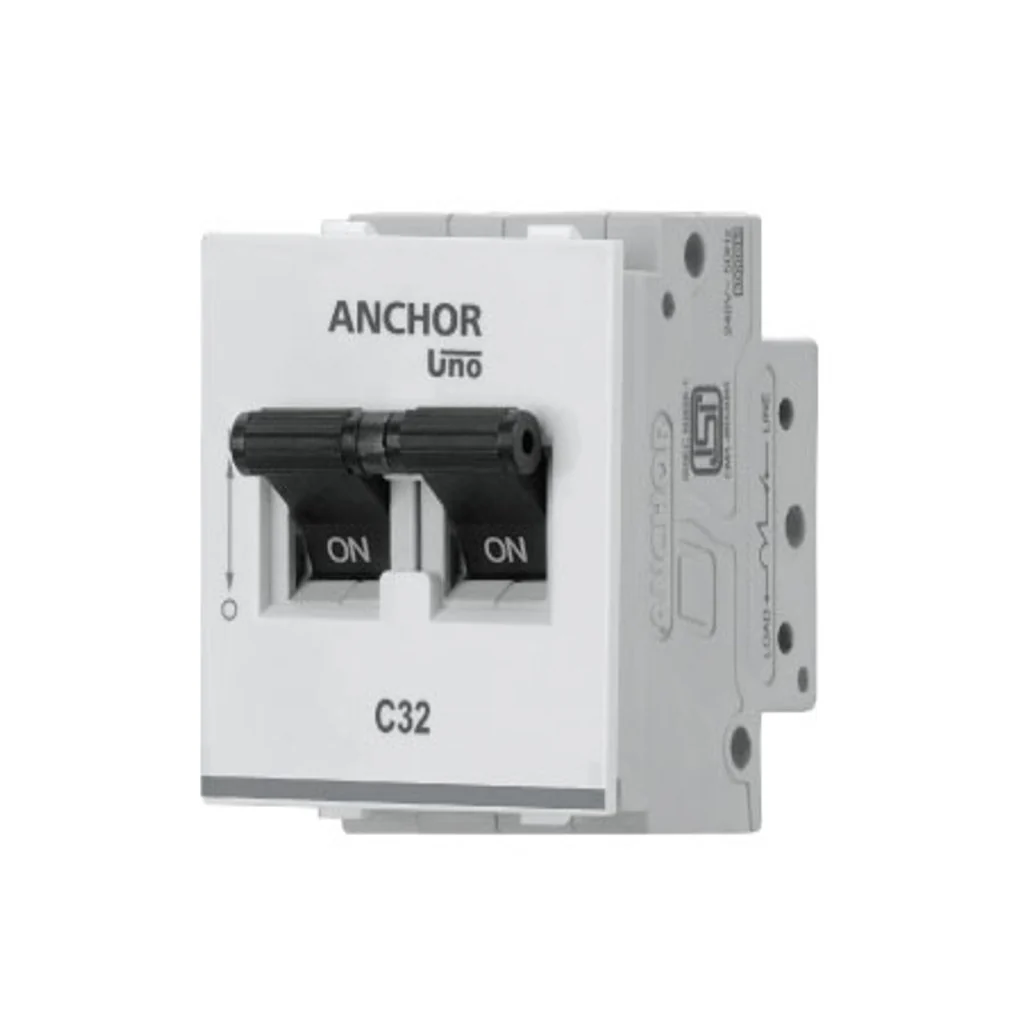

Anchor Uno Mini Modular Double Pole MCB C TYPE 6A-32A
Product Description
-
This compact and reliable range of MINI MCBs is available with two unique mounting choices-modular and flush mounted (Screw mounted), ensuring operational safety of precious appliances is the foremost objective of UNO MlNl-MCB range
-
It thus offers undeterred protection from overload and short-circuit, securing the precious appliances by increasing their operational longevity
Product Specification
|
Brand |
Anchor |
|
Product Type |
Mini MCB |
|
Series |
Uno |
|
Product Code | Rated Current |
89986 | 6A 89987 | 10A 89988 | 16A 89989 | 20A 89990 | 25A 89991 | 32A |
|
No Of Poles |
2 |
|
Applicable Standard |
IS/IEC 60898-1:2002 |
|
Tripping Characteristics |
"C" Curve |
|
Rated Short-Circuiting Capacity(Icn) |
3000A(3kA) |
|
Rated Voltage(Ue) |
240V AC |
|
Rated Frequency (f) |
50Hz |
|
Wattage Loss |
As per IS/IEC standards |
|
Mounting |
Snap fit/Screw mounted(on board) |
|
Protection Class |
IP20 |
|
Suitable For Protection |
Per point protection |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Original: $7.03
-70%$7.03
$2.11
