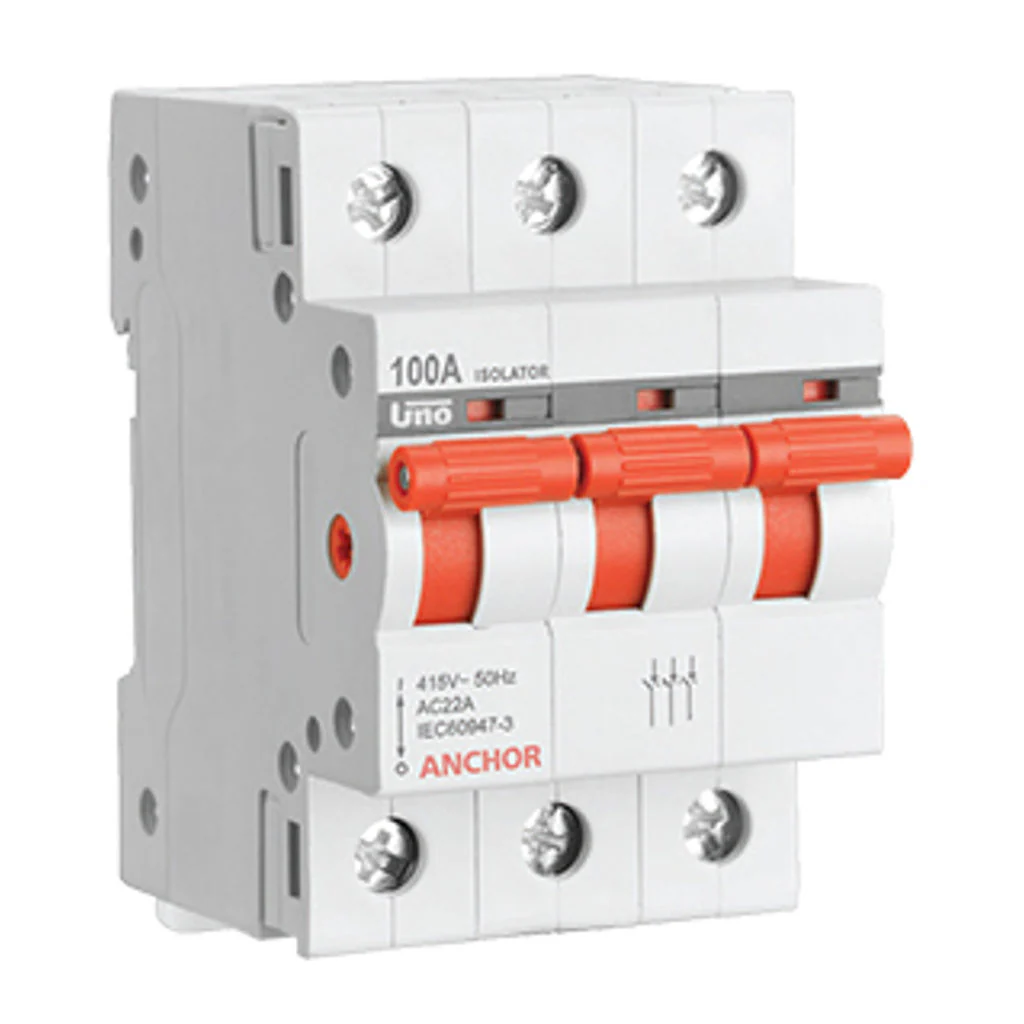

Anchor UNO Isolator 3 Poles

Product Description

• UNO isolators are perfect companions for ensuring the complete de-energisation of the electrical circuits of residences, commercial premises and also adhere to the IS/IEC 60947-3 norms

• These are equipped with Silver alloy contacts for weld-free operations and form the perfect fitments as incomers for individual residential as well as commercial premises

• The isolator ensures that there will be no current at the load side even if impulse voltage appears when the isolator is OFF

Product Specification

Brand	Anchor
Product Type	Isolator
Product Code | Current Rating(In)	98059 | 40A 98060 | 63A 98097 | 100A 98098 | 125A
Series	UNO
Standard Conformity	IS/IEC60947-3
No. of Poles	3P
Rated Voltage(Ue)	240/415V AC
Rated Frequency(f)	50Hz
Terminal Capacity	35 sq mm
Protection Class	IP20
Contact Position Indication	Red-ON & Green-OFF
Termination	Bi Connect(bus bar/cable)
Warranty	As Per Manufacturer Terms & Conditions
