Anchor UNO COS Enklozr Double Pole Changeover Switch Box
Product Description
-

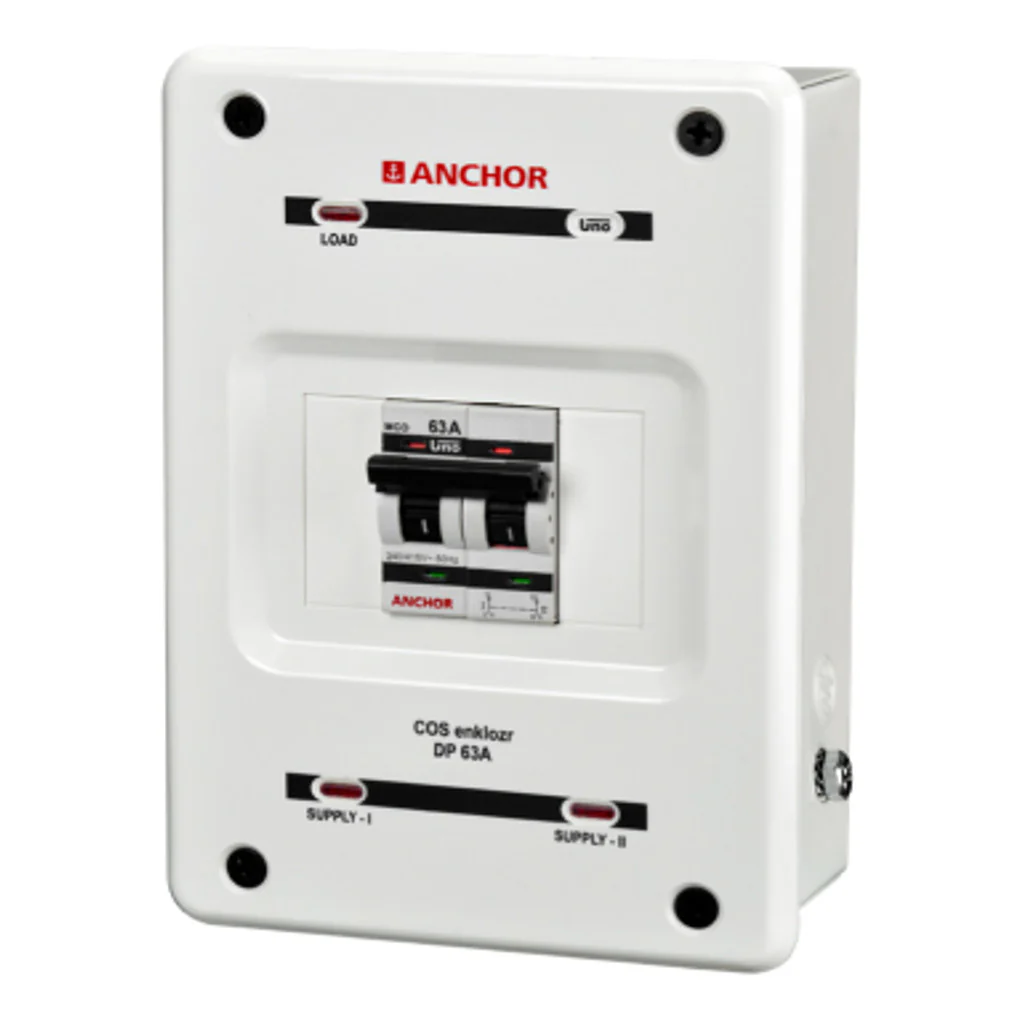

Uno COS Enklozr is a compact modular changeover switch box with sleek indications of power supply, designed to serve the purpose of change of power supply on availability of two power sources
-
Features
-
Alluring & Distinct Aesthetics
-
Sleek power supply indications- Supply-I, Supply-II & Load circuit
-
Compact & Light weight
-
Flush/surface mounting
-
IP30 protection
-
Registered Design
Product Specification
|
Brand |
Anchor |
|
Product Type |
Changeover Switch Box |
|
Product Code | Current Rating (In) |
98081enk | 25A 98082enk | 32A 98083enk | 40A 98084enk | 63A |
|
Series |
UNO |
|
No. of Poles |
DP |
|
Rated Voltage (Ue) |
240/415V~ AC |
|
Utilisation category |
AC22A |
|
Frame |
Single frame for complete range |
|
Mechanism |
Double break contact mechanism |
|
Positions |
3 position with Centre OFF ( I-O-II) |
|
Terminal capacity |
35 mm2 |
|
Indications |
Two
stage visual indication for both I and II |
|
Protection |
IP30 |
|
Mounting |
Surface / Flush mounted |
|
Weight(kg) |
0.85 |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Original: $18.07
-70%$18.07
$5.42
Description
Product Description
-
Uno COS Enklozr is a compact modular changeover switch box with sleek indications of power supply, designed to serve the purpose of change of power supply on availability of two power sources
-
Features
-
Alluring & Distinct Aesthetics
-
Sleek power supply indications- Supply-I, Supply-II & Load circuit
-
Compact & Light weight
-
Flush/surface mounting
-
IP30 protection
-
Registered Design
Product Specification
|
Brand |
Anchor |
|
Product Type |
Changeover Switch Box |
|
Product Code | Current Rating (In) |
98081enk | 25A 98082enk | 32A 98083enk | 40A 98084enk | 63A |
|
Series |
UNO |
|
No. of Poles |
DP |
|
Rated Voltage (Ue) |
240/415V~ AC |
|
Utilisation category |
AC22A |
|
Frame |
Single frame for complete range |
|
Mechanism |
Double break contact mechanism |
|
Positions |
3 position with Centre OFF ( I-O-II) |
|
Terminal capacity |
35 mm2 |
|
Indications |
Two
stage visual indication for both I and II |
|
Protection |
IP30 |
|
Mounting |
Surface / Flush mounted |
|
Weight(kg) |
0.85 |
|
Warranty |
As Per Manufacturer Terms & Conditions |
