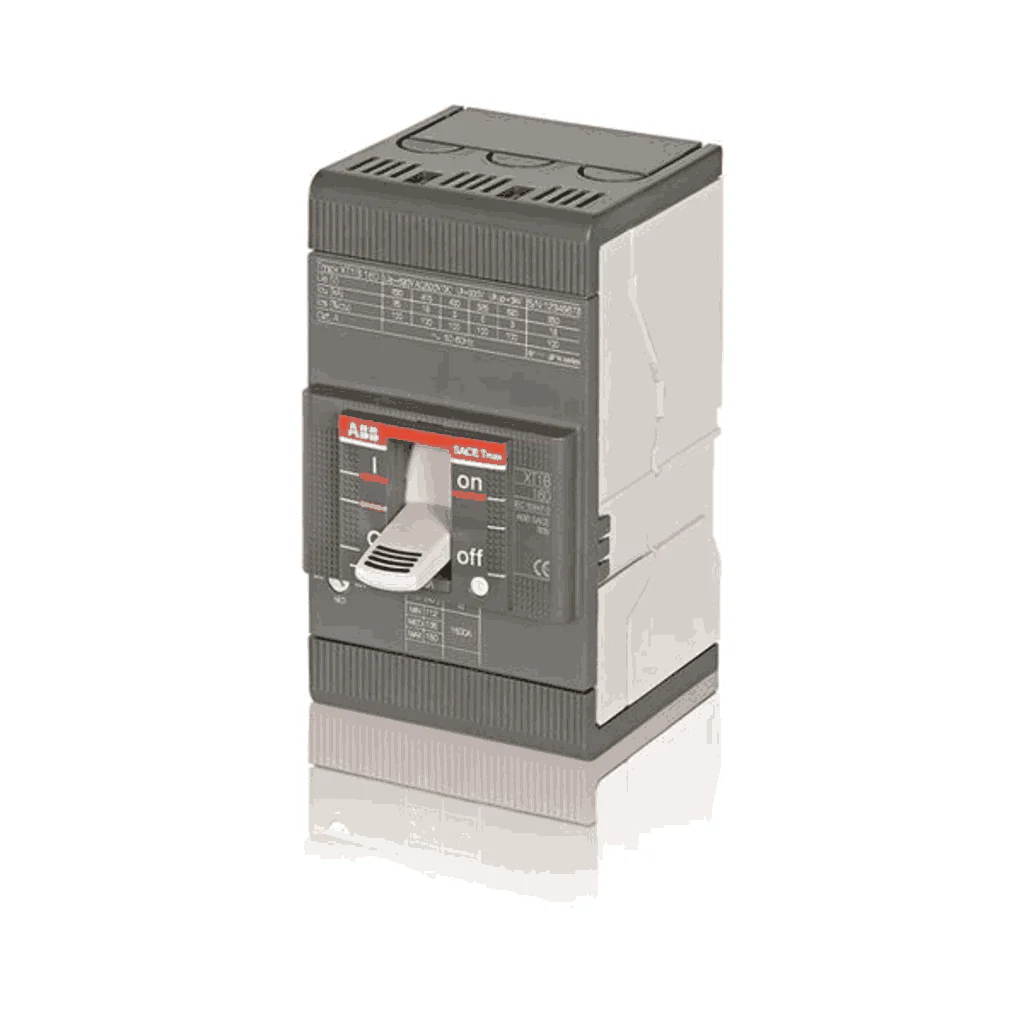

ABB XTMax MCCB 16-160 A 50 KA 415 V AC Three-Pole – XT1S 160 3p

Product Description

• C.Breaker Tmax XT1S 160 Fixed Three-Pole With Front Terminals And Thermomagnetic Release

• Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current.

• Product Net Width : 76.2 mm

• Product Net Height : 130 mm

• Product Net Depth / Length : 70 mm

• Product Net Weight : 1.1 kg

• Number of Poles : 3

• Rated Operational Voltage:690 V AC , 500 V DC

• Product Main Type : SACE Tmax XT

• Product Name : Moulded Case Circuit Breaker

• Product Type : CB

• Version : F

• Electrical Durability : 120 cycles per hour , 8000 cycle

• Mechanical Durability : Nr. Operations 240 cycles per hour, Nr. Operations 25000 cycle

• Terminal Connection Type : Fixed Circuit-Breakers Front

• Standards:IEC

Product Specification

Rated current	Type	Product id
16 A	1SDA080830R1	XT1S 160 TMF 16-450 3p F F
20 A	1SDA080831R1	XT1S 160 TMF 20-450 3p F F
25 A	1SDA080832R1	XT1S 160 TMD 25-450 3p F F
32 A	1SDA080833R1	XT1S 160 TMD 32-450 3p F F
40 A	1SDA080834R1	XT1S 160 TMD 40-450 3p F F
50 A	1SDA067431R1	XT1S 160 TMD 50-500 3p F F
63 A	1SDA067432R1	XT1S 160 TMD 63-630 3p F F
80 A	1SDA067433R1	XT1S 160 TMD 80-800 3p F F
100 A	1SDA067434R1	XT1S 160 TMD 100-1000 3p F F
125 A	1SDA067435R1	XT1S 160 TMD 125-1250 3p F F
160 A	1SDA067436R1	XT1S 160 TMD 160-1600 3p F F
