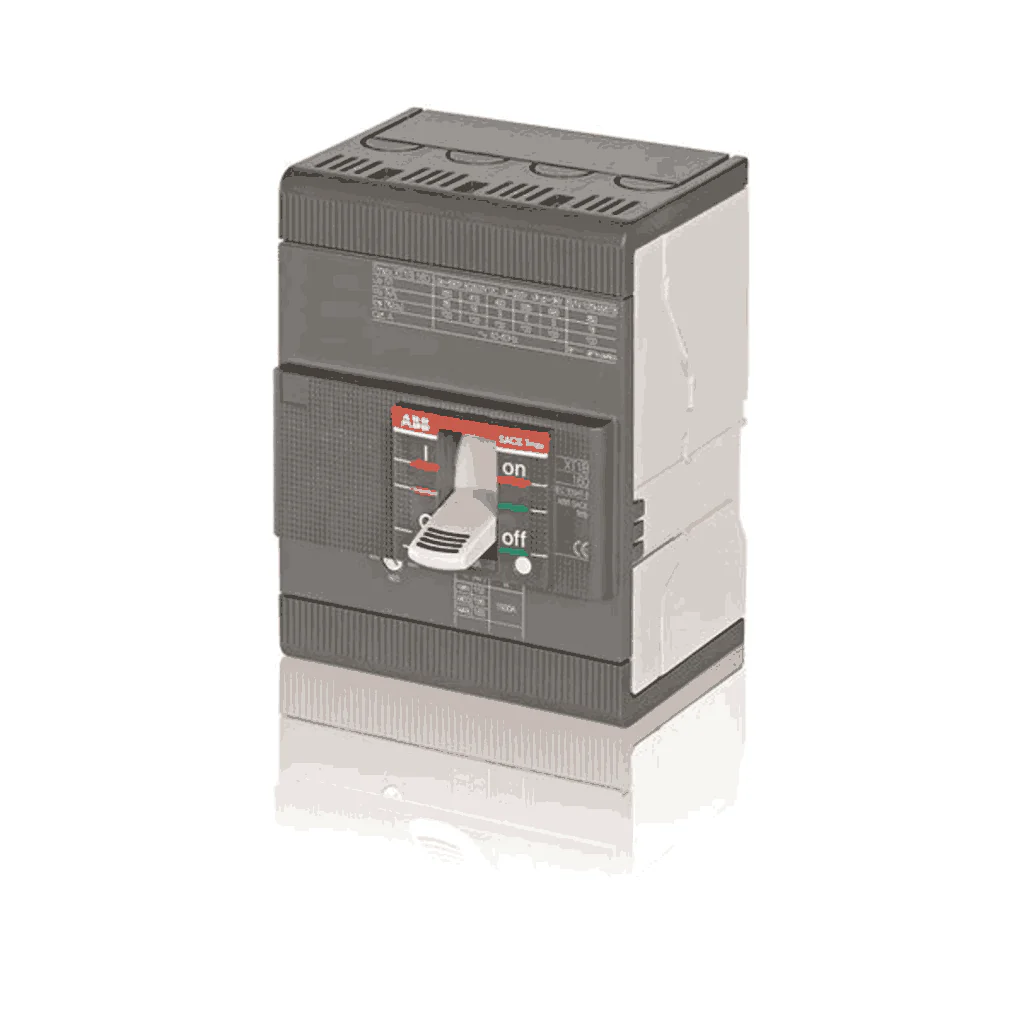

ABB XTMax MCCB 10-160A 50KA 415V AC Four-Pole – XT2S 160 Ekip 4p

Product Description

• C.Breaker Tmax XT2S 160 Fixed Four-Pole With Front Terminals And Solid-State Release In Ac EKIP-LS/I R 10 -160 A

• Tmax moulded-case circuit-breakers guarantee an extremely high performance level while being progressively smaller in size, simple to install and able to provide increasingly better safety guarantees for the operator.

• The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.

• IEC Standard

• Circuit Breaker Type to be Associated:Power distribution

• Product Net Width : 120 mm

• Product Net Height : 130 mm

• Product Net Depth / Length : 82.5 mm

• Product Net Weight : 1.6 kg

• Number of Poles : 4

• Product Main Type : SACE Tmax XT

• Product Name : Moulded Case Circuit Breaker

• Product Type : CB

• Version : F

• Electrical Durability : 8000 cycle, 120 cycles per hour

• Mechanical Durability : Nr. Operations 25000 cycle , Nr. Operations 240 cycles per hour

• Terminal Connection Type : Fixed Circuit-Breakers Front

Product Specification

Rated current	Type	Product id
10 A	1SDA067833R1	XT2S 160 Ekip LS/I In=10A 4p F F
25 A	1SDA067834R1	XT2S 160 Ekip LS/I In=25A 4p F F
63 A	1SDA067835R1	XT2S 160 Ekip LS/I In=63A 4p F F
100 A	1SDA067836R1	XT2S 160 Ekip LS/I In=100A 4p F F
160 A	1SDA067838R1	XT2S 160 Ekip LS/I In=160A 4pFF InN=100%
