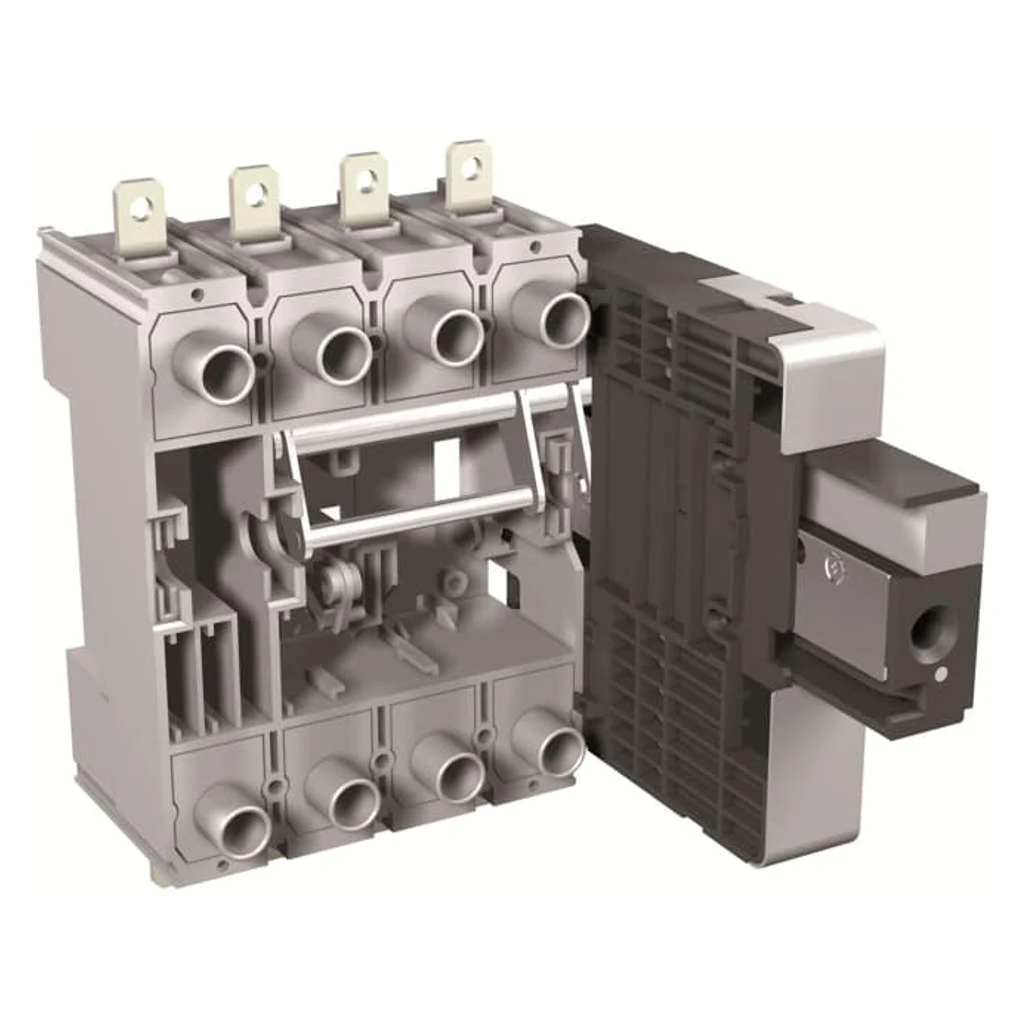

ABB XT2 W FP 4p EF Tmax Drawout Conversion Kit 1SDA068202R1
Product Specification
|
Brand |
ABB |
|
Product Type |
Drawout Conversion Kit |
|
Product Code |
1SDA068202R1 |
|
Type |
XT2 W FP 4p EF |
|
Technical |
|
|
Configuration Type |
Loose or configurable |
|
Number Of Poles |
4 |
|
Product Main Type |
Accessories for Tmax XT |
|
Rated Frequency (f) |
50 / 60 Hz |
|
Rated Impulse Withstand Voltage (Uimp) |
8 kV |
|
Rated Insulation Voltage (Ui) |
1000 V |
|
Rated Operational Voltage |
690
V AC |
|
Rated Uninterrupted Current (Iu) |
160 A |
|
Standards |
IEC 60947 |
|
Sub-type |
XT2 |
|
Suitable For |
XT2 |
|
Terminal Connection Type |
Withdrawable
Circuit-Breakers |
|
Version |
W |
|
Description |
FIXED PART WITHDRAWABLE FOR C.BREAKER TMAX FOUR-POLE WITH EXTENDED FRONT TERMINALS XT2 |
|
Dimensions |
|
|
Product Net Width |
175 mm |
|
Product Net Height |
225 mm |
|
Product Net Depth / Length |
195 mm |
|
Product Net Weight |
0.678 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $268.60
-70%$268.60
$80.58
