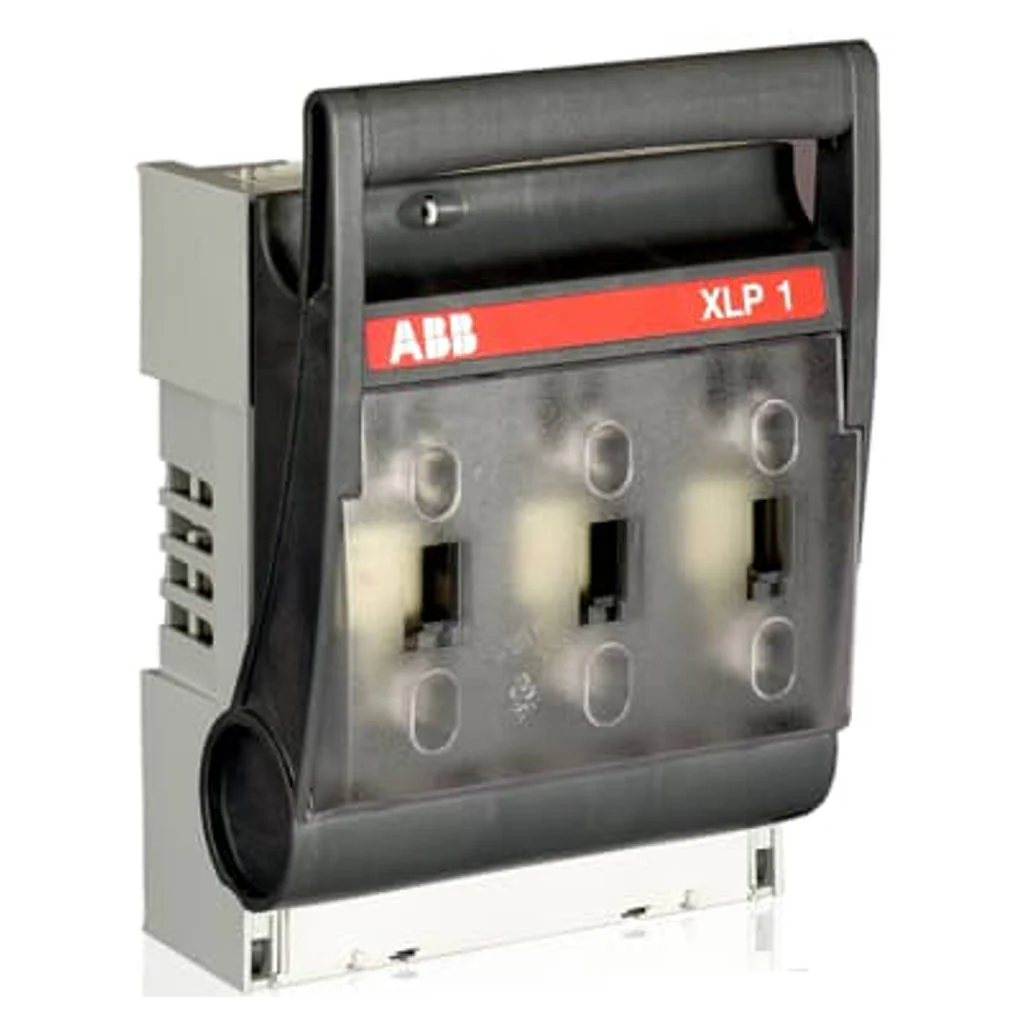

ABB XLP1-6BC Fuse Switch Disconnector 1SEP101891R0002
Product Description
-
Features
-
XLP1,3-pole,250A, incl. 6 Bridge Clamps
-
All the XLP cable terminals can be delivered with integrated bolts for cable lugs or with integrated
bridge clamps (BC) for easy direct cable connection
-
Typetested according to EN60947-3
-
Easy to recycle/EN14001 standards
-
Quick-make operation device
-
Integrated IP20 cable termination
-
IP30 Degree Of Protection from the front
-
Replacement compatible to similar types in the market
Voltage measuring from the front
-
V-0 plastic materials
-
Advantages
-
Easy to install
-
Easy to operate
-
Sturdy design
-
High personal safety
-
Wide range of cable terminals and snap-on accessories
-
Compact, add-on Electronic Fuse Monitoring (EFM)
-
Busbar adapters
-
Applications
-
UPS: Uninterruptible Power Supply, used for the power supply for computer/servers, storage devices, communication network systems, industry control systems, etc
-
Telecom power supplies
-
General protection in smaller distribution panels using 1-pole or 2-pole configurations AC or DC
Product Specification
|
Brand |
ABB |
|
Product Type |
Fuse Switch Disconnector |
|
Product Code |
1SEP101891R0002 |
|
Model |
XLP1-6BC |
|
Technical |
|
|
Rated Operational Current AC-21B (Ie) |
(690 V) 200 A |
|
Rated Operational Current AC-22B (Ie) |
(500
V) 250 A |
|
Rated Impulse Withstand Voltage (Uimp) |
Main Circuit 8 kV |
|
Rated Operational Voltage |
500
V AC |
|
Rated Frequency (f) |
Main Circuit 50/60 Hz |
|
Rated Conditional Short-Circuit Current (Inc) |
(690 V) 50 kiloampere rms |
|
Handle Type |
Front cover 3P |
|
Fuse Size |
NH1 |
|
Fuse System |
DIN |
|
Standards |
IEC60947-3 |
|
Special Functions |
Not Included |
|
Mounting Type |
Baseplate |
|
Number Of Poles |
3 |
|
Degree Of Protection |
IP30 |
|
Terminal Type |
Cable Clamp |
|
Device Type Manager (DTM) |
Fuses witch disconnector |
|
Fuse Type |
NH |
|
Electronic Fuse Monitoring |
No |
|
Dimensions |
|
|
Product Net Width |
185 mm |
|
Product Net Height |
270 mm |
|
Product Net Depth / Length |
116 mm |
|
Product Net Weight |
1.8 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $167.52
-70%$167.52
$50.26
