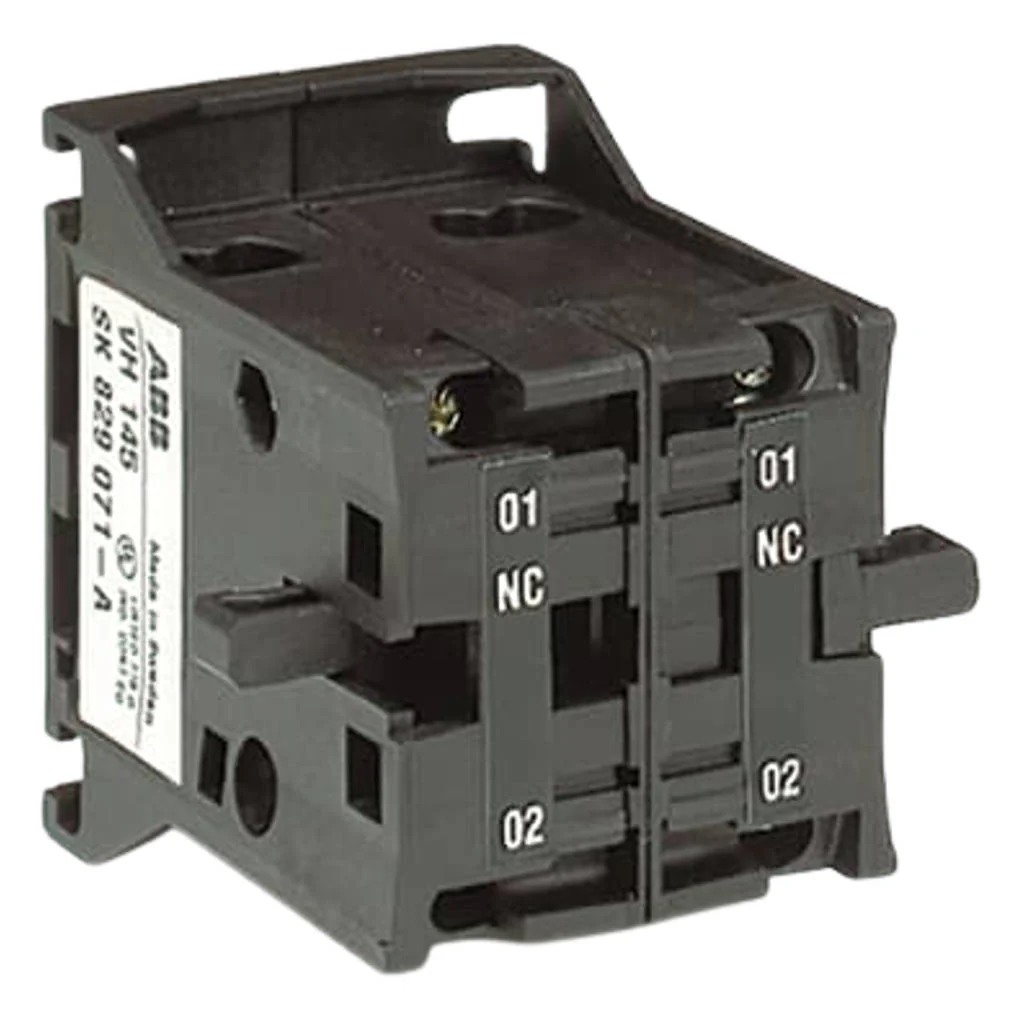

ABB VH145 Mechanical Interlock Unit SK829071-A

Brand

ABB

Product Type

Mechanical Interlock Unit

Product Code

SK829071-A

Model

VH145

Technical

Suitable For

EH-line

Suitable For Product Class

Block Contactors

Rated Insulation Voltage (U_i)

Acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

Rated Operational Current AC-15 (I_e)

(500 V) 1 A
(690 V) 1 A
(24 / 127 V) 6 A
(220 / 240 V) 6 A
(380 / 400 V) 4 A

Rated Short-Time Withstand Current (I_cw)

for 0.1 s 140 A
for 1 s 100 A

Rated Frequency (f)

Supply Circuit 50 / 60 Hz

Power Loss

at Rated Operating Conditions per Pole 0.1 W

Short-Circuit Protective Devices

Auxiliary Circuit - gG Type Fuses 10 A

Dimensions

Product Net Width

25.5 mm

Product Net Height

68 mm

Product Net Depth / Length

70 mm

Product Net Weight

0.13 kg

Warranty

As Per Manufacturer Terms and Condition
